PANEL DESCRIPTION
3-6
!1 TONE ICONS
•WhileoperatinginFM/FM-Nmode:
(pp. 17-13, 17-15)
“ TONE” appears while the Repeater Tone Encod- ➥
er is ON.
“ TSQL” appears while the Tone squelch function ➥
is ON.
“ TSQL-R” appears while the Reverse Tone ➥
squelch function is ON.
“ DTCS” appears while the DTCS squelch function ➥
is ON.
“ DTCS-R” appears while the reverse DTCS ➥
squelch function is ON.
“ ➥ S” appears with the “TSQL” or “DTCS” icon
while the Pocket Beep function (with CTCSS or
DTCS) is ON.
•WhileoperatinginDVmode: (pp. 9-19, 9-20)
“ DSQL” appears while the Digital Call Sign squelch ➥
function is ON.
“ CSQL” appears while the Digital Code squelch ➥
function is ON.
“ ➥ S” appears with the “DSQL” or “CSQL” icon
while the Pocket Beep function (with Digital Call
Sign or Digital Code squelch) is ON.
!2 CLOCK DISPLAY (p. 16-82)
Displays the current time.
!3 PRIORITY WATCH ICON (p. 14-5)
Appears when Priority Watch is in use.
!4 WEATHER ALERT ICON (p. 5-15)
Appears when the Weather alert function is ON.
!5 ATTENUATOR ICON (p. 5-11)
Appears when the attenuator is ON in the AIR band.
!6 SKIP ICON (pp. 13-7, 13-8)
“ SKIP” appears when the selected memory chan- ➥
nel is set as a skip channel.
“ PSKIP” appears when the displayed frequency is ➥
set as a skip frequency in the Memory mode.
“ PSKIP” appears while the Frequency Skip Scan ➥
function is ON in the VFO mode.
!7 MEMORY CHANNEL NUMBER
Displays the selected memory channel or bank ➥
number. (p. 12-3)
“C0” to “C3” appears when the Call channel is se- ➥
lected. (p. 12-3)
!8 MEMORY ICON (p. 12-3)
Appears when the Memory mode is selected.

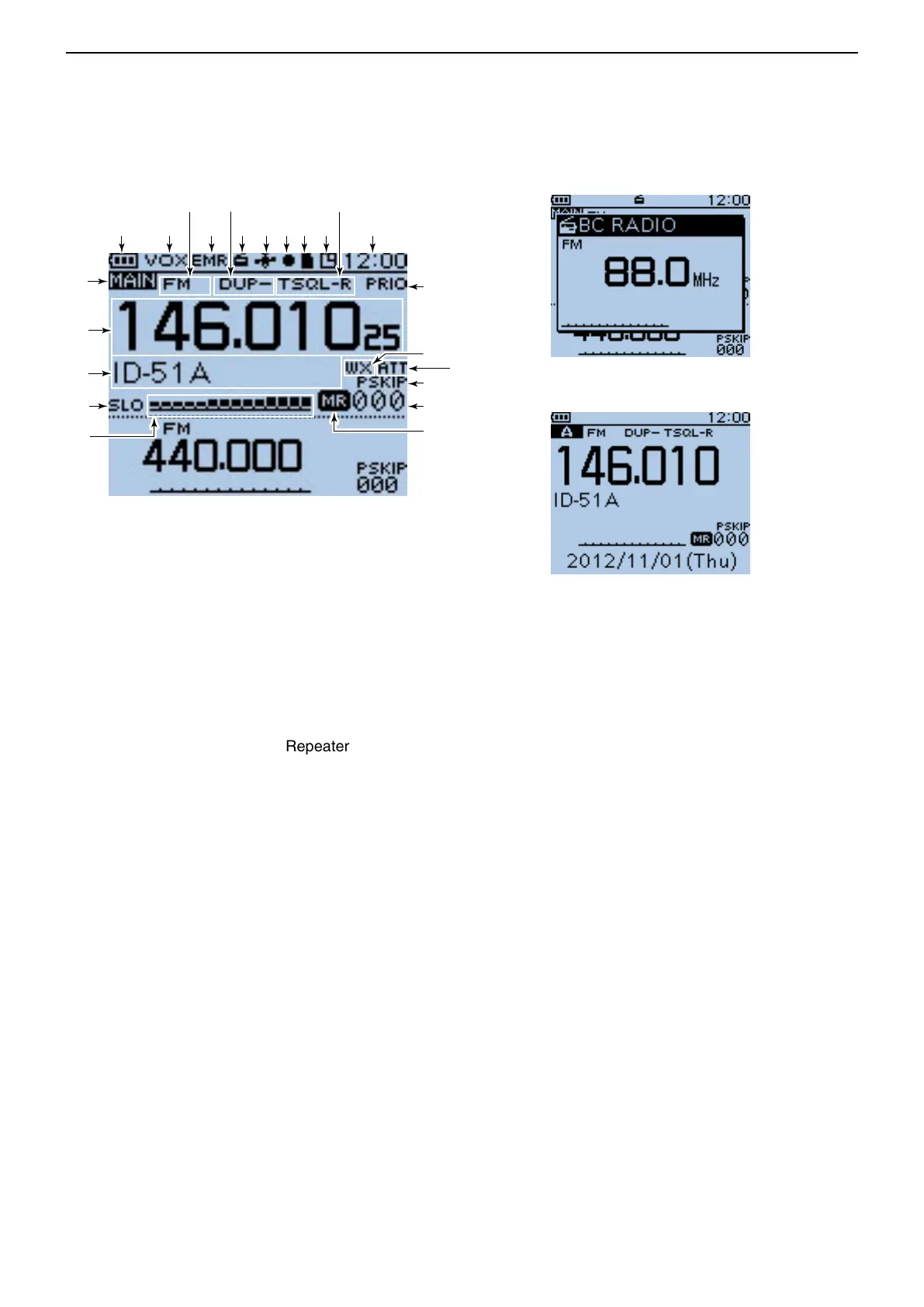

Function display (Continued) ■
Dual band display
Single band display
BC Radio setting pop-up
window (Tuning mode)
q
w r y u io !0 !2
!3
!5
!6
!7
!8
!9
@0
!1
te
@1
@2
@3
!4
