Programming IDEC SmartRelay
IDEC SmartRelay Manual 107

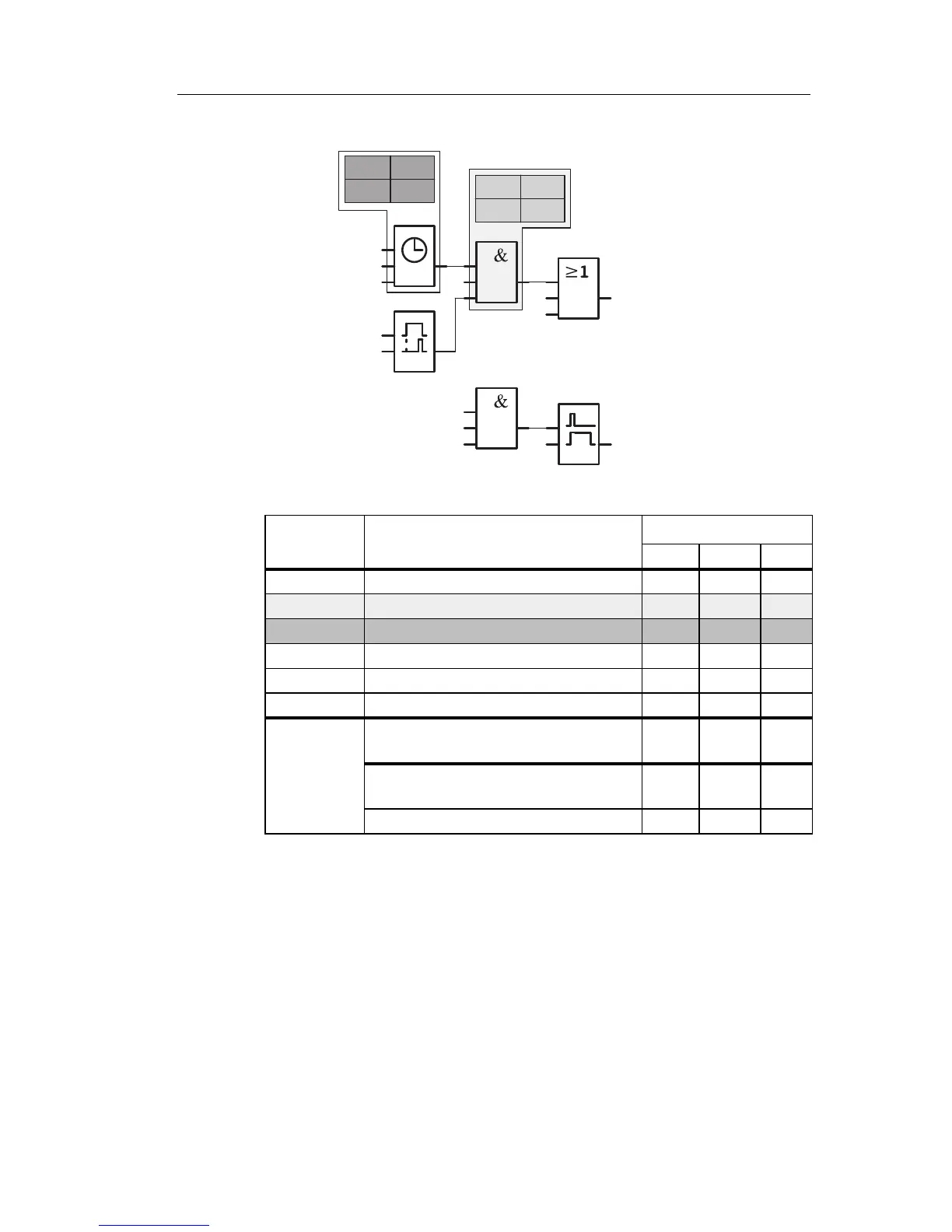

Example:
The sample circuit program contains:
*: Configured with retentivity.
This means that this circuit program fits in IDEC SmartRelay.
Bytes Blocks REM
B1 OR 12 1 -
B2 AND 12 1 -
B3 Seven-day time switch 20 1 -
B4 On-delay* 8 1 3
B5 Stairwell Light Switch 12 1 0
B6 AND 12 1 -
Resources used by the circuit
program
76 6 3
Memory space limits in IDEC Smart-
Relay
3800 200 250
Still available in IDEC SmartRelay 3724 194 247
