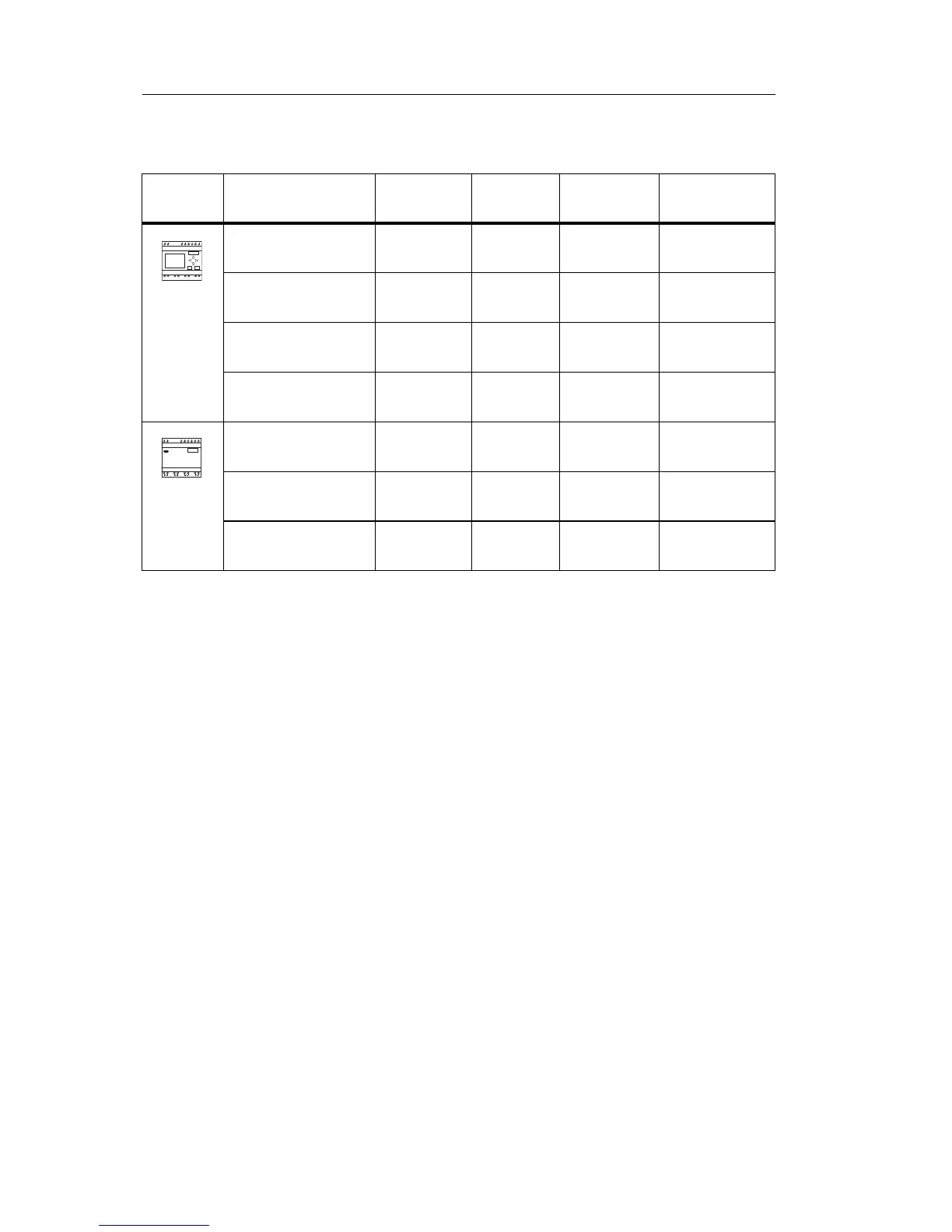

The following IDEC SmartRelay versions are available:
(1): Of those can be used alternatively: 4 analog inputs (0 ... 10V) and 4 fast inputs.
(2): AC versions: Two groups consisting of 4 inputs each. Each input within a group
must be connected to the same phase. It is possible to interconnect groups with
a different phase.
(3): The digital inputs can be operated with P or N action.
Symbol Designation Supply
volta
ge
I
nputs Outputs Properties
FL1E-H12RCE 12/24 V DC 8 digital
(1)
4 relays
(10 A)
FL1E-H12SND 24 V DC 8 digital
(1)
4 solid state
24V / 0.3A
no clock
FL1E-H12RCA
(3)
24 V AC/
24 V DC
8 digital 4 relays
(10A)
FL1E-H12RCC
(2)
100...240 V
AC/DC
8 digital 4 relays
(10A)
FL1E-B12RCE 12/24 V DC 8 digital
(1)
4 relays
(10A)
no display unit
no keyboard
FL1E-B12RCA
(3)
24 V AC /
24 V DC
8 digital 4 relays
(10A)
no display unit
no keyboard
FL1E-B12RCC
(2)
100...240 V
AC/DC
8 digital 4 relays
(10A)
no display unit
no keyboard
