Programming IDEC SmartRelay
74 IDEC SmartRelay Manual
Note
Press to go the start of the Co list: I1, I2 .... to lo. Press to go
to the end of the Co list: lo, hi, ..... to I1.
Inputs F1, F2, F3, and F4 are new as of the FL1E device series.
They correspond to the four function keys on the optional Text Dis-
play.
Press OK. I1 is now connected to the input of the OR block.
The cursor jumps to the next input of the OR block.

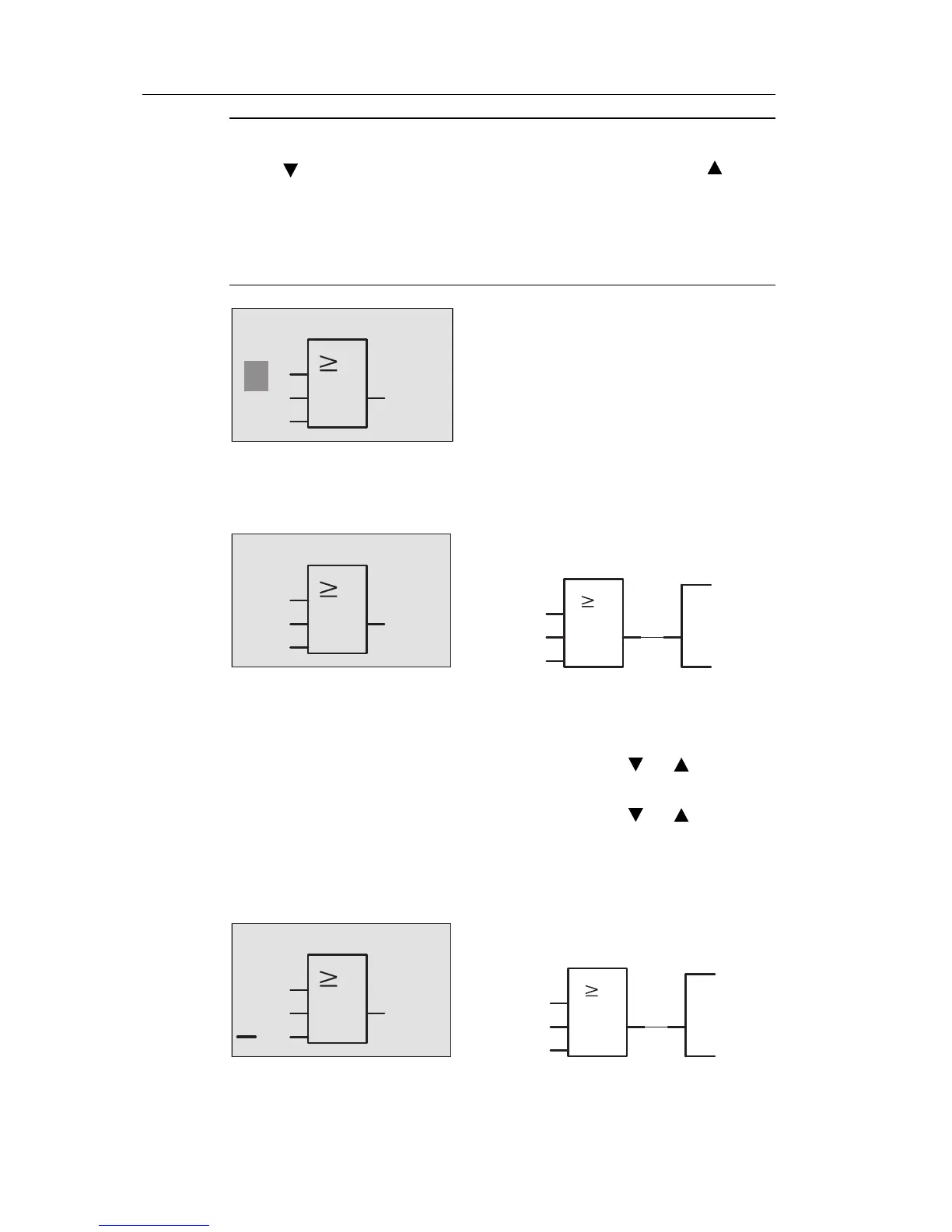

The display now shows: Your complete circuit program
in IDEC SmartRelay up to now:
Now you connect input I2 to the input of the OR block. You
already know how to do this:
1. Switch to editing mode: Press OK
2. Select the Co list: Press
or
3. Confirm the Co list with: Press OK
4. Select I2: Press
or
5. Apply I2: Press OK
I2 is now connected to the input of the OR block:
The display now shows: Your circuit program layout in
IDEC SmartRelay up to now
