IDEC SmartRelay Series User Manual

IDEC SmartRelay functions
IDEC SmartRelay Manual 99
4.2.2 AND with Edge Detection
The output of an edge triggered AND is only 1 if all inputs are
1 and if at least one input was low in the previous cycle.
At an unused block input (x): x = 1.

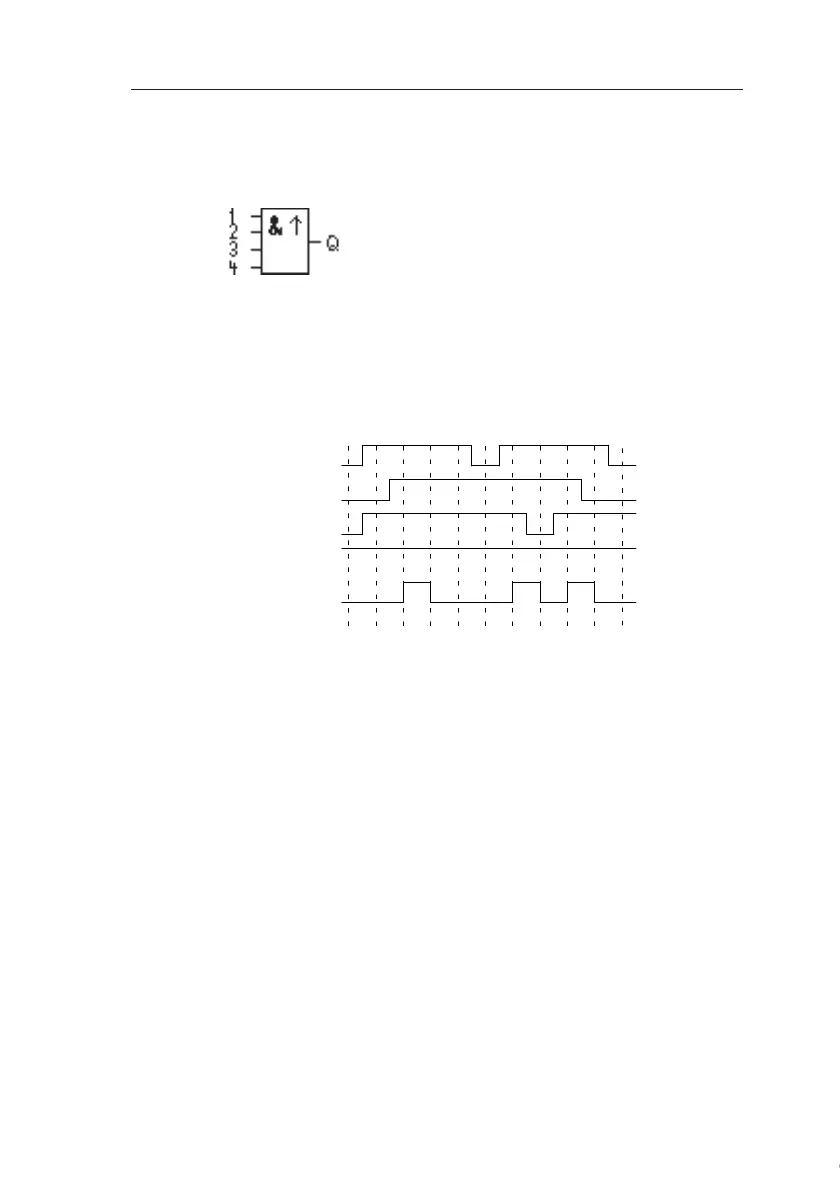

Timing diagram for the AND with Edge Detection
Symbol in IDEC SmartRelay:
1
3
Q
2
123456789
10
4
Cycle
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
