IDEC SmartRelay Manual
2.3.3 Connecting outputs
FL1C-B12RCC / FL1C-B12RCA / FL1C-H12RCC / FL1C-H12RCA/
FL1C-H12RCE / FL1C-B12RCE
These units are equipped with relay outputs. The potential of
the relay contacts is isolated from the power supply and the
inputs.
Requirements for relay outputs
You can connect various loads to the outputs, e.g. lamps,
fluorescent lamps, motors, contactor relays etc. For informa-
tion on the properties required for the loads connected to the
these units, refer to Appendix A.
Connecting

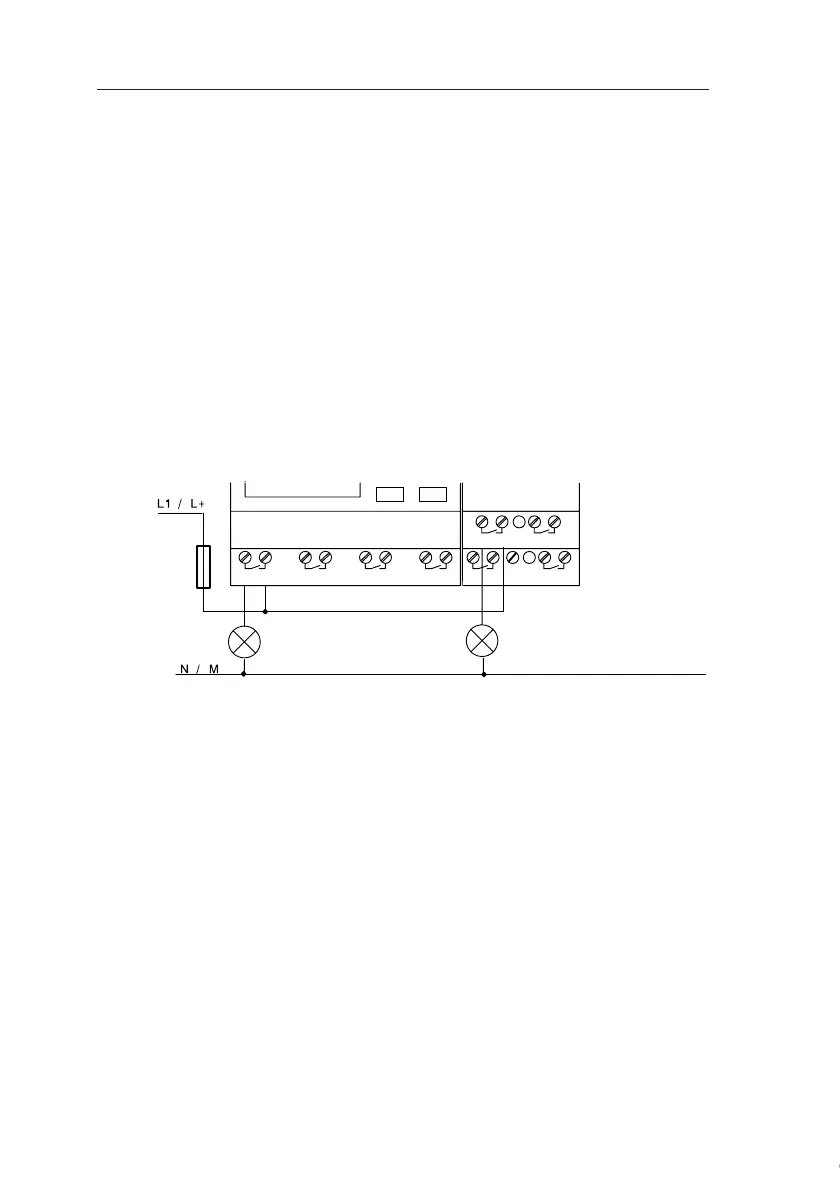

This is how you connect the load:
Protection with automatic circuit-breaker, max. 16 A, characteristics
B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)
1 2
Q1 Q2
1 2
Q5 Q6
1 2
1 2
load
load
