IDEC SmartRelay functions
104
IDEC SmartRelay Manual
4.2.7 XOR (exclusive OR)
The output status of the XOR is 1 if the inputs are not equiv-
alent.
At an unused block input (x): x = 0.
Table of the XOR logic
4.2.8 NOT (Negation, Inverter)
The output status is 1 if the input is 0. The NOT block inverts
the input status.
Advantage of the NOT block, for example: The IDEC Smar-
tRelay does not require break contacts. You simply use a
make contact and the NOT block to convert these into a
break contact.
Table of the NOT logic
12Q
000
011
101
110
1Q
01
10

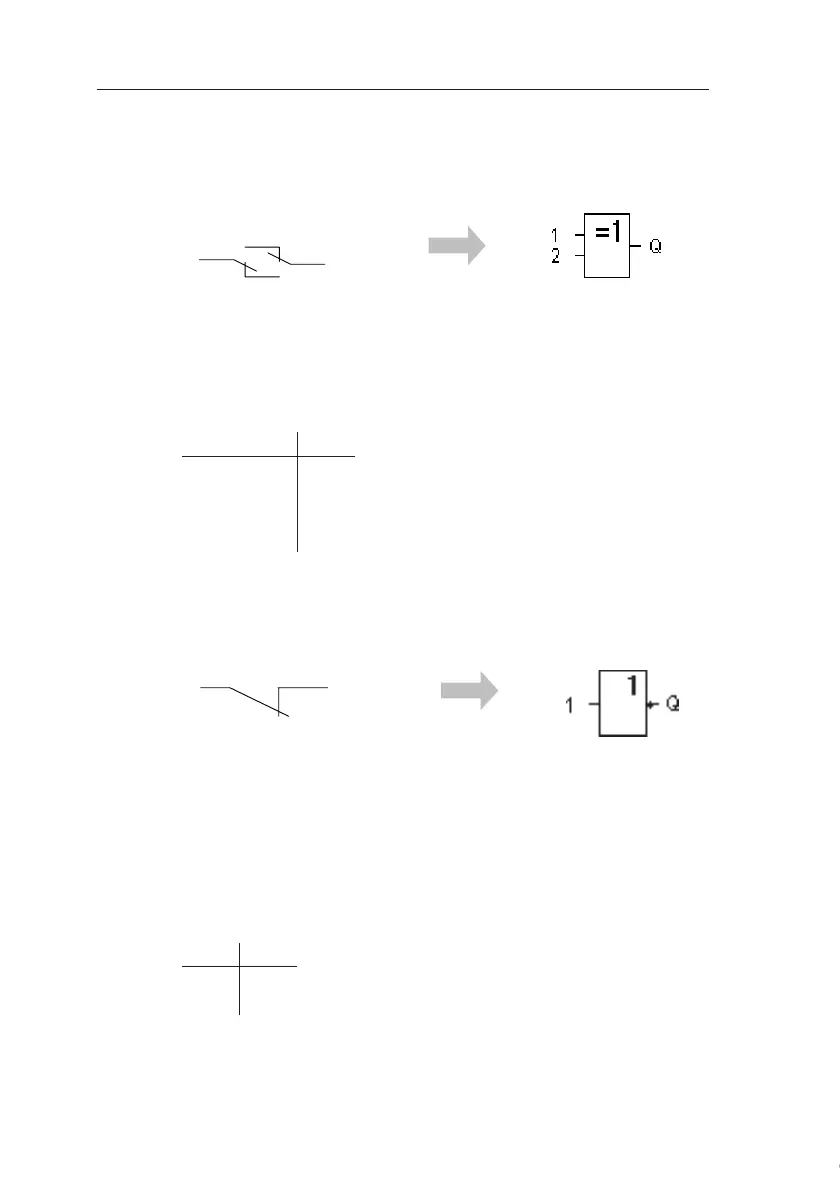

Symbol in IDEC SmartRelay:
The XOR in a circuit diagram,
shown as series circuit with 2
changeover contacts:
Symbol in IDEC SmartRelay:
A break contact in the circuit
diagram:
