Programming IDEC SmartRelay
76
IDEC SmartRelay Manual
Closing the programming mode
Although you were shown how to exit the programming
mode when you created your first circuit program,
here is a reminder:
1. To return to the programming menu: Press ESC
2. To return to the main menu: Press ESC
3. To move the '>' cursor to 'Start': Press ▲ or ▼
4. To confirm 'Start': Press OK
IDEC SmartRelay is back in RUN mode:
3.6.8 Deleting a block

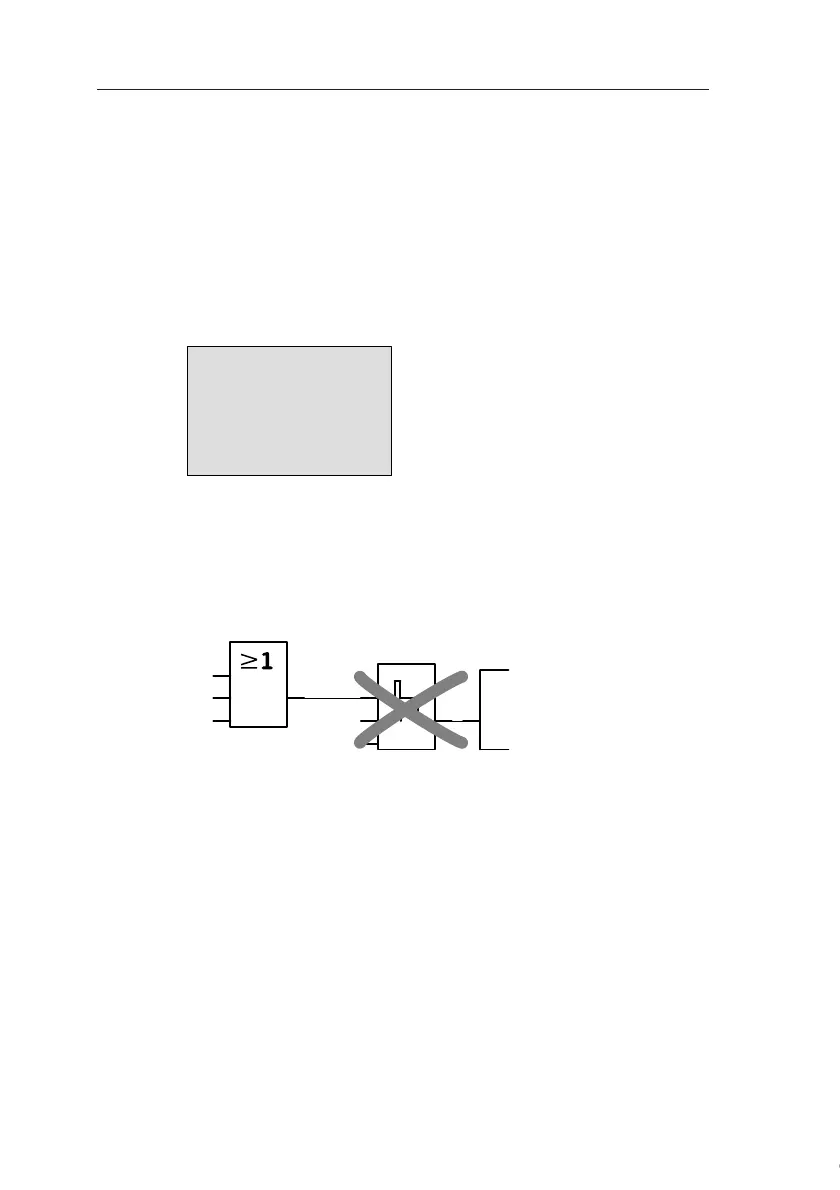

Let us assume you want to delete the block B2 from your cir-
cuit program and connect B1 directly to Q1.
Proceed as follows:
1. Switch the IDEC SmartRelay to programming mode
(as a reminder, refer to page 50).
2. Select ‘Edit’: Press ▲ or ▼
3. Confirm ‘Edit’: Press OK
4. Select ‘Edit Prg’: Press ▲ or ▼
5. Confirm ‘Edit Prg’: Press OK
(If required, enter your password and confirm with OK).
2003-01-27
Mo 09:30
You can press or to scroll the pag-
es and to monitor the I/O states.
▲
▲
