Programming IDEC SmartRelay
IDEC SmartRelay Manual 77
6. To move the cursor to the input of Q1, i.e. to B2, press :
7. Confirm with OK.
8. Now replace block B2 with block B1 at output Q1. The
procedure:
- Select the BN list: Press ▲ or ▼
- Accept the BN list: Press OK
- Select 'B1': Press ▲ or ▼
- Apply 'B1': Press OK
Result: Block B2 is deleted, because it is no longer used in
the circuit. Block B1 has replaced B2 directly at the output.

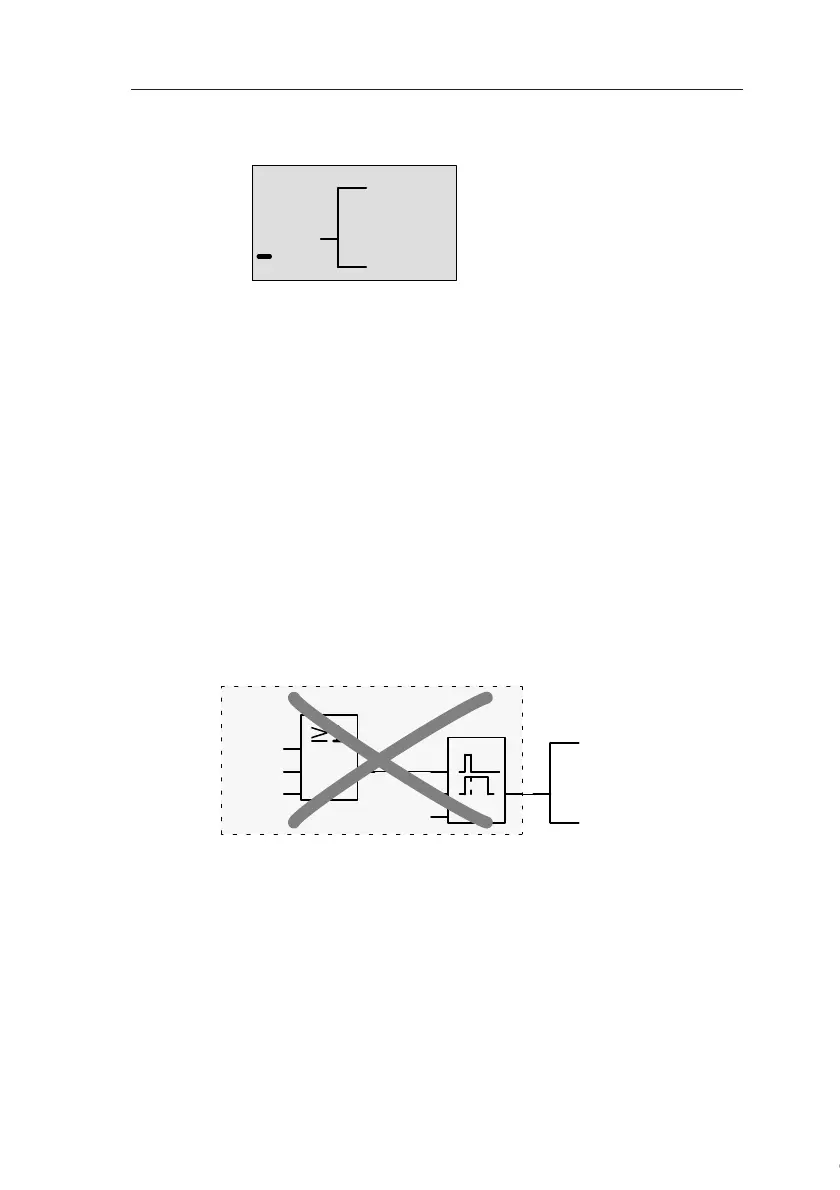

3.6.9 Deleting block groups
Let us assume you want to delete the blocks B1 and B2 from
the following circuit program (corresponds with the circuit
program in Chapter 3.6.7).
Proceed as follows:
1. Switch the IDEC SmartRelay to programming mode
(as a reminder, refer to page 50).
2. To select 'Edit': Press ▲ or ▼
3. To confirm 'Edit': Press OK
4. To select 'Edit Prg': Press ▲ or ▼
5. To confirm 'Edit Prg': Press OK
(if required, enter your password and confirm with OK).
▲
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
