IDEC SmartRelay functions
146
IDEC SmartRelay Manual
4.4.12 Twelve-month time switch
Short description
The output is controlled by means of a configurable on/off
date.
Note
Because FL1C-H12SND does not have a real-time clock, the
Twelve-month time switch is not available for this version.

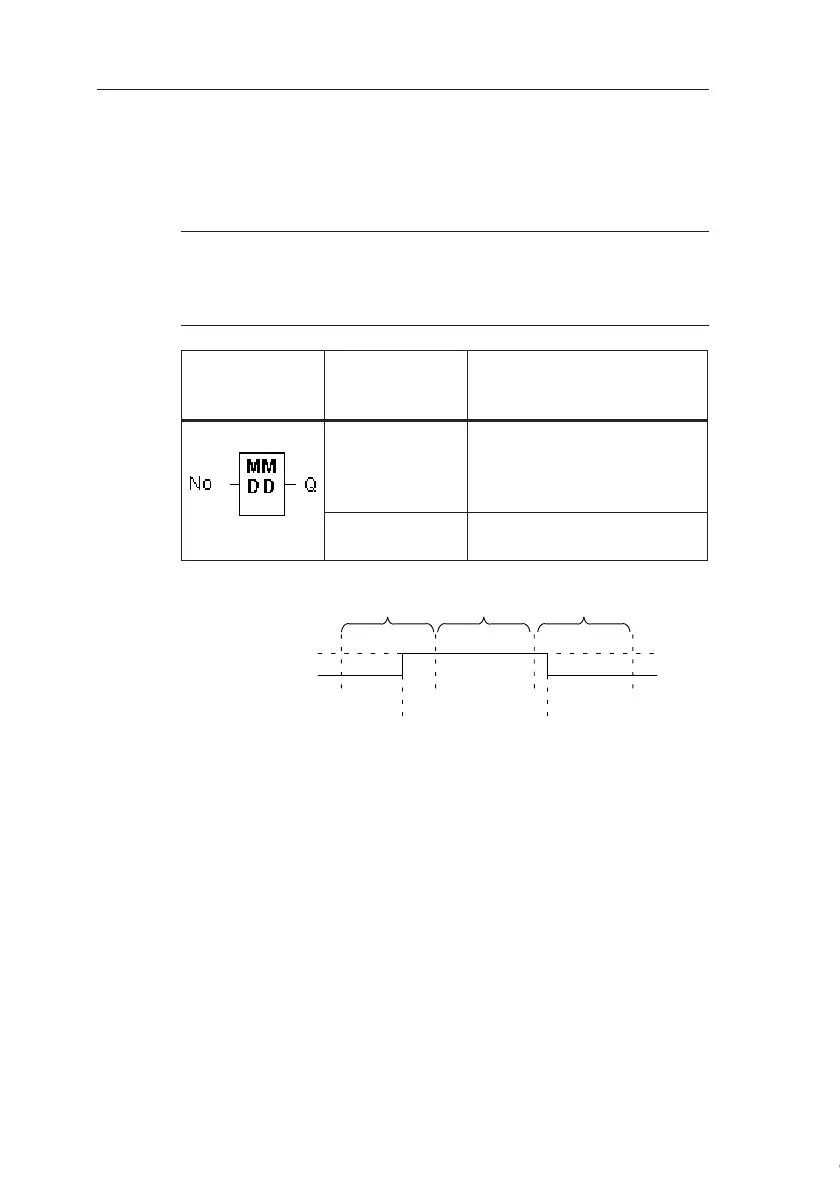

Timing diagram
Functional description
The Twelve-month time switch sets the output at a specific
on-time, and resets it at a specific off-time. The off-date iden-
tifies the day on which the output is reset again. The first val-
ue identifies the month, the second the day. For “MM” you
can select a placeholder (**), so that the on- and off-time is
set for a specific day each month.
Symbol in
IDEC
SmartRelay
Wiring Description
Cam parameter At the Cam parameter, you
configure the on-/off-times
for the cam of the Twelve-
month time switch.
Output Q Q is set when the configured
cam is actuated.
MM.DD
On=02.20
Off=04.03
On
Off
Feb. Mar.
Apr.
February 20 at
00:00 h
April 3
00:00 h
