IDEC SmartRelay functions
IDEC SmartRelay Manual 147
Sample configuration
The output of a IDEC SmartRelay is to be set annually on
March 1, reset on April 4, set again on July 7, and reset again
on November 19. You need to configure two Twelve-month
time switches with corresponding on-times. The outputs are
then logically linked by means of an OR block

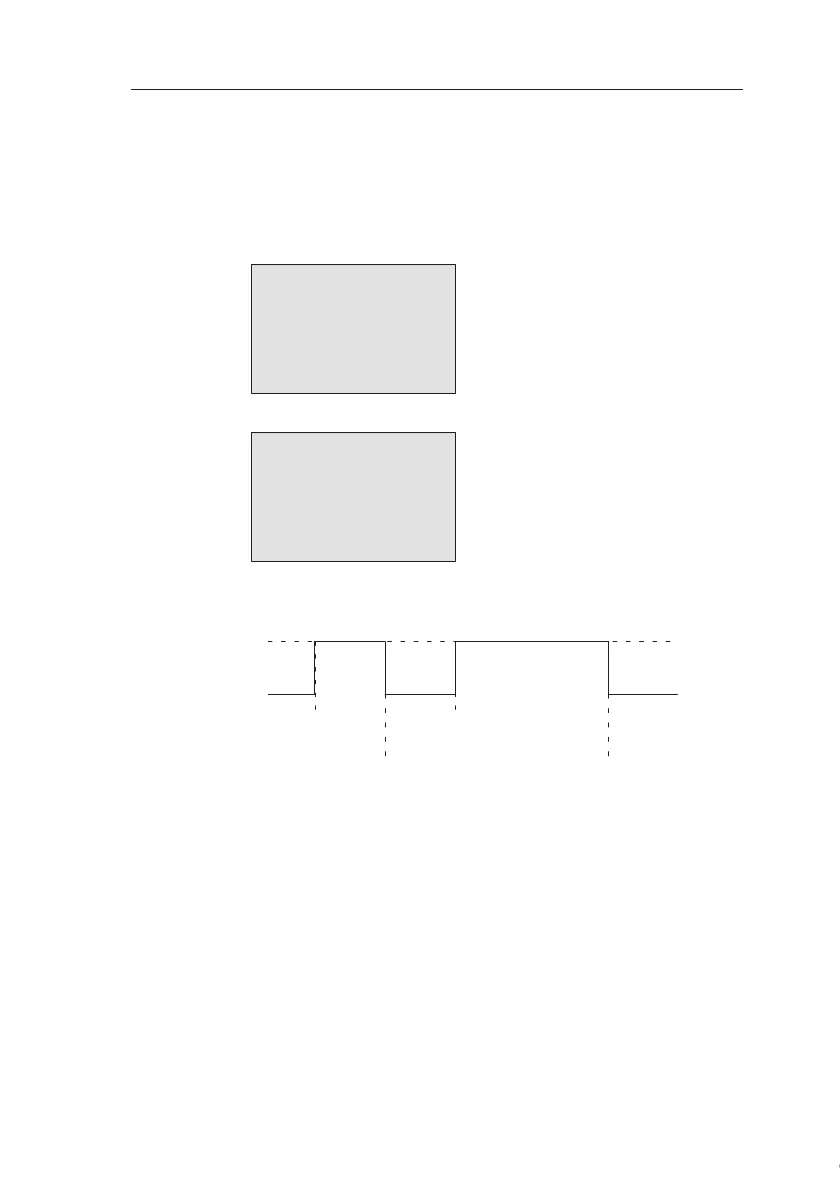

Result
B1 +
MM-DD
On =03-01
Off=04-04
On-time March 1
Off-time April 4
B2 +
MM-DD
On =07-07
Off=11-19
In addition:
On-time July 7
Off-time November 19
On
Off
B1
B2
March 1
at 00:00 h
April 4
at 00:00 h
November 19
at 00:00 h
July 7
at 00:00 h
