IDEC SmartRelay functions
176
IDEC SmartRelay Manual
4.4.20 Analog amplifier
Short description
This special function amplifies the value of an analog input
and outputs the result at an analog output.
*AI1...AI8:0...10V corresponds with 0...1000 (internal value).
Gain and offset parameters
Please note the information on gain and offset parameters in
Chapter 4.3.6.
Parameter p (number of decimals)
Applies only to the AQ value in a message text.

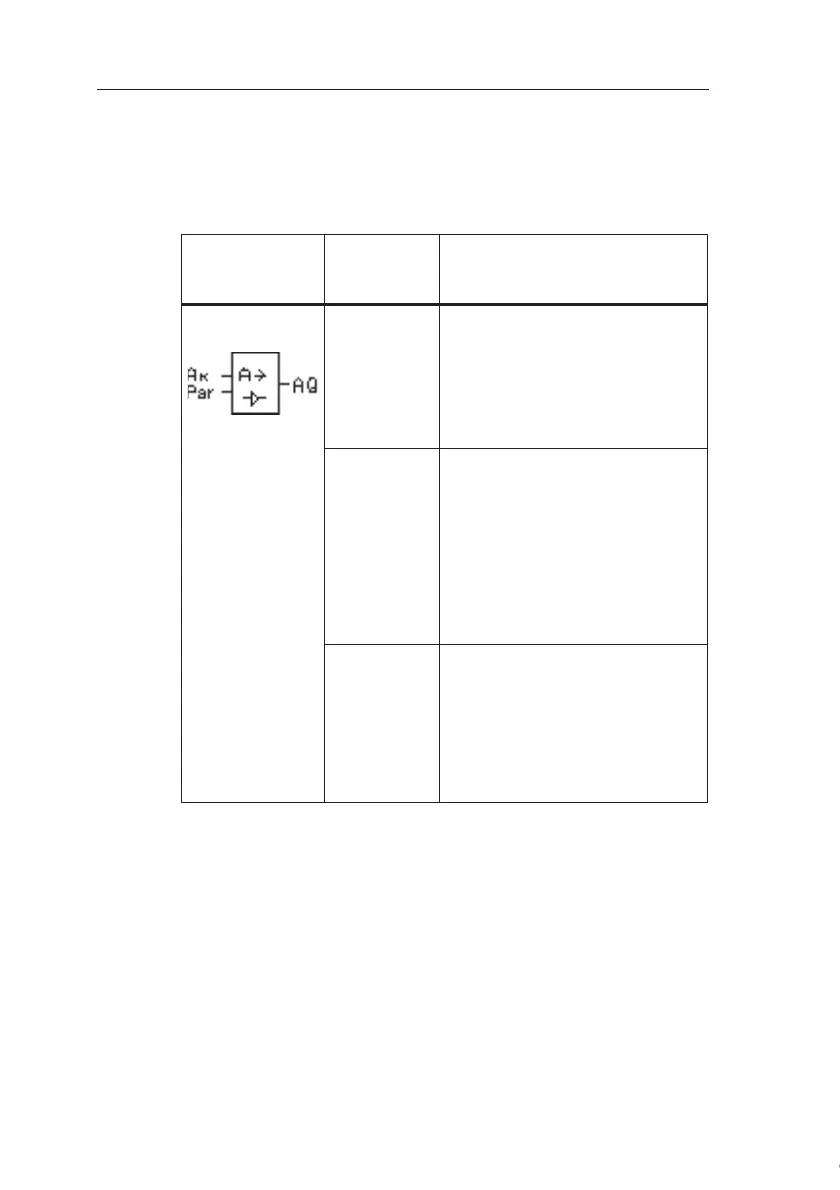

Symbol in
IDEC
SmartRelay
Wiring Description
Input Ax You apply the analog signal to
be amplified at input Ax.
Use the analog inputs AI1...AI8
(
*
)
, the Analog Memory Markers
AM1...AM6, the block number of
a function with analog output.
Parameter A: Gain
Range of values:
00.00...10.00
B: Zero offset
Range of values:
±10.000
p: Number of decimals
Range of values:
0, 1, 2, 3
Output AQ This special function has an an-
alog output! This output can only
be connected with the analog in-
put of a function or with an Ana-
log Memory Marker.
Range of values for AQ:
-32768...+32767
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
