5.1.3 Modifying parameters
You first select the parameter you want to edit (see Chap-
ter 5.1.2).
You change the value of the parameter in the same way as
you did in programming mode:
1. Move the cursor to the point at which you want to make
the change: Press or
2. To change this value: Press ▲ or ▼
3. To apply the value: OK
Note
Alongside with a change of the time parameters when the system
is in RUN, you can also change the timebase (s = seconds, m =
minutes, h = hours). This does not apply if the time parameter rep-
resents the result of another function (for an example, see Chap-
ter 4.4.1). In this case you can neither change the value nor the
timebase.
The current time is reset to zero when you change the timebase.
Current value of a time T

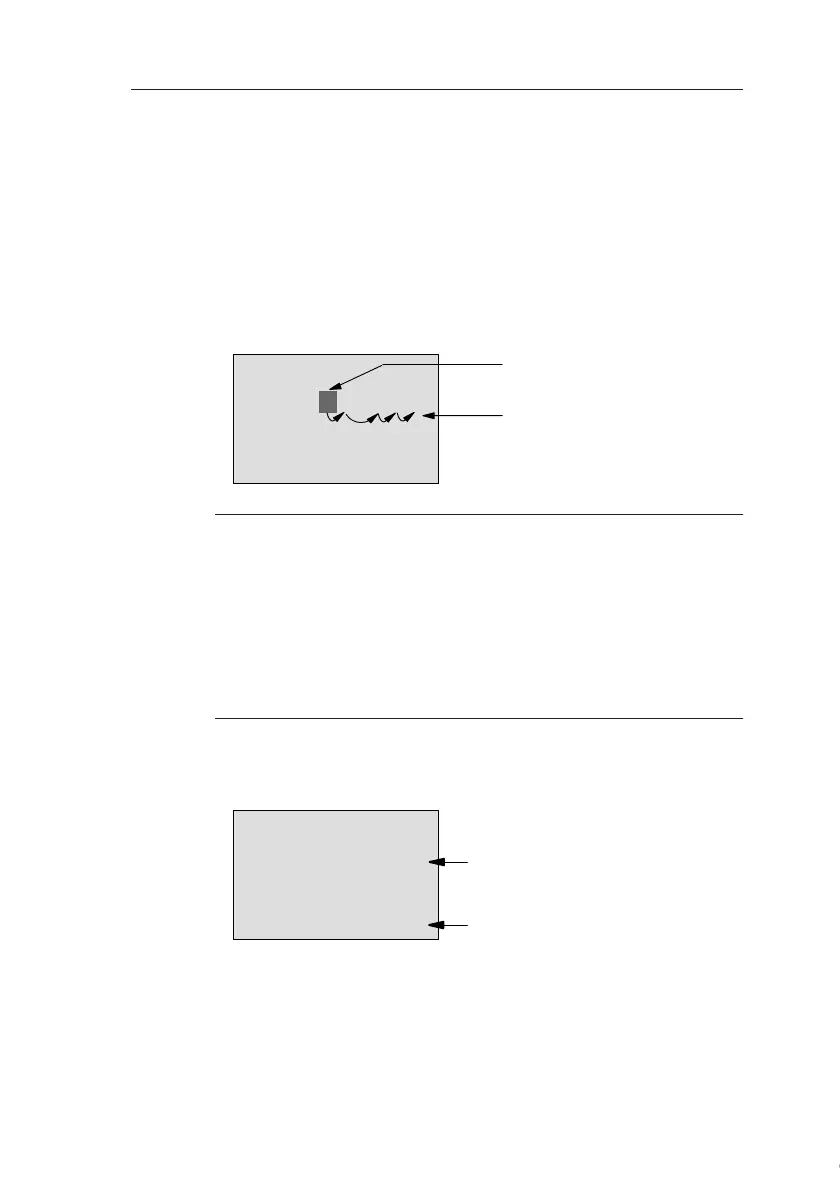

View of a time T in parameter assignment mode:
You can change the configured time T.
▲
▲
B9
Ta =06:00s
T =80:00s
Change: Press ▲ or ▼
Move: Press or
Done: OK
▲
▲
B9
Ta =06:00s
T =80:00s
Configured time T
Current time T
a
