Applications
224
IDEC SmartRelay Manual

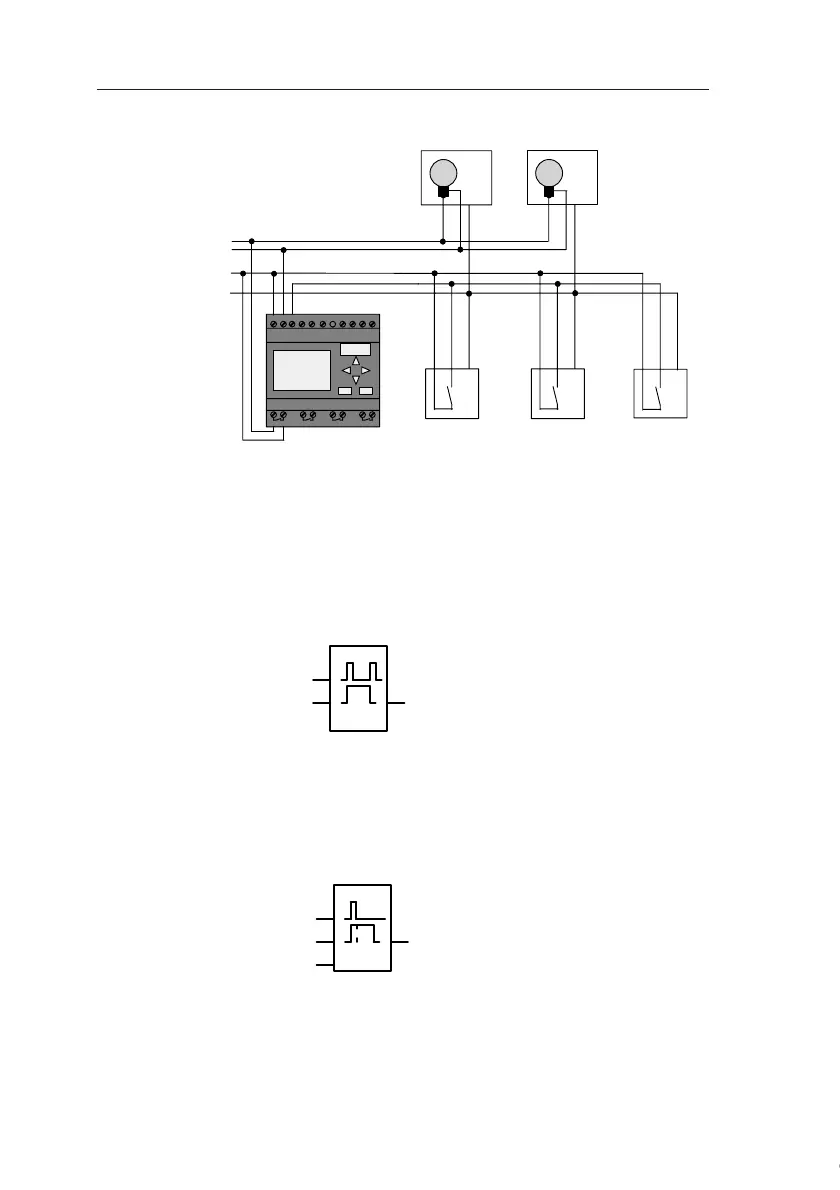

Wiring of a lighting system with FL1C-H12RCC
The external wiring of a lighting system with a IDEC Smart-
Relay is no different than it is for a conventional stairway and
corridor lighting system. Only the automatic stairway lighting
switch/Current impulse relay is replaced. Supplementary
functions are entered directly in IDEC SmartRelay.
Current impulse relay with IDEC SmartRelay
Output Q1 is toggled with a pulse signal at input I1.
Automatic stairway lighting switch with IDEC SmartRelay
Output Q1 is set for the duration of 6 minutes with a pulse
signal at input I1.
L1 N I1 I3 I6I7I8
Q1 Q2 Q3 Q4
L
N
PE
I4 I5I1 I2 I3I1 I2 I3
Lamps
Switches
I1
Q1
T
06:00m
Momentary
Switch:
Lights
