Page 94
POC-3174B-A330 Medical Panel PC
6.7.2 South Bridge Configuration
The South Bridge Configuration menu (BIOS Menu 17) enables the Southbridge chipset
to be configured.

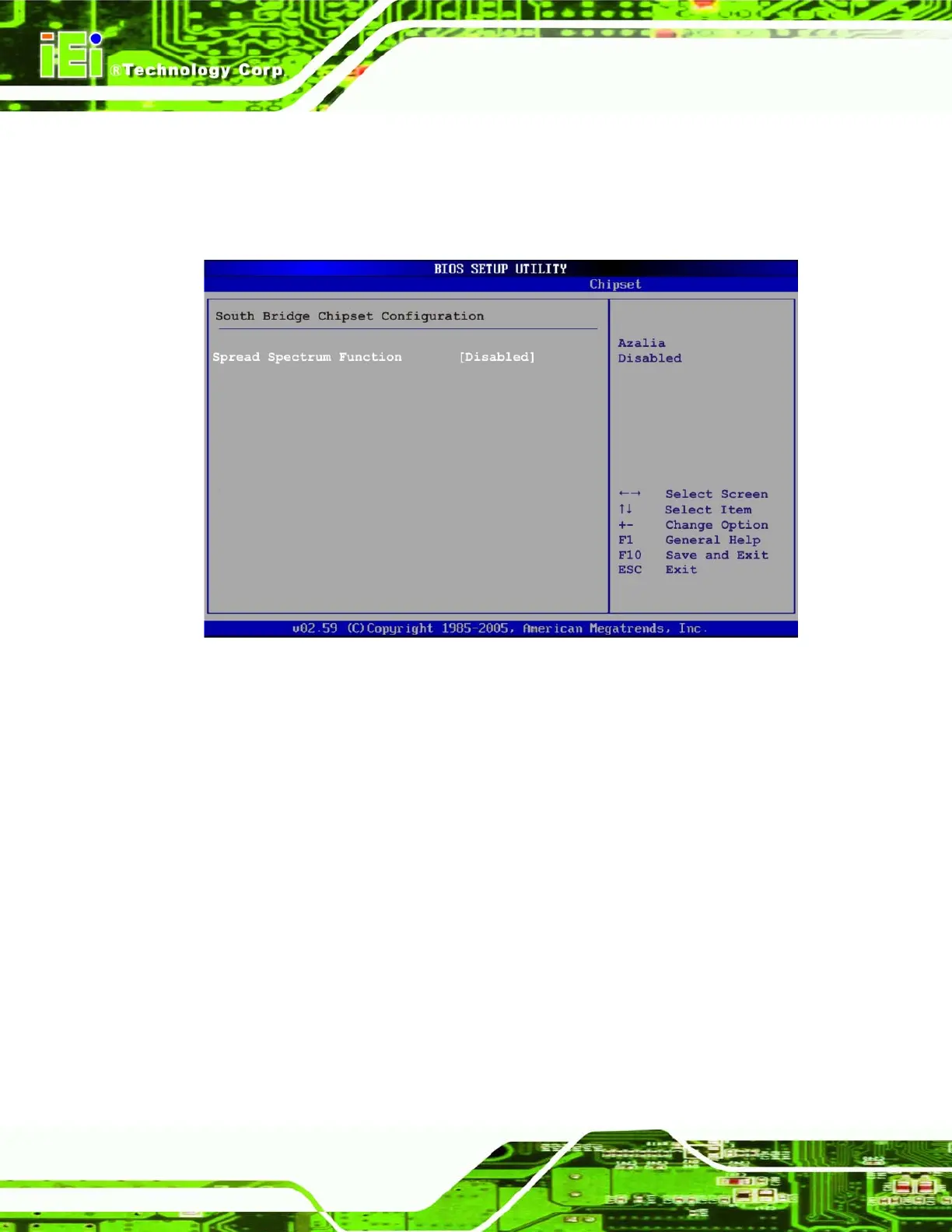

BIOS Menu 17:South Bridge Chipset Configuration
Spread Spectrum Function [Disabled]
Use the Spread Spectrum Function option to reduce the EMI. Excess EMI is generated
when the system clock generator pulses have extreme values. Spreading the pulse
spectrum modulates changes in the extreme values from spikes to flat curves, thus
reducing the EMI. This benefit may in some cases be outweighed by problems with
timing-critical devices, such as a clock-sensitive SCSI device.
Disabled D
EFAULT
EMI not reduced
Enabled
EMI reduced
