Page 12
POC-3174B-A330 Medical Panel PC
2.2 Intel® Processor Support
The POC-3174B-A330 is installed with an Intel® Pentium® M 760 processor. The Intel®
Pentium® M 760 processor has a CPU speed of 2.0 GHz, a 533 MHz front side bus (FSB)
and a 2.0 MB L2 cache. Intel® Pentium® M processor supports the following Intel®
features: ‘,m
90nm architecture
Intel® SpeedStep® Technology
Execute Disable Bit support
Intel® Mobile Voltage Positioning
2.3 Motherboard Components
The following sections describe some of the features on the motherboard.
2.3.1 Memory Support
2.3.1.1 Installed Memory
One 200-pin 1.0 GB DDR2 SDRAM SO-DIMM are installed in the POC-3174B-A330 and
controlled by the Intel® 915GME GMCH installed on the internal motherboard.

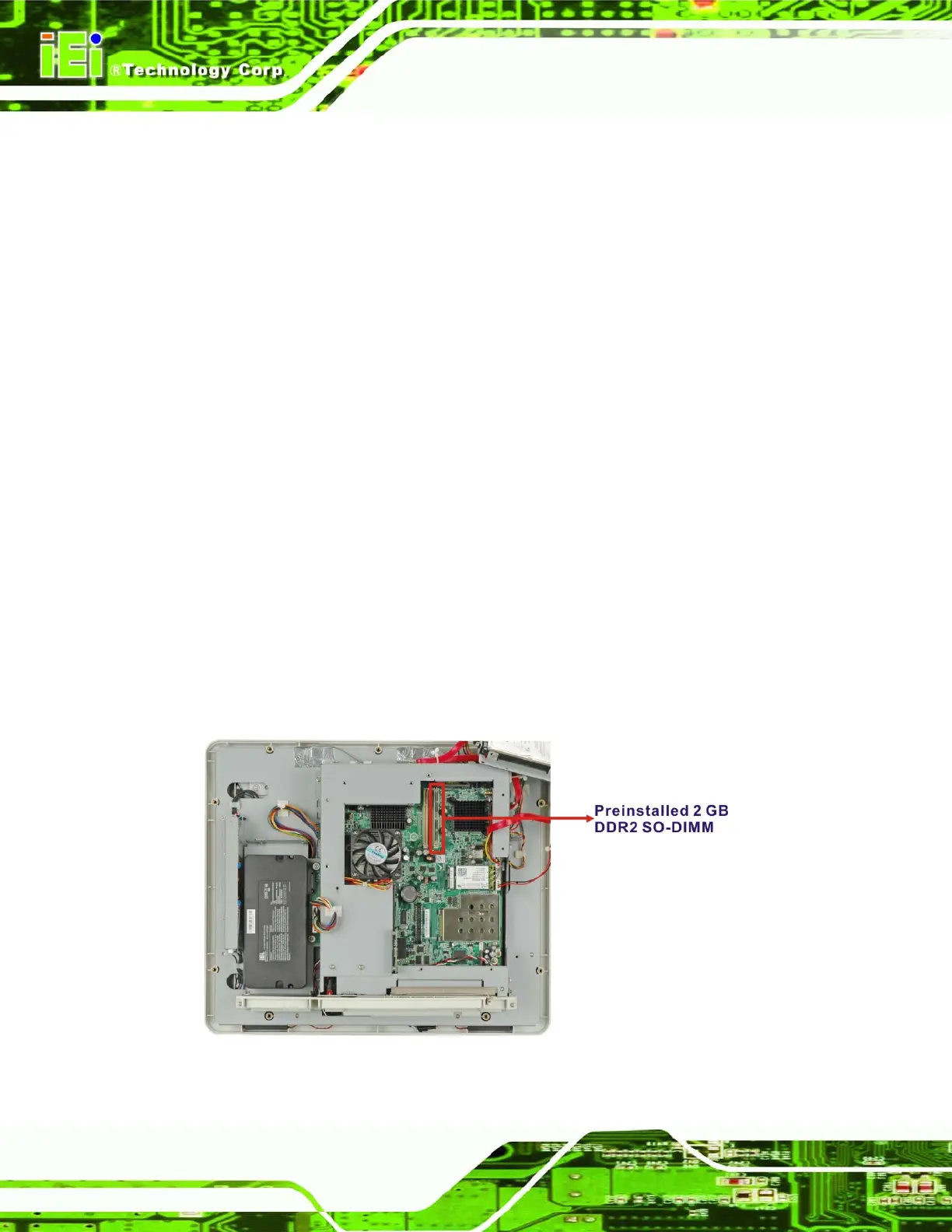

Figure 2-2: Memory Module and Memory Socket
