Page 131
POC-3174B-A330 Medical Panel PC
8.2.2.3 Total Battery Time

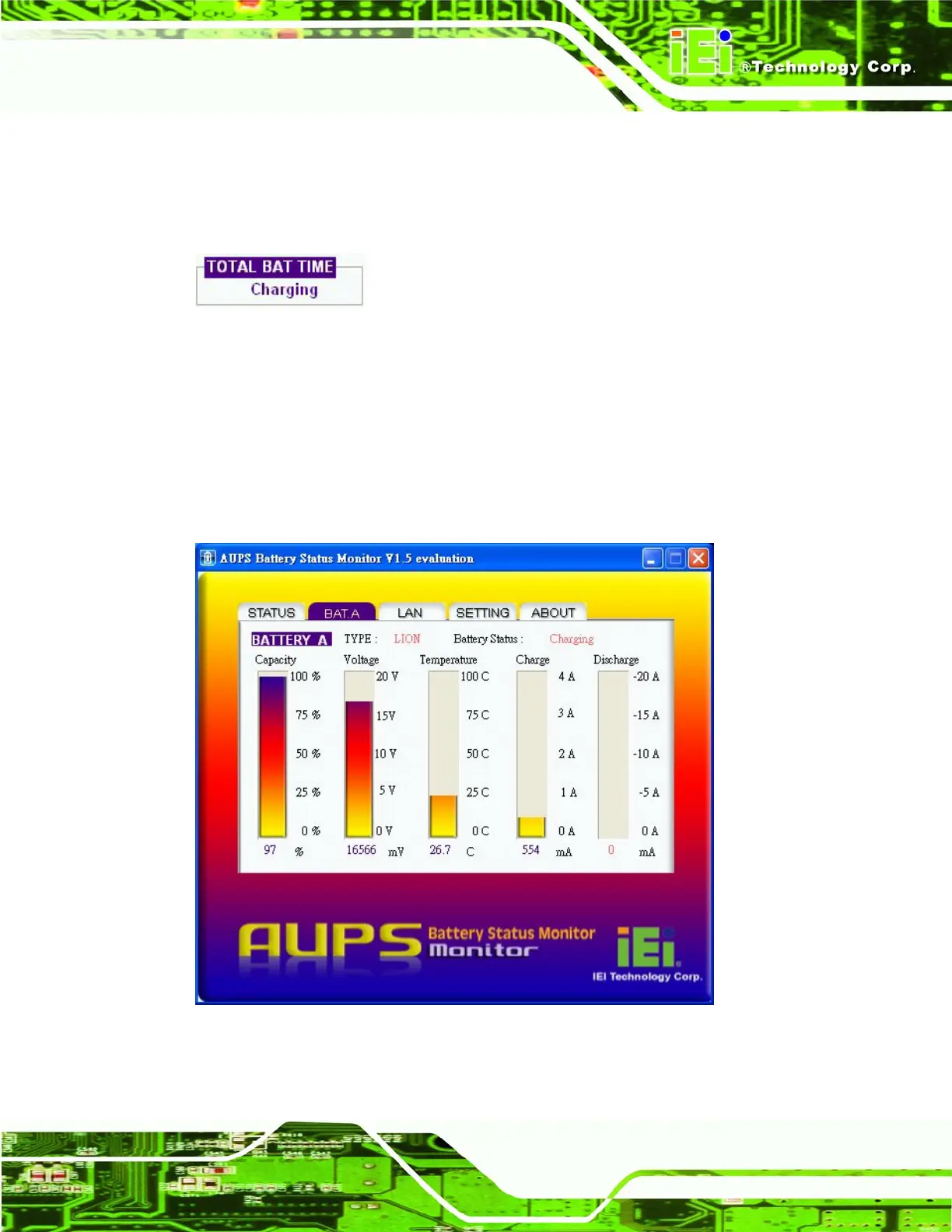

The total battery time is shown in the top right corner (Figure 8-10) of the status screen to
indicate the total battery remaining time.
Figure 8-10: Total Battery Time
8.2.3 Battery Information
Click on the BAT. A tab to view the information of battery. The listed information includes
battery type, capacity, output voltage, temperature, charging rate, discharging rate and
battery status (
Figure 8-11). The values listed are updated per second.
Figure 8-11: Battery Information
