Page 50

POC-3174B-A330 Medical Panel PC

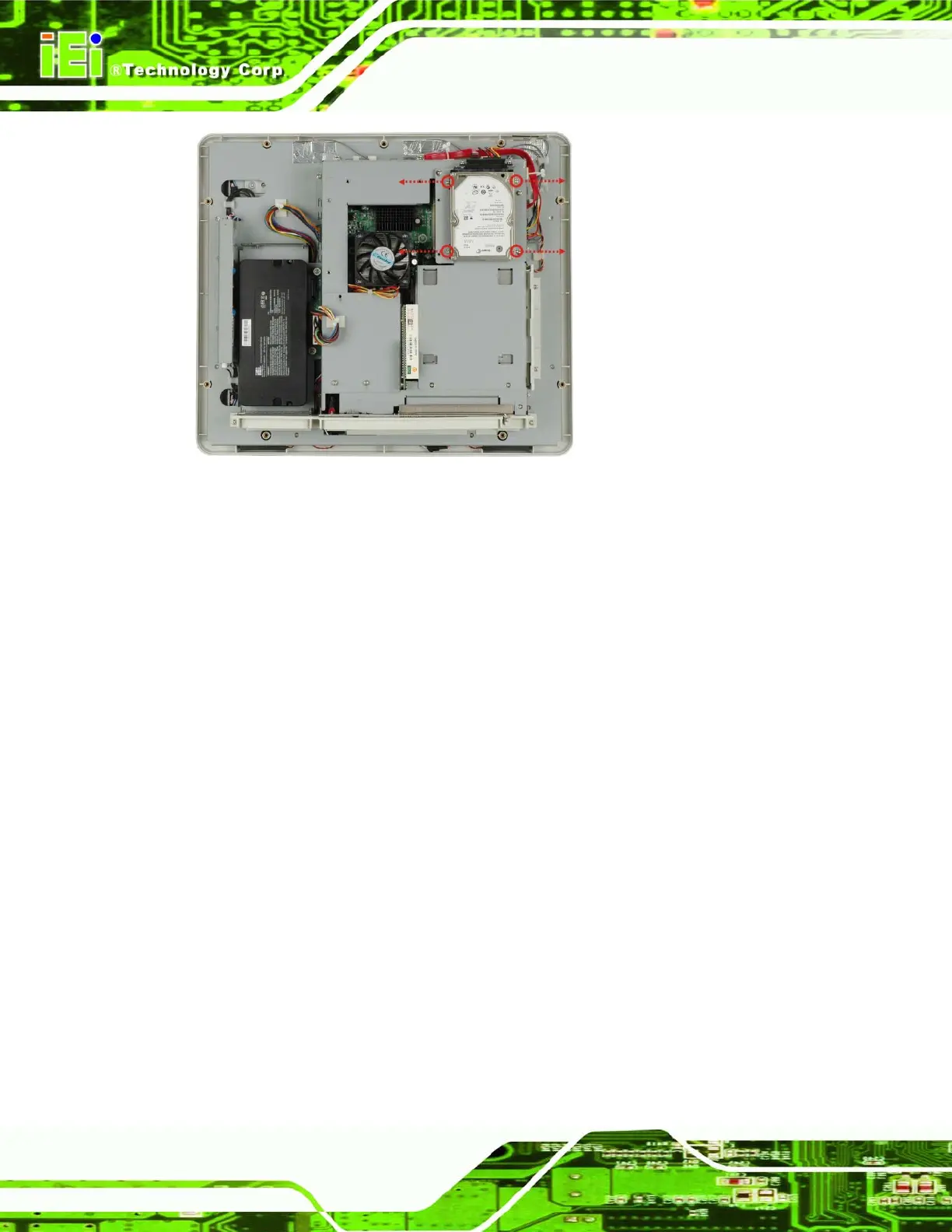

Figure 5-3: Hard Drive Retention Screws

Step 5: Attach a new hard drive to the aluminum platform. To do this, align the four

retention screw holes on sides of the hard drive with the screw holes on the

platform. Fasten four round head retention screws to secure the hard drive to the

platform.

Step 6: Reinstall the previously removed wall mount bracket.

Step 7: Replace the plastic back cover. Step 0:

5.5 Memory Module Replacement

The medical panel PC is preinstalled with a DDR2 memory module. If the memory module

fails, follow the instructions below to replace the memory module.

Step 1: Remove the back cover. See Section

5.3.

Step 2: Remove the wall mount bracket. See Section

5.4 Step 3.

Step 3: Remove the CD/DVD-ROM plastic panel. To do this, remove the two retention

screws (

Figure 5-4).

Step 4: Remove the HDD and CD-ROM support platform. The platform is attached to

the system with five retention screws, two flat head screws and three round
