POC-3174B-A330 Medical Panel PC

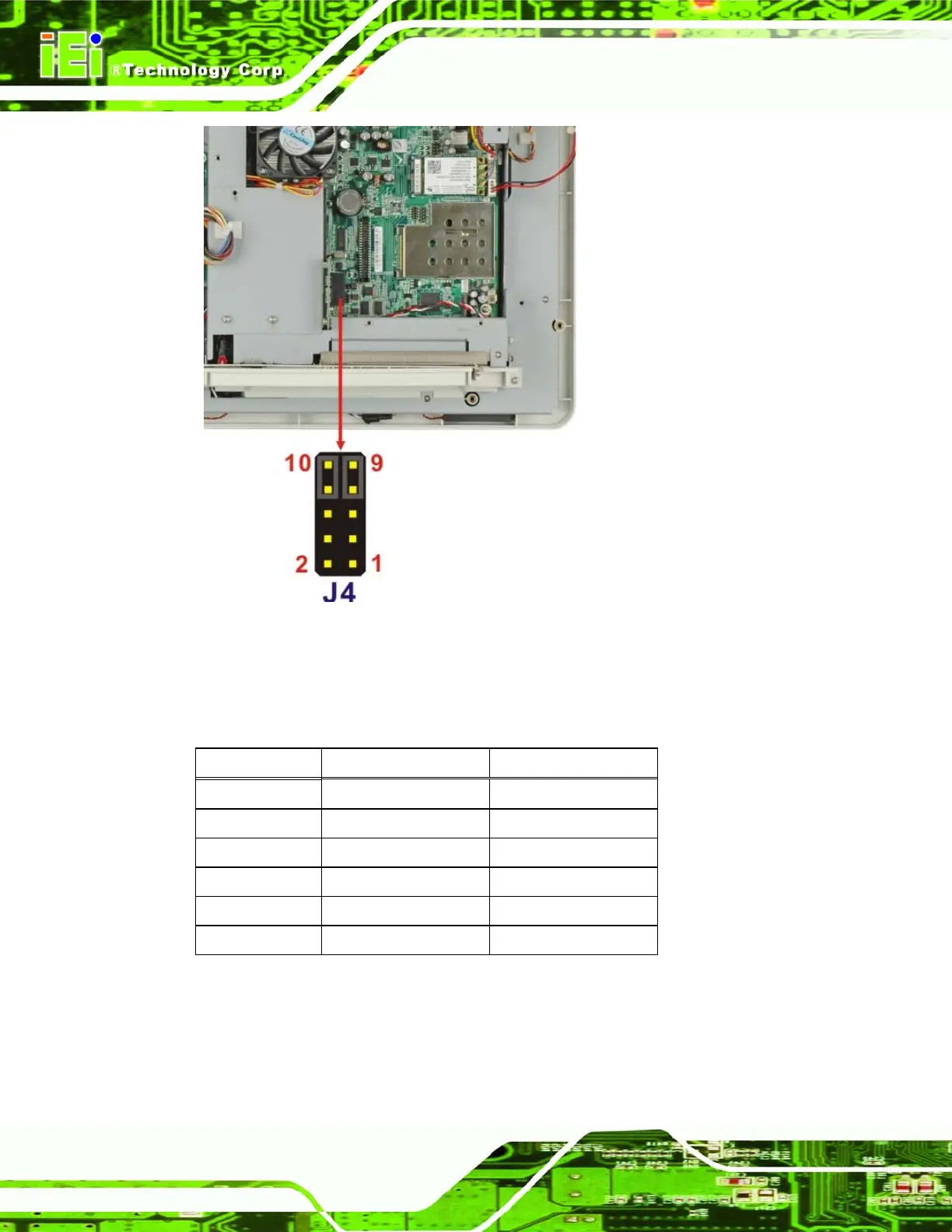

Figure 5-7: COM Port Voltage Select Jumper Location

The COM ports pin-9 signal can be selected as 12 V or 5 V. The COM Port Voltage

selection options are shown in

Table 5-1.

J4 Description

Short 1-3 12 V (COM1)

Short 3-5 5V (COM1)

Short 2-4 12 V (COM2)

Short 4-6 5 V (COM2)

Short 7-9 COM1 RS-232 Default

Short 8-10 COM2 RS-232 Default

Table 5-1: COM Port Voltage Settings
