Page 15
POC-3174B-A330 Medical Panel PC
2.4.3 LAN Connector for Remote Control
The RJ-45 connector labeled Remote LAN on the bottom panel is for remote control. The
POC-3174B-A330 can be turned on or off through a remote computer using IEI Ethernet
Device Discoverer tool. Please refer to Section
8.3 for more detailed description.

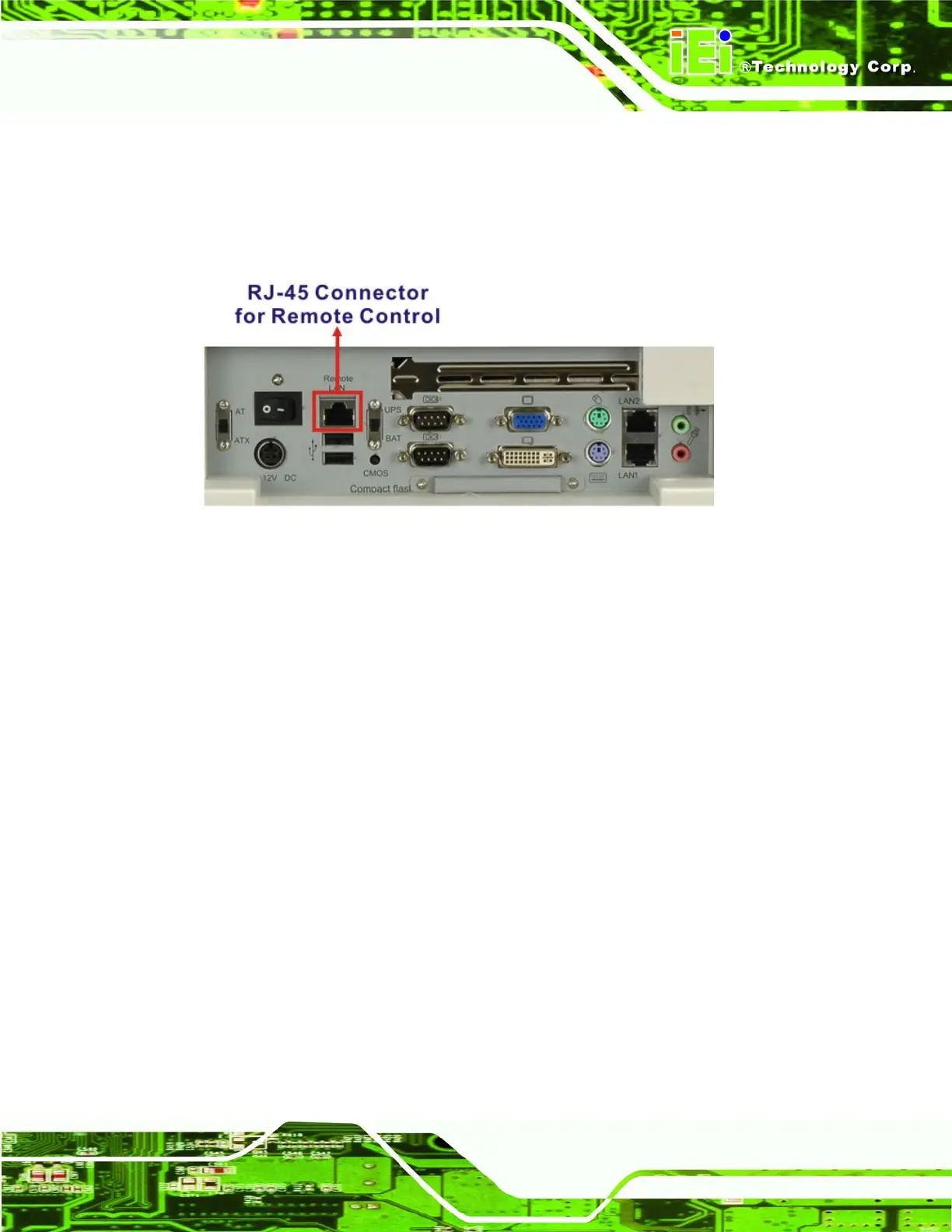

Figure 2-5: RJ-45 Remote Control Connector
2.4.4 External USB Connectors
There are two USB 2.0 connectors on the bottom panel of the POC-3174B-A330. All the
USB 2.0 connectors are interfaced directly to the USB controllers on the ICH6
Southbridge. The USB connectors are all fully compliant with USB specification Revision
2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1 and USB
2.0 compliant devices.
