IEI Technology POC-3174B-A330 User Manual

Page 126
POC-3174B-A330 Medical Panel PC
8.1 Introduction
The IEI AUPS Battery Status Monitor application detects the information of the smart
battery and monitors the battery status. It is recommended to execute this AUPS
application in Windows XP SP2 environment.
8.2 Monitoring DC Power and Smart Battery
8.2.1 Application Installation
Follow the steps below to install the AUPS Battery Status Monitor application.
Step 1: Insert the driver CD into the system. Open the x:\AUPS_Setup directory.
Double click the Setup.exe icon.
Step 2: A welcome screen appears (
Figure 8-1). To continue the installation process
click N
EXT.

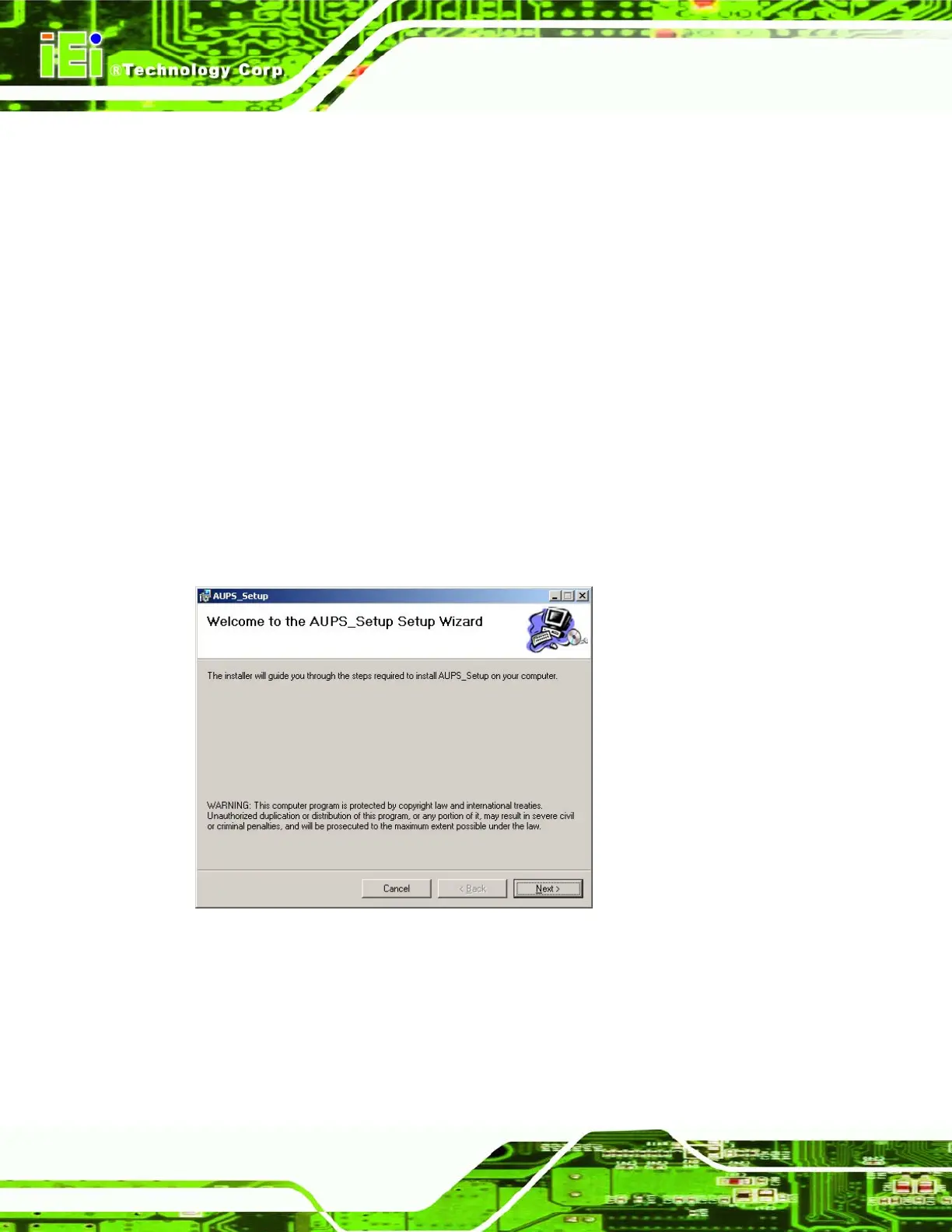

Figure 8-1: Welcome Screen
Step 3: The Select Installation Folder window appears (
Figure 8-2). Select a folder to
install the application.
