Page 41

POC-3174B-A330 Medical Panel PC

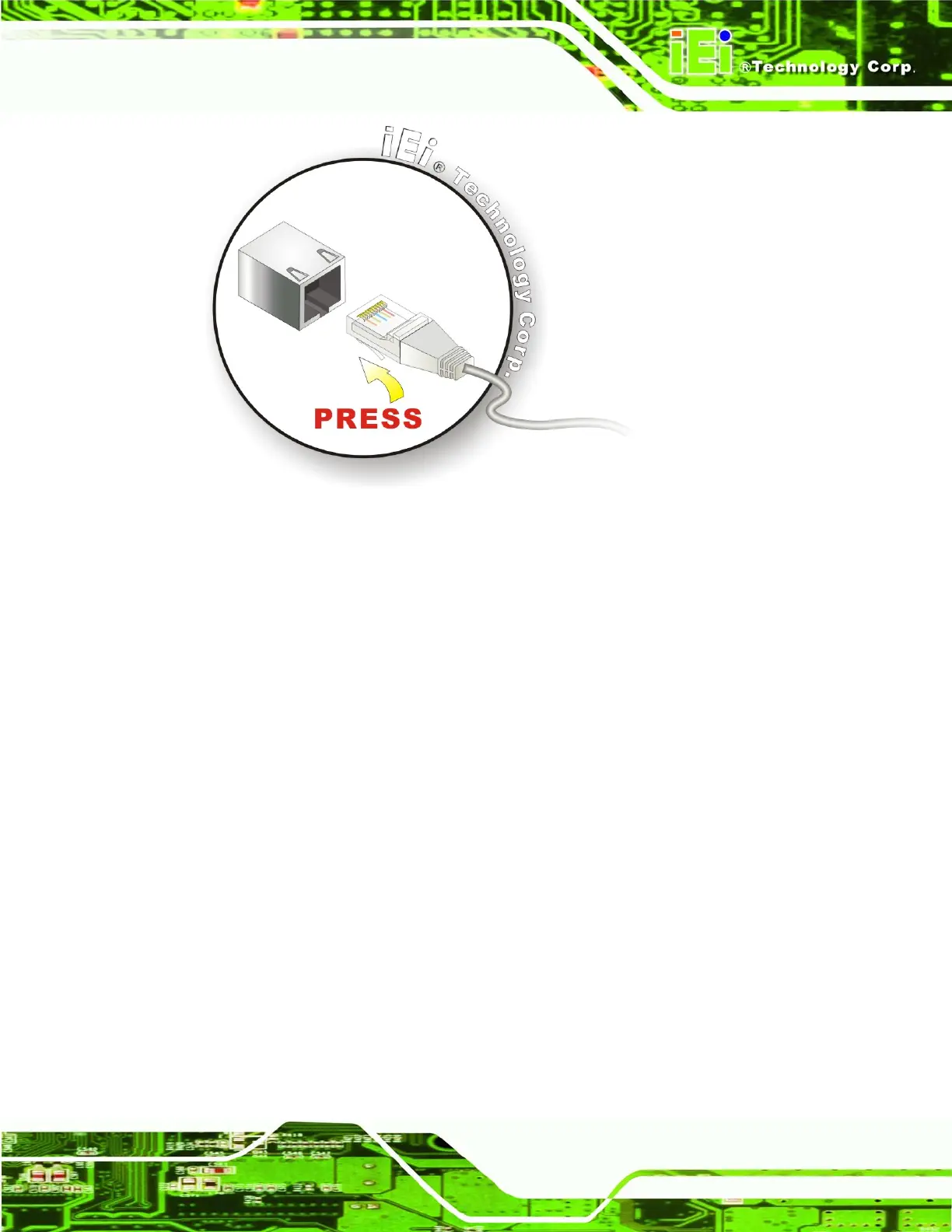

Figure 4-13: LAN Connection

Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector. Step 0:

4.10.4 PS/2 Keyboard and Mouse Connection

The POC-3174B-A330 has a dual PS/2 connector on the external peripheral interface

panel. The dual PS/2 connector is used to connect to a keyboard and mouse to the

system. Follow the steps below to connect a keyboard and mouse to the

POC-3174B-A330.

Step 1: Locate the dual PS/2 connector. The location of the dual PS/2 connector is

shown in Chapter 3.

Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse

connector into the appropriate PS/2 connector on the external peripheral

interface connector. See

Figure 4-14. Step 0:
