Page 31

POC-3174B-A330 Medical Panel PC

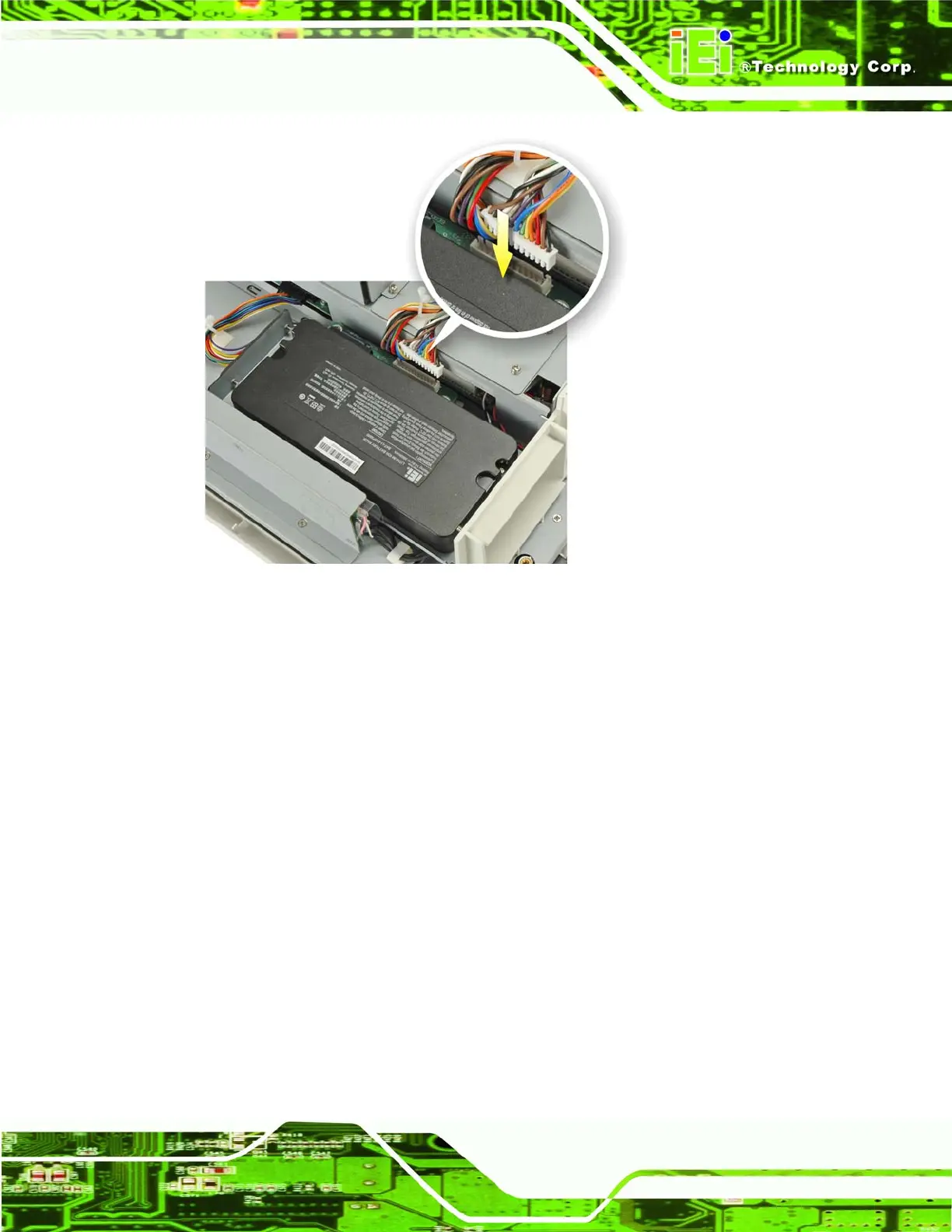

Figure 4-2: Connect the Battery

4.6 PCI Expansion Card Installation

The POC-3174B-A330 has one slot on the bottom panel for PCI card expansion. To install

the PCI card, follow the instructions below.

Step 1: Remove the plastic back cover. See Section

4.4.

Step 2: Remove the PCI slot cover by removing the PCI slot cover retention screw.

Step 3: Insert a PCI card into the PCI slot (

Figure 4-3).

Step 4: Secure the PCI card with the retention screw (

Figure 4-3).
