Page 45

POC-3174B-A330 Medical Panel PC

Step 3: Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

POC-3174B-A330. See

Figure 4-17.

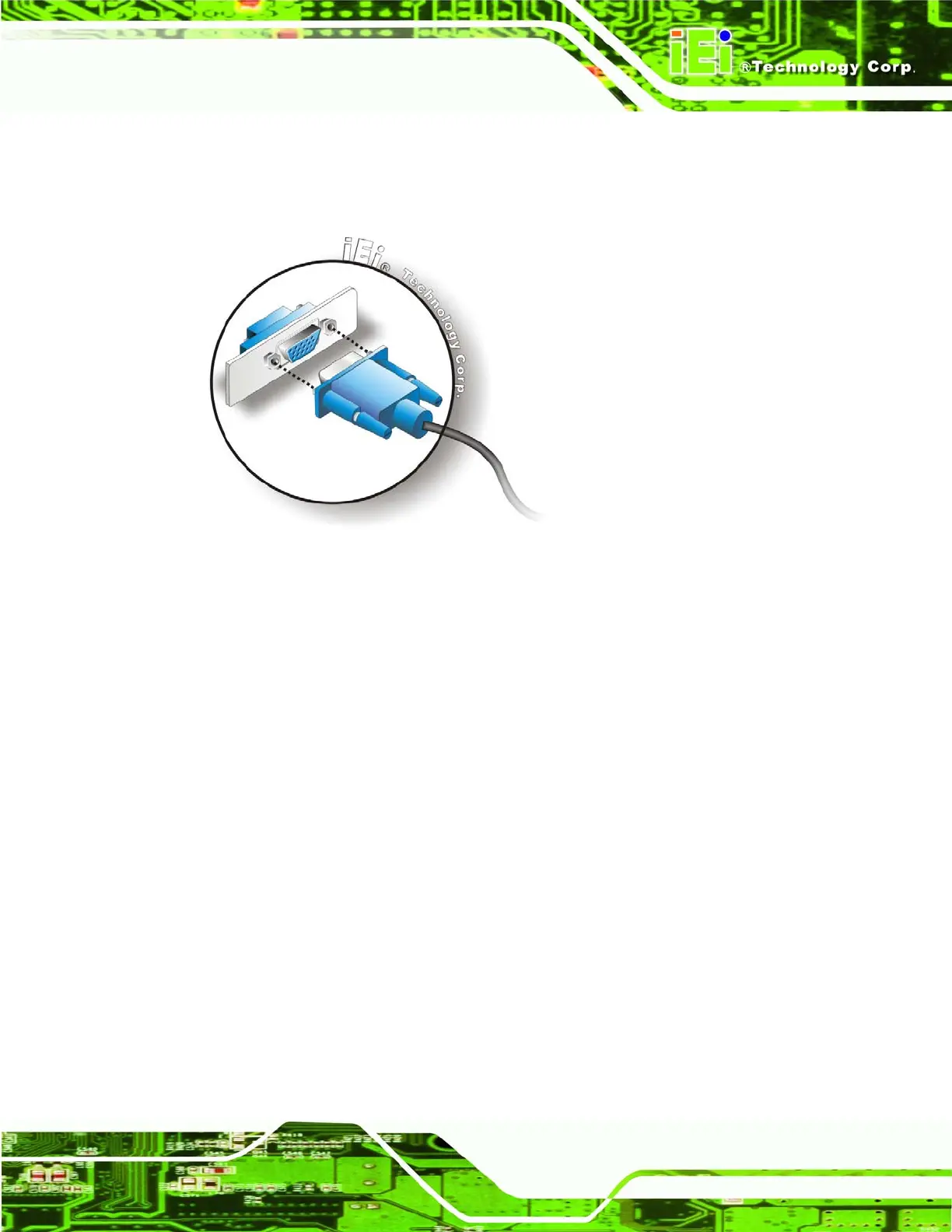

Figure 4-17: VGA Connector

Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector. Step 0:
