Page 106
POC-3174B-A330 Medical Panel PC

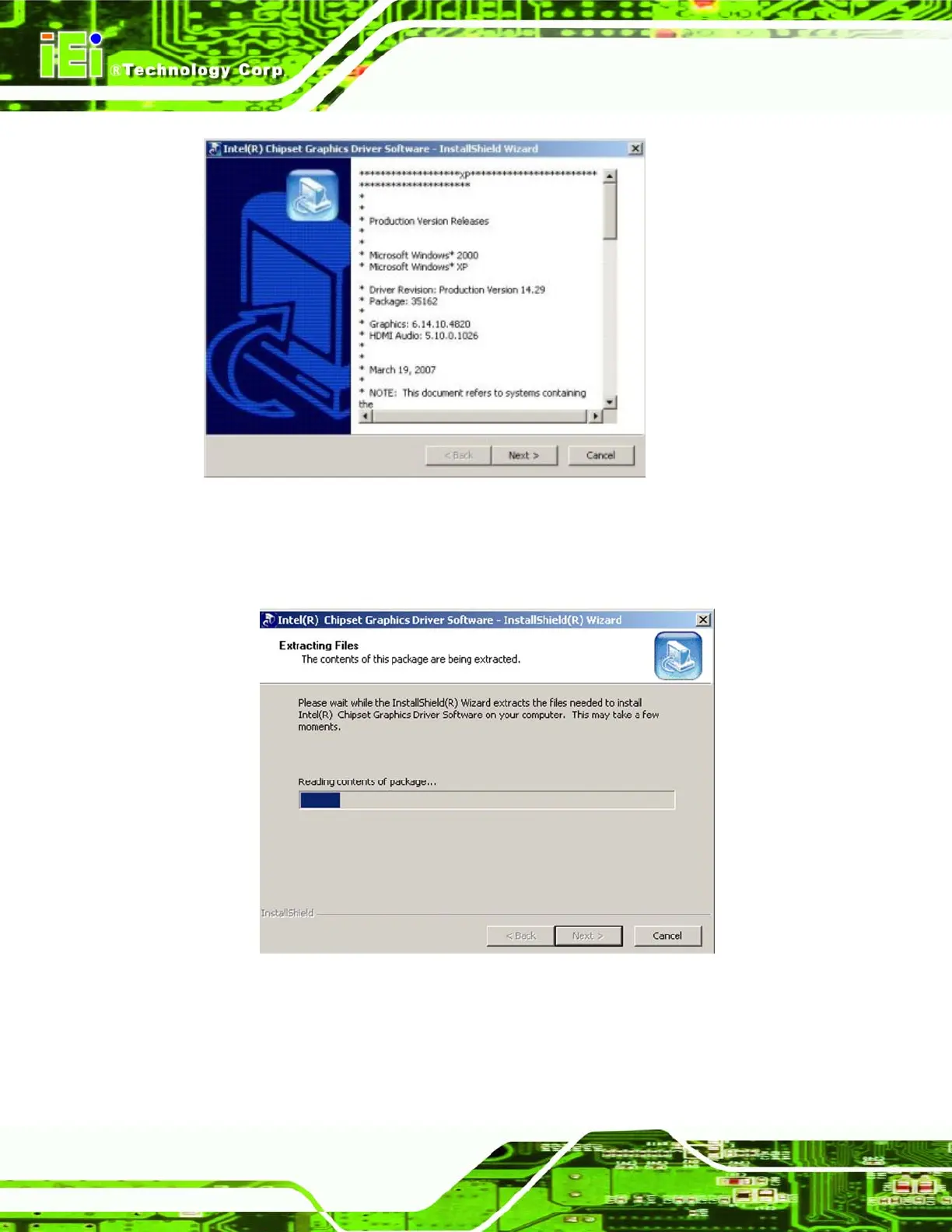

Figure 7-6: GMA Driver Readme File
Step 3:
Click
N
EXT
to extract the GMA
driver files. See
Figure 7-7
.
Figure 7-7: GMA Driver File Extraction
Step 4:
The welcome screen
shown in
Figure 7-8
appears.
121
