Page 14

POC-3174B-A330 Medical Panel PC

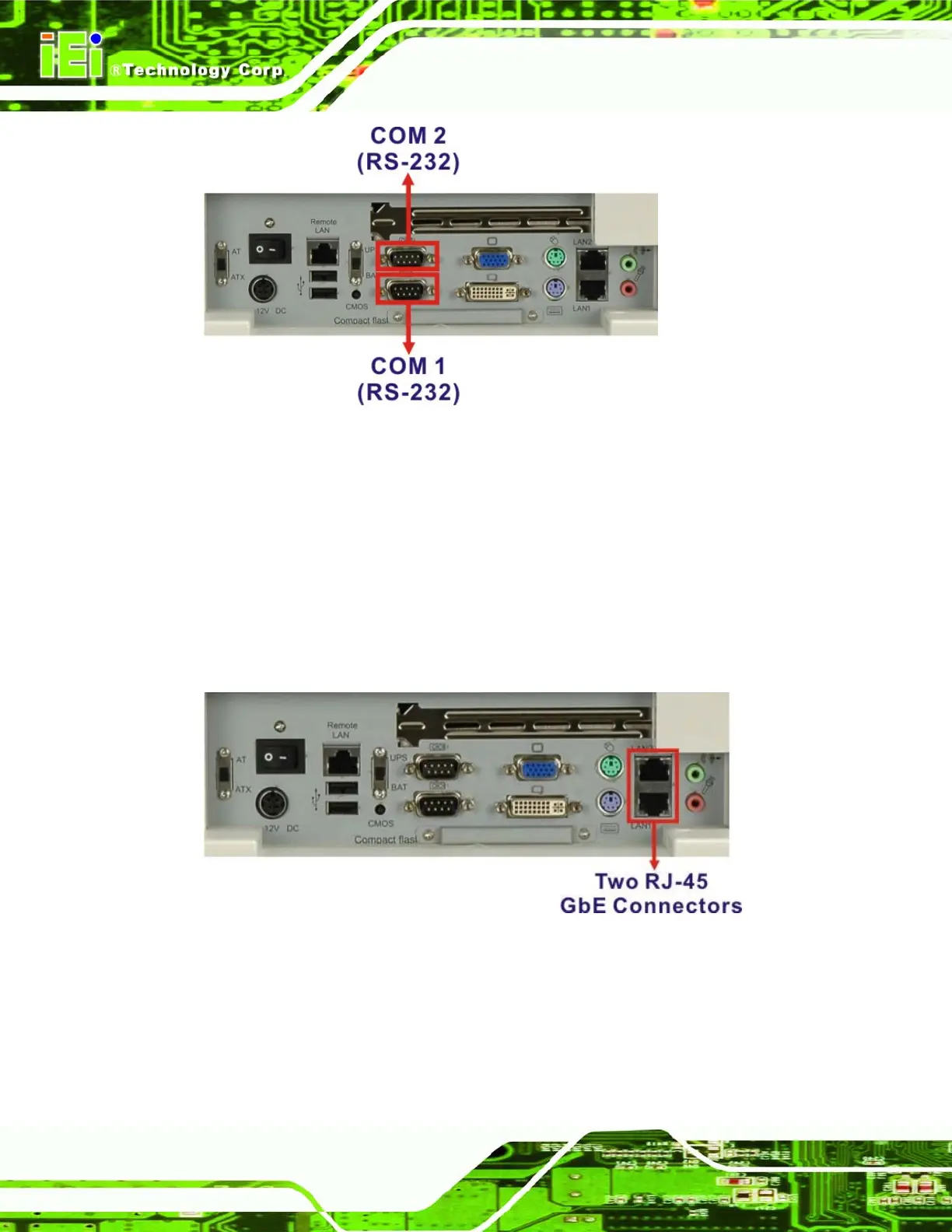

Figure 2-3: COM Ports

2.4.2 LAN Connectivity

The POC-3174B-A330 has two GbE connectors on the bottom panel. The PCIe lane from

the Intel® ICH6 chipset of the POC-3174B-A330 is interfaced to two PCIe gigabit Ethernet

(GbE) controllers, Realtek RTL8111CP GbE controllers. The GbE controllers are then

connected directly to the RJ-45 connectors on the bottom panel and provide external GbE

connectivity.

Figure 2-4: RJ-45 Ethernet Connectors
