Page 49

POC-3174B-A330 Medical Panel PC

5.4 HDD Replacement

The POC-3174B-A330 medical panel PC is preinstalled with an 80 GB SATA HDD. If the

HDD fails, follow the instructions below to replace the HDD.

Step 1: Disconnect the system power cable.

Step 2: Remove the back cover. See Section

5.3.

Step 3: The wall mount bracket is attached to the aluminum platform by eight retention

screws. Remove the eight retention screws from the aluminum platform. (

Figure

5-2).

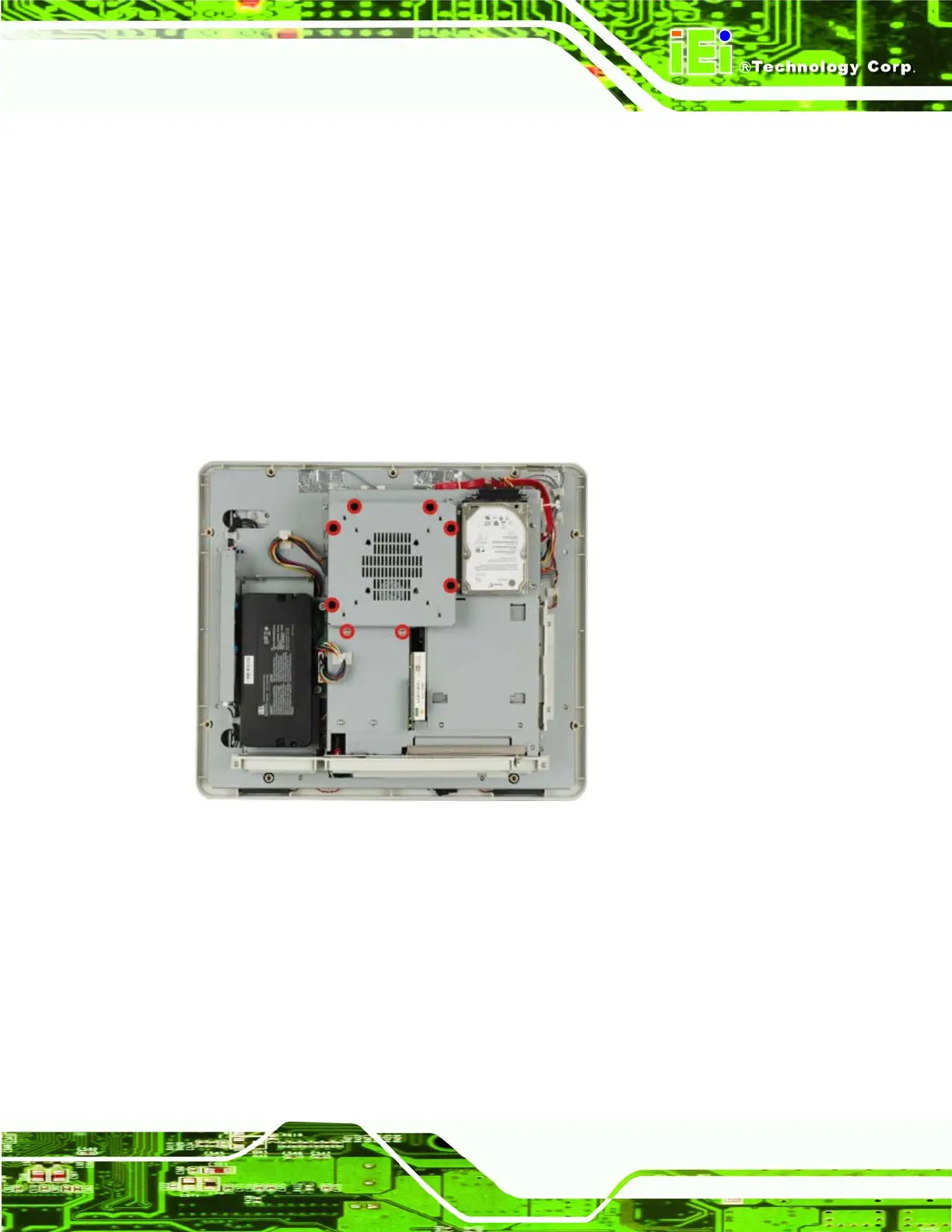

Figure 5-2: Wall Mount Bracket Retention Screws

Step 4: Remove the HDD from the aluminum platform. Remove the four retention

screws from the both sides of the HDD. Disconnect the HDD from the SATA

cable and remove the HDD (

Figure 5-3).
