Page 52

POC-3174B-A330 Medical Panel PC

Step 6: Remove the DDR2 memory module by pulling both the spring retainer clips

outward from the socket.

Step 7: Grasp the DDR2 memory module by the edges and carefully pull it out of the

socket.

Step 8: Install the new DDR2 memory module by pushing it into the socket at an angle

(

Figure 5-6).

Step 9: Gently pull the spring retainer clips of the SO-DIMM socket out and push the

rear of the DDR2 memory module down (

Figure 5-6).

Step 10: Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR2 memory module in the socket.Step 0:

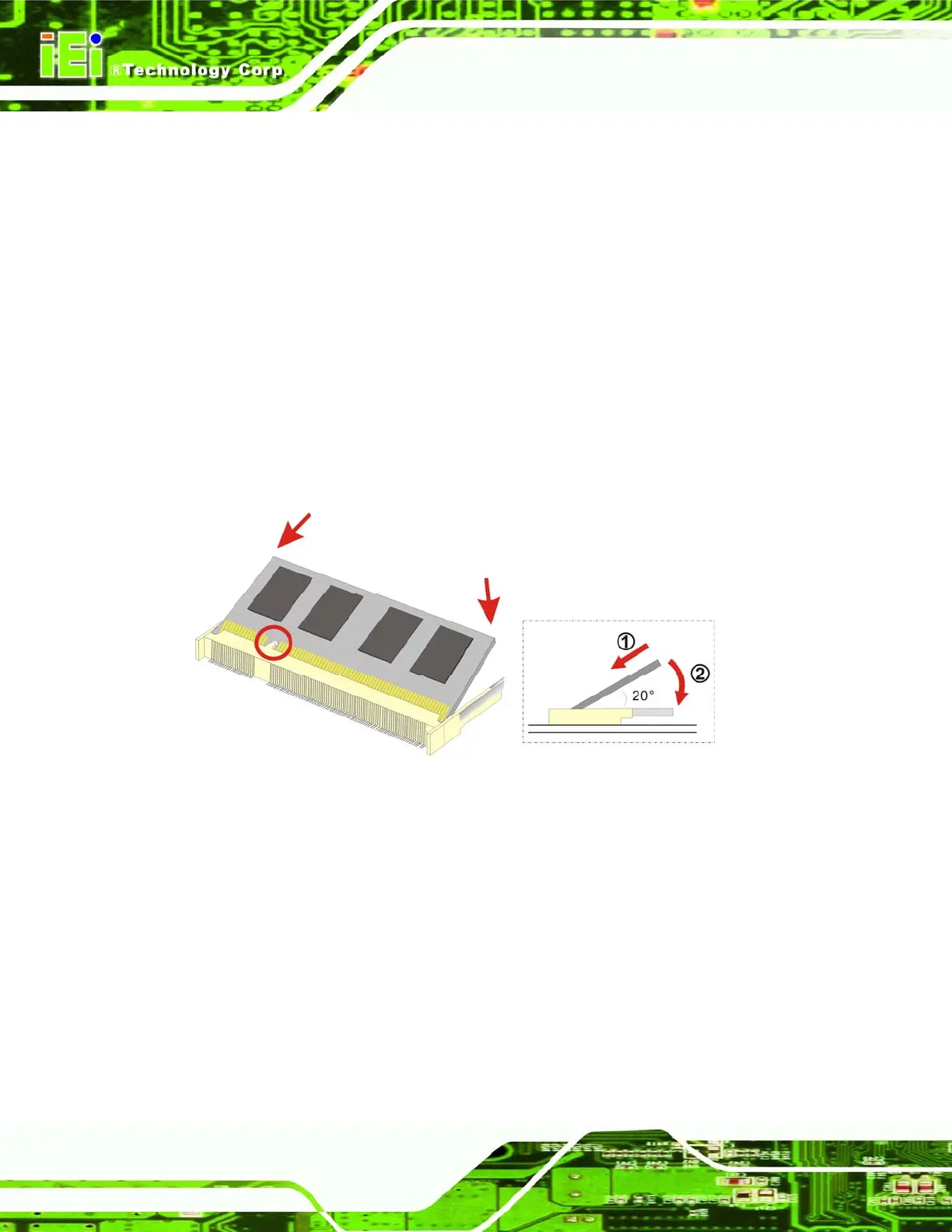

Figure 5-6: DDR2 SO-DIMM Module Installation
