Page 53
POC-3174B-A330 Medical Panel PC
5.6 Jumper Settings

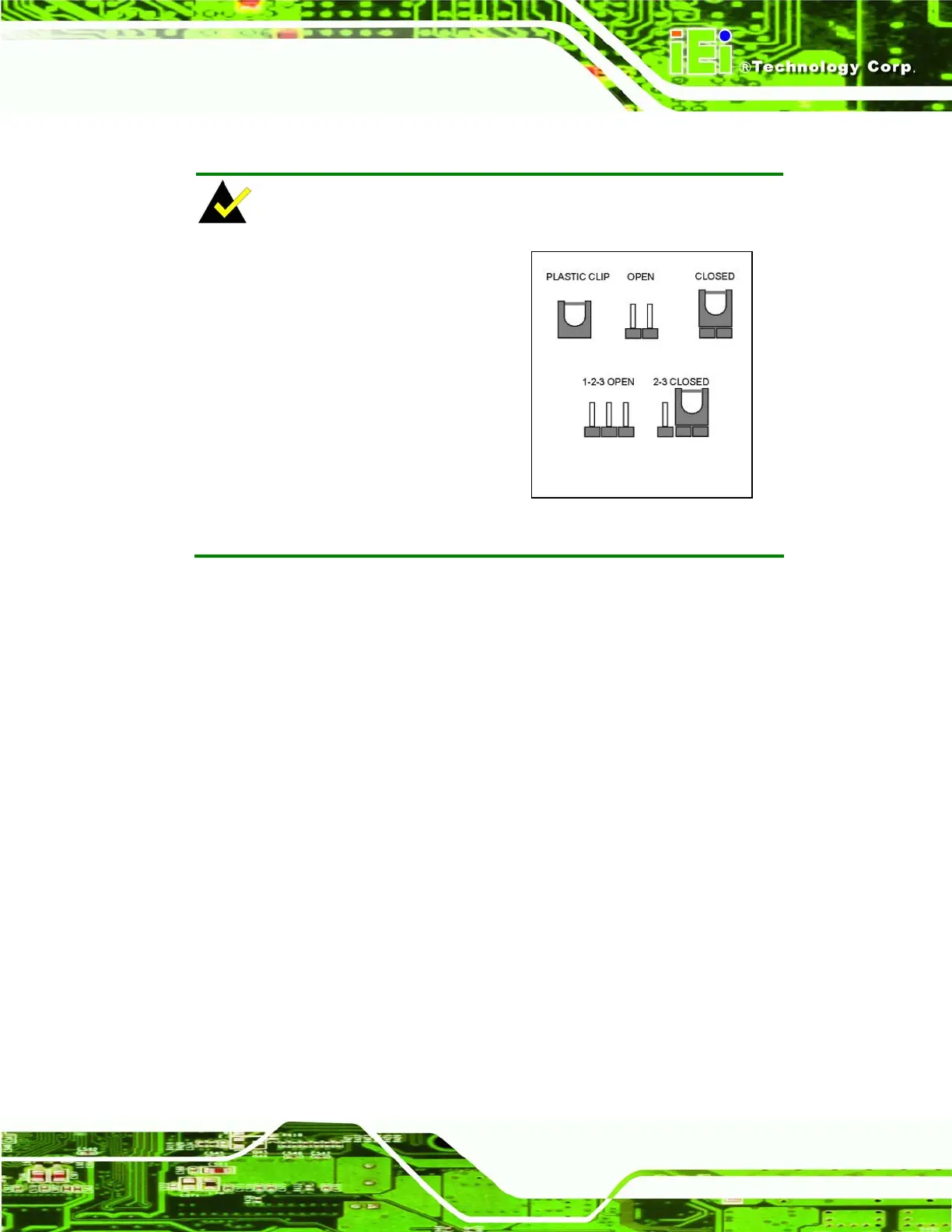

NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper
means removing the plastic clip from a
jumper.
The jumpers listed below can be setup for POC-3174B-A330.
COM port voltage select (J4)
CompactFlash® setup (J7)
5.6.1 COM Port Voltage Select (J4)
J4 jumper is located on the motherboard as shown in Figure 5-7. The J4 jumper is used to
select the COM ports (COM 1 and COM2) pin-9 voltage. To access the jumper, please
refer to Section
5.5 Step 1~Step 3.
Jumper
