2 - INFORMATION FOR USE KID 80 SIV
EN
2 - Pag. 19 / 66
If the Bar End Adjustment subparameter 1 is used, the bar end adjustment value
should be set according to the length of the piece in the 2nd working cycle.
1) the subparameter allows opening the additional bush

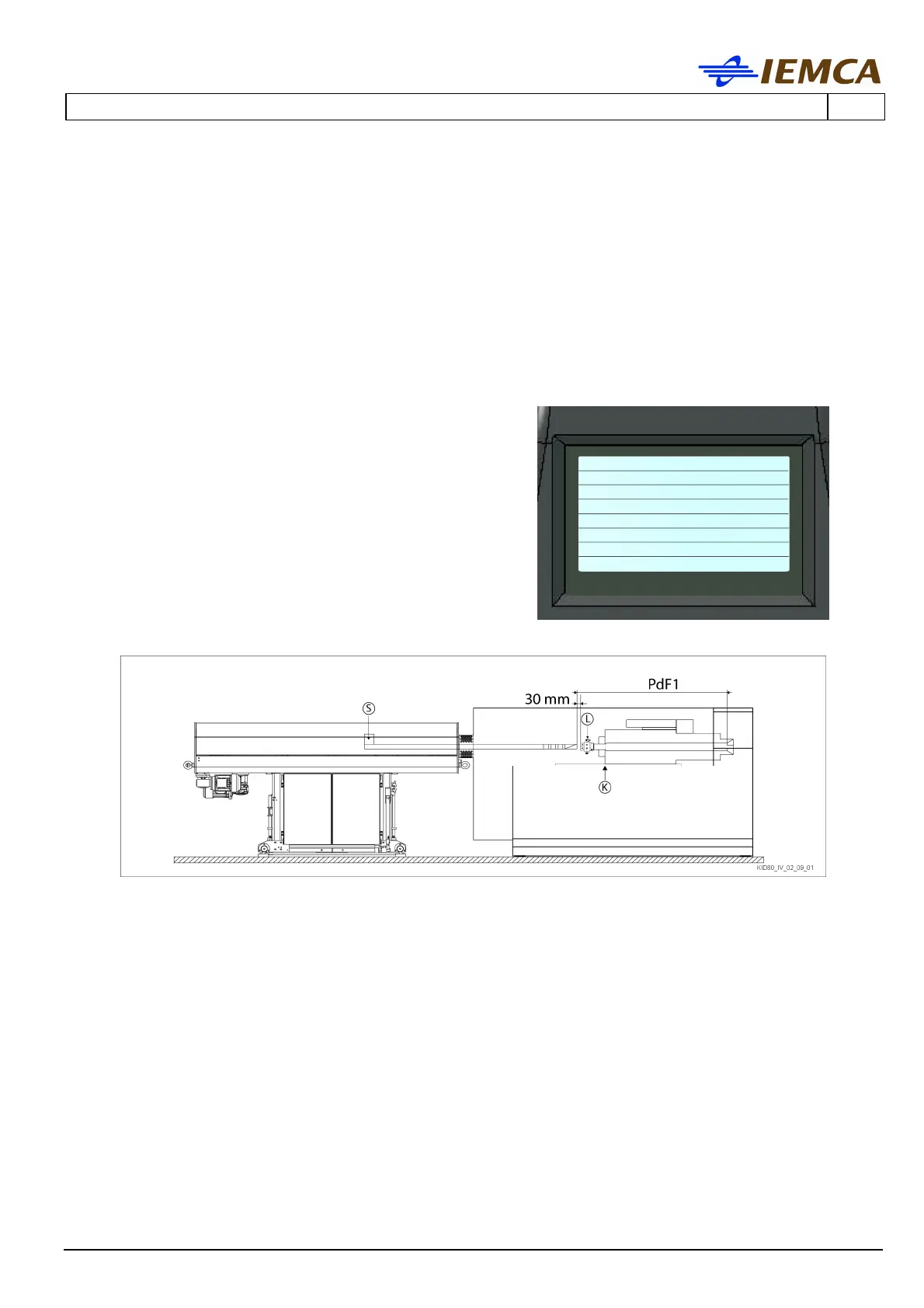

Procedure for setting the "Bar End 1 Adjustment" subparameter for the additional
bush opening
a) Additional bush opening synchronized with the length of the machined piece
- Move the lathe headstock "K" in its completely forwards limit stop position;
- move the bar pusher "S" forwards without the
bar inside the guide channel positioning the
front part at about 30 mm from the additional
bush "L";
- Check the value relative to the position "F" on
the display (which by definition is called
"PdF1")
- the measured value shall be added to the
value set in the "Bar End Adjustment"
parameter and inserted in "Bar End 1
Adjustment" parameter
Optimum position
from 'F'
144.66 (min)
5.69 (inches)
---------------------
