3 - INFORMATION FOR SET UP KID 80 SIV
3 - Pag. 8 / 26
3.6 PARAMETERS FOR REFERENCE VALUES: DESCRIPTION

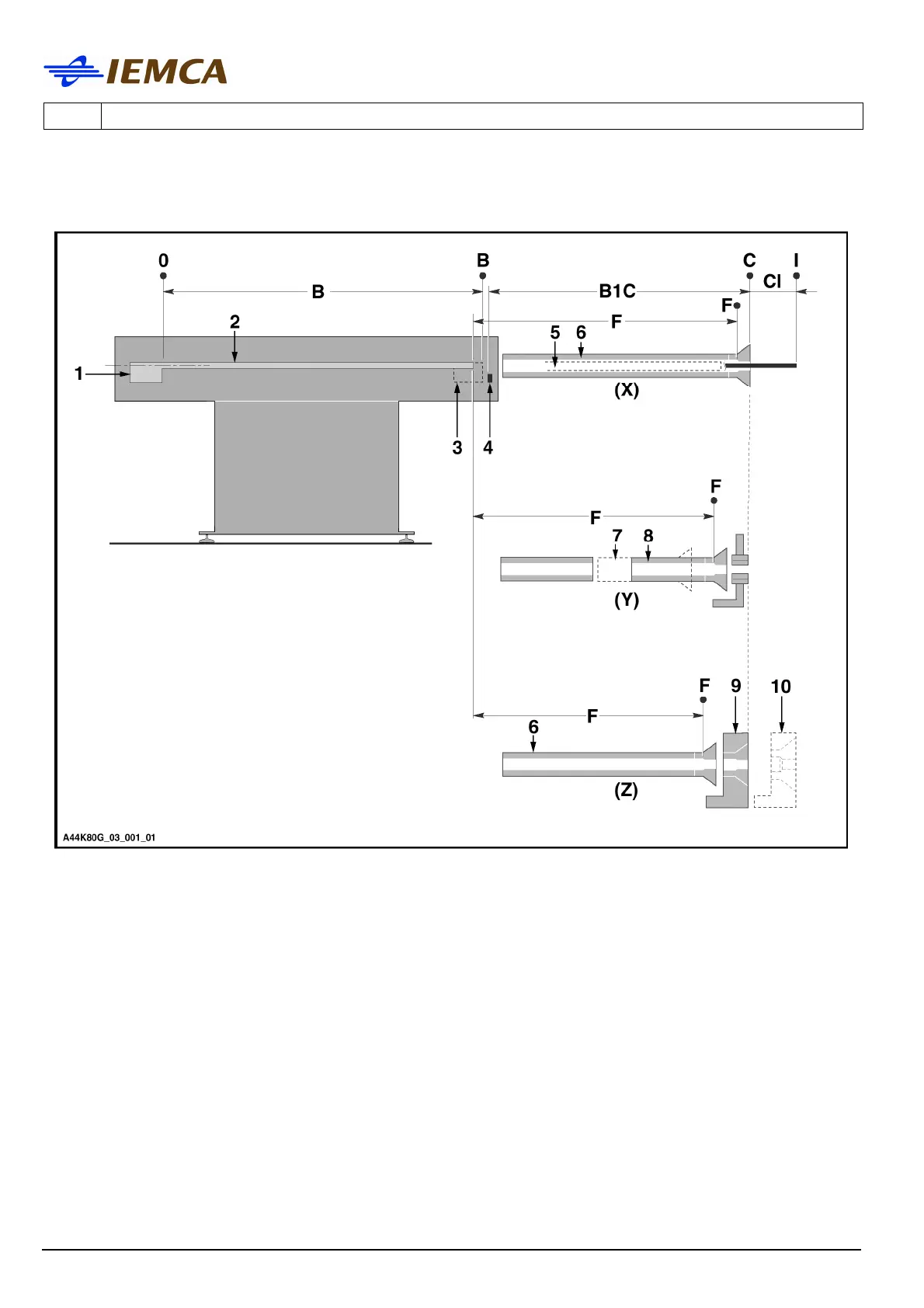

0) BAR FEEDER ZERO SETTING
1) Carriage in its "completely backwards position"
2) Bar pusher in its "completely backwards position"
3) Carriage in "completely forwards position"
4) Short feed gate (flag)
5) Bar pusher in its "completely forwards position"
6) Spindle
7) Headstock in its "completely backwards position"
8) Headstock in its "completely forwards position"
9) Rest in its "completely backwards position"
10) Rest in its "completely forwards position"
(X) Fixed headstock lathe
(Y) Sliding headstock lathe
(Z) Sliding rest lathe
