2 - INFORMATION FOR USE KID 80 SIV
2 - Pag. 34 / 66
1 - (Ejection)
It is possible to choose among the two following solutions:
a) Ejection with the new bar.
b) Ejection with the bar pusher.
a) Ejection with the new bar.

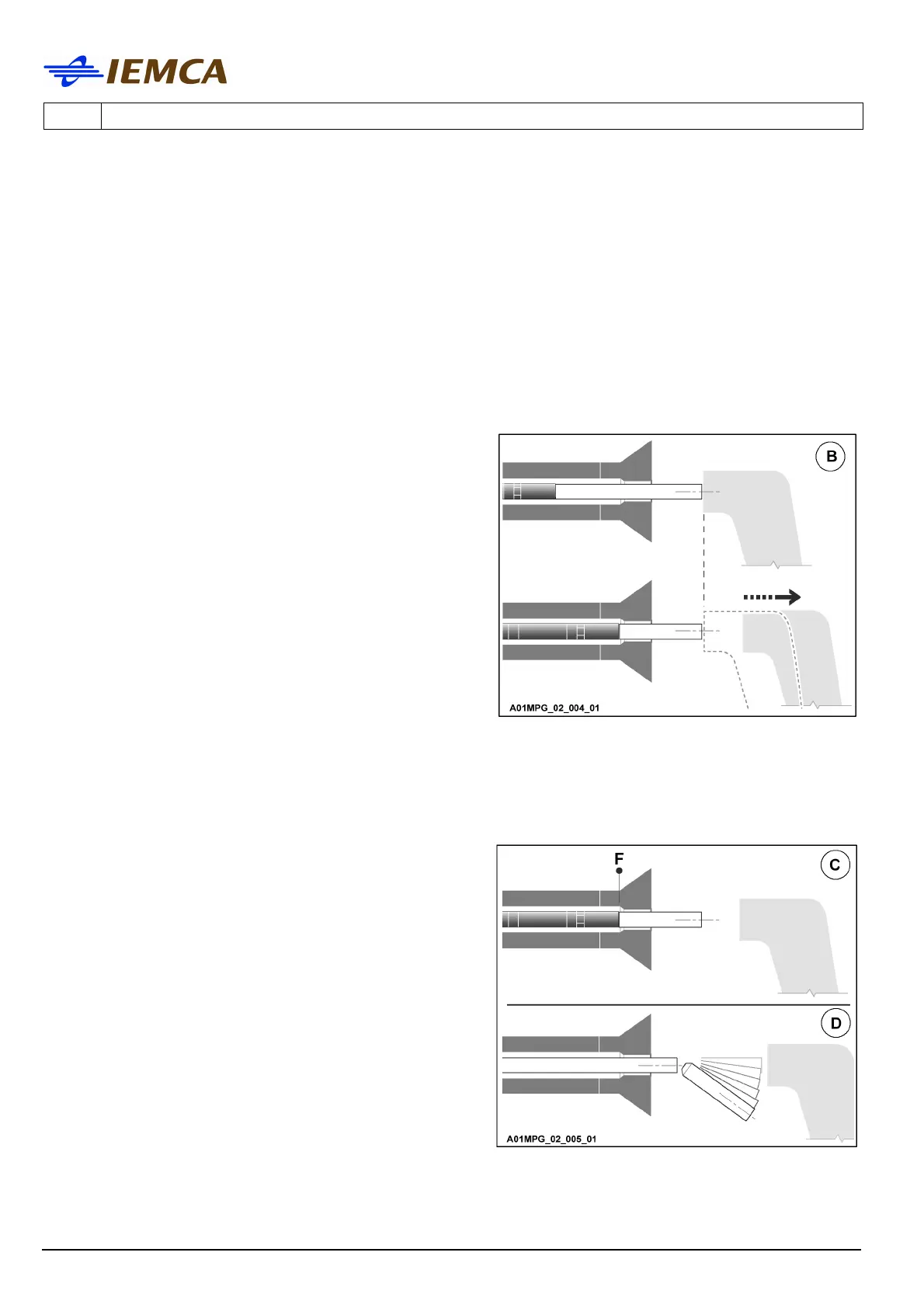

Description of the phase order:
(B) - The lathe receives the "BAR END" signal from the bar feeder, finishes the machining of
the last piece, then goes in the subprogram (bar stop removal) and sends the "FEEDING"
and the "BAR CHANGE" signals;
(C) - The bar pusher moves up to point F (maximum feeding point of the bar pusher) and
the bar feeder carries out the bar change;
(D) – Through the feeding, the new bar ejects the remnant and moves into the facing
position.
b) Ejection with the bar pusher.
