IEMCA KID 80 - Page 98

EN

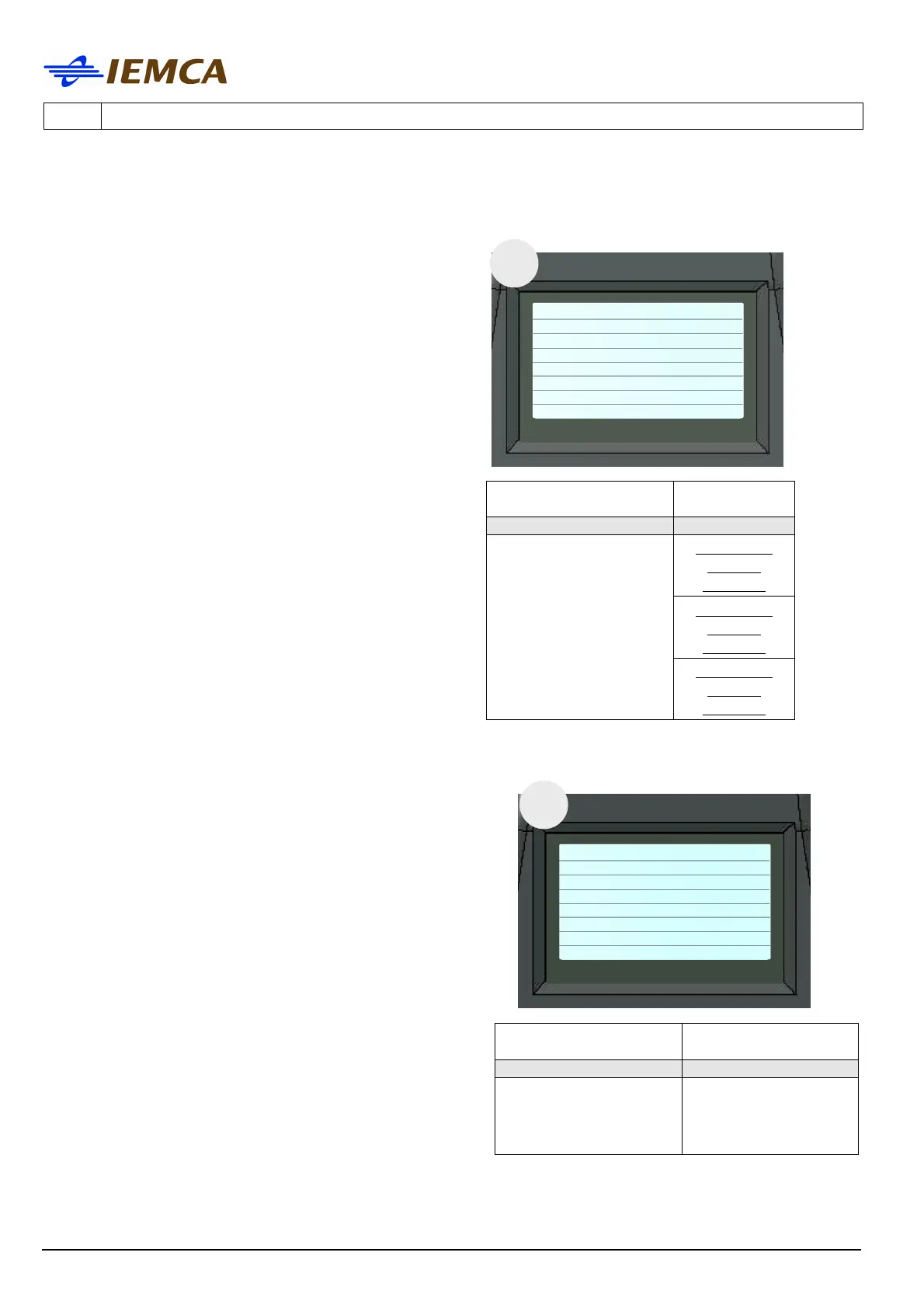

3 - INFORMATION FOR SET UP KID 80 SIV
3 - Pag. 10 / 26
no. 62 Bush value (BO)
This parameter value should be entered.
This is the position of the bar pusher
carriage where the half-bushes are opened;
it can be modified with parameter 16.
no. 63 Flag-collet distance (B1C)
This parameter value should be entered.
This is the value of point C (facing point),
that is the distance from the short feed gate
12 (of the bar feeder) and the front edge of
the lathe collet.
62
no. 62 Bush
value (BO)
DEFAULT VALUE
PROGRAMMABL
E VALUE
KID KID
2070
32 N=2390
L=2060
LL=1730
37 N=2930
L=2600
LL=2270
44 N=3590
L=3260
LL=2930
63
no. 63 Flag to
collet
distance (B1C)
XXXXX (mm)
(inches)
DEFAULT VALUE
PROGRAMMABLE
VALUE
KID KID
1400 2590
