Intel Stratix 10 Configuration User Guide

2. Intel Stratix 10 Configuration Details

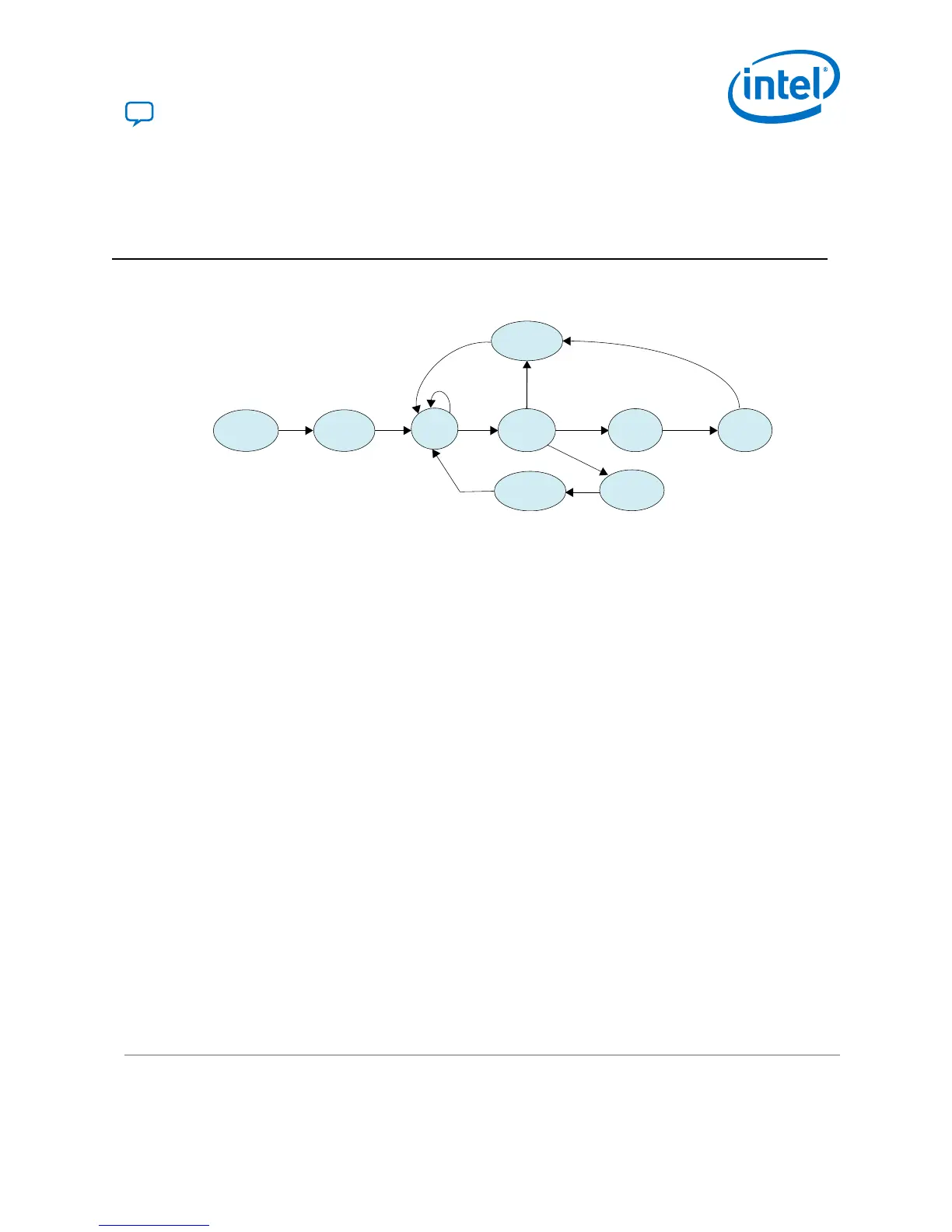

2.1. Configuration Flow Diagram
Power-On
Idle
Configuration
Pass
Error
SDM
Startup
Device
Clean
User
Mode
nCONFIG = LOW
nSTATUS = LOW Pulse
CONF_DONE = HIGH
nCONFIG = LOW
Configuration fail
All configuration
data received
nCONFIG
= HIGH
Device
Clean
nCONFIG = LOW
The following section provides information about each configuration state:
Power Up
• Power up as per specifications in the Intel Stratix 10 Power Management User
Guide.
•
The V
CCERAM
is the first power, V
CCR
is second, and V
CCIO_SDM
is last.
• Device wide Power on Reset (POR) asserts after power supplies reach operating
voltage. POR deasserts after reach trip-out voltage. The external power supply
ramp must not be slower than the minimum ramping rate until the supplies reach
the operating voltage.
•
Most SDM_IO pins remain pulled weak high internally. The SDM_IO0, SDM_IO8,
SDM_IO16 pins remain low internally.
SDM Startup
• SDM runs firmware stored in the SDM internal boot ROM.
• Boot ROM authenticates Intel-generated configuration bitstream.
•
The SDM samples the MSEL pins during power-on.
•
If MSEL is set to JTAG, the SDM remains in the Startup state.
