Intel Stratix 10 Configuration User Guide

4. Click OK to confirm and close the Device and Pin Options.

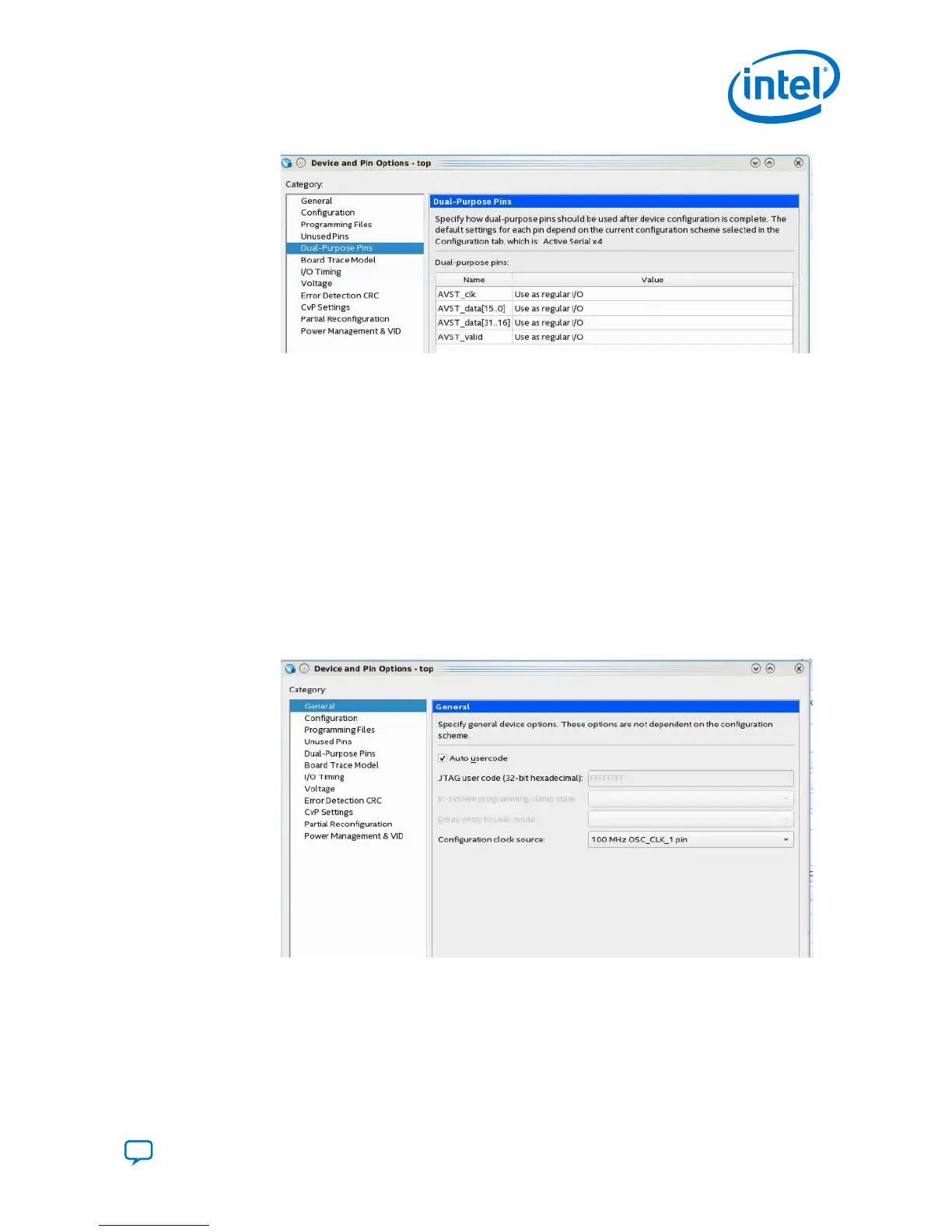

2.5. Setting Configuration Clock Source
You must specify the configuration clock source by selecting either the internal
oscillator or OSC_CLK_1 with the supported frequency. By default, the SDM uses the
internal oscillator for device configuration. Specify an OSC_CLK_1 clock source for the
fastest configuration time.
Complete the following steps to select the configuration clock source:
1. Specify an OSC_CLK_1 clock source for the fastest configuration time. On the
Assignments menu, click Device.
2. In the Device and Pin Options select the General category.
3. Specify the configuration clock source from the Configuration clock source drop
down menu.
4. Click OK to confirm and close the Device and Pin Options.
Related Information
OSC_CLK_1 Clock Input on page 24
2. Intel Stratix 10 Configuration Details
UG-S10CONFIG | 2018.11.02
Send Feedback
Intel Stratix 10 Configuration User Guide
23
