Intel Stratix 10 Configuration User Guide

a.
In the Intel Quartus Prime software, select Tools ➤ System Debugging
Tools ➤ System Console to launch the system console.
b.
In the Tcl Console pane, type source rsu1.tcl to open the example of Tcl
script to perform the remote system upgrade commands.
c.

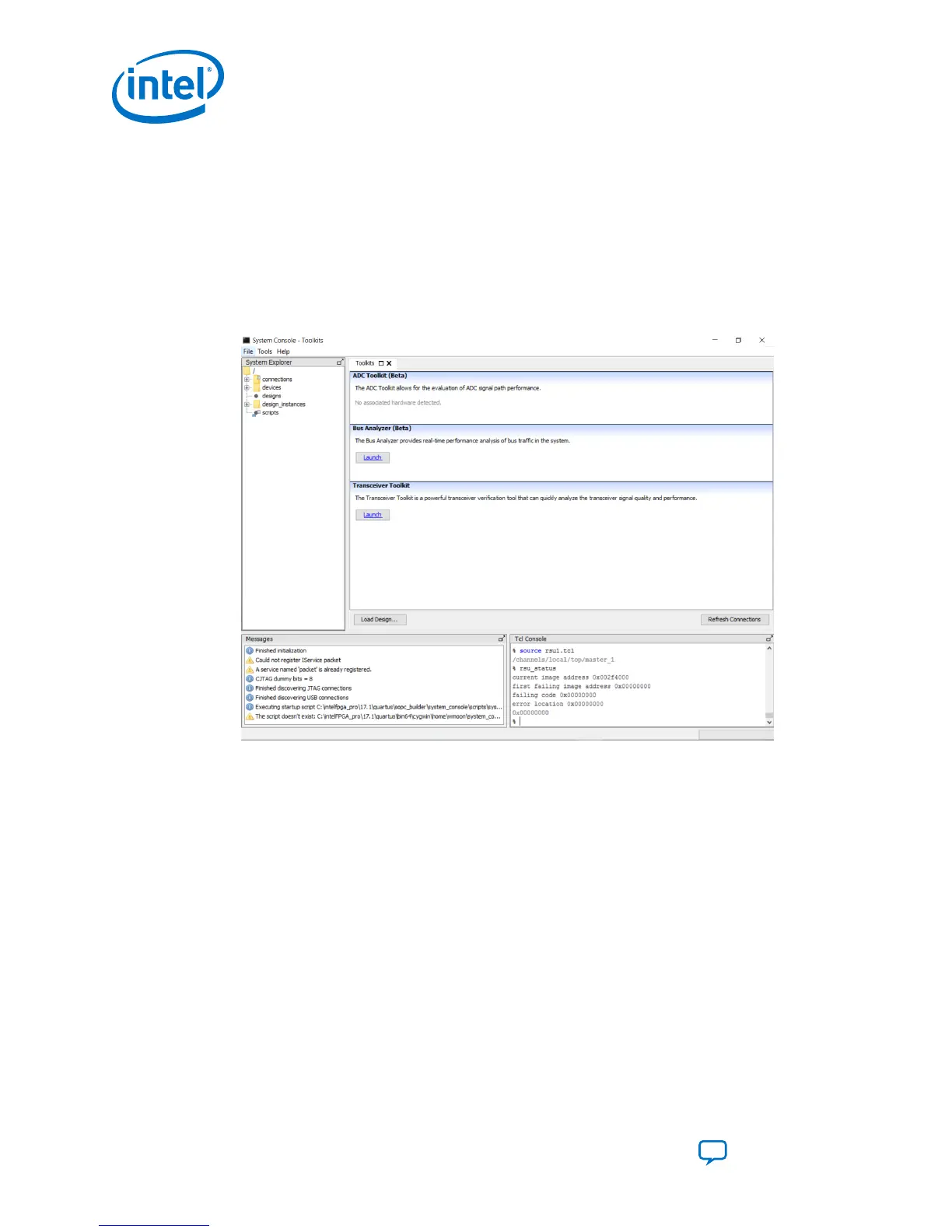

Type the rsu_status command to report the current remote system upgrade
status. You can retrieve the current running image address from the remote
system upgrade status report. The current image address must match with
the start address for the application image printed in the .map file, which
indicates that the device is currently configured with the application image.
5.10. Reconfiguring the Device with an Application or Factory
The following steps describe the process to reconfigure the device with the desired
application image or factory image using operation commands after the device is
entering user mode.
1.
The remote system upgrade host sends the RSU_IMAGE_UPDATE command to
perform the remote system upgrade to the desired application image or factory
image.
a. For example, in the Tcl console of the system console, type the following
commands to perform the remote system upgrade to the factory image and
vice versa.
i.
rsu_image_update 0x00110000
5. Remote System Upgrade
UG-S10CONFIG | 2018.11.02
Intel Stratix 10 Configuration User Guide
Send Feedback
92
