Intel Stratix 10 Configuration User Guide

5.9. Programming Flash Memory with Initial Remote System
Upgrade Image
1.
Open Programmer, click Add File. Select the generated .jic file
(Initial_RSU_Image.jic) and click Open.
2.
Check the Program/Configure check box for the attached .jic file.
3. To begin programming the flash memory with the initial remote system upgrade
image, click Start.

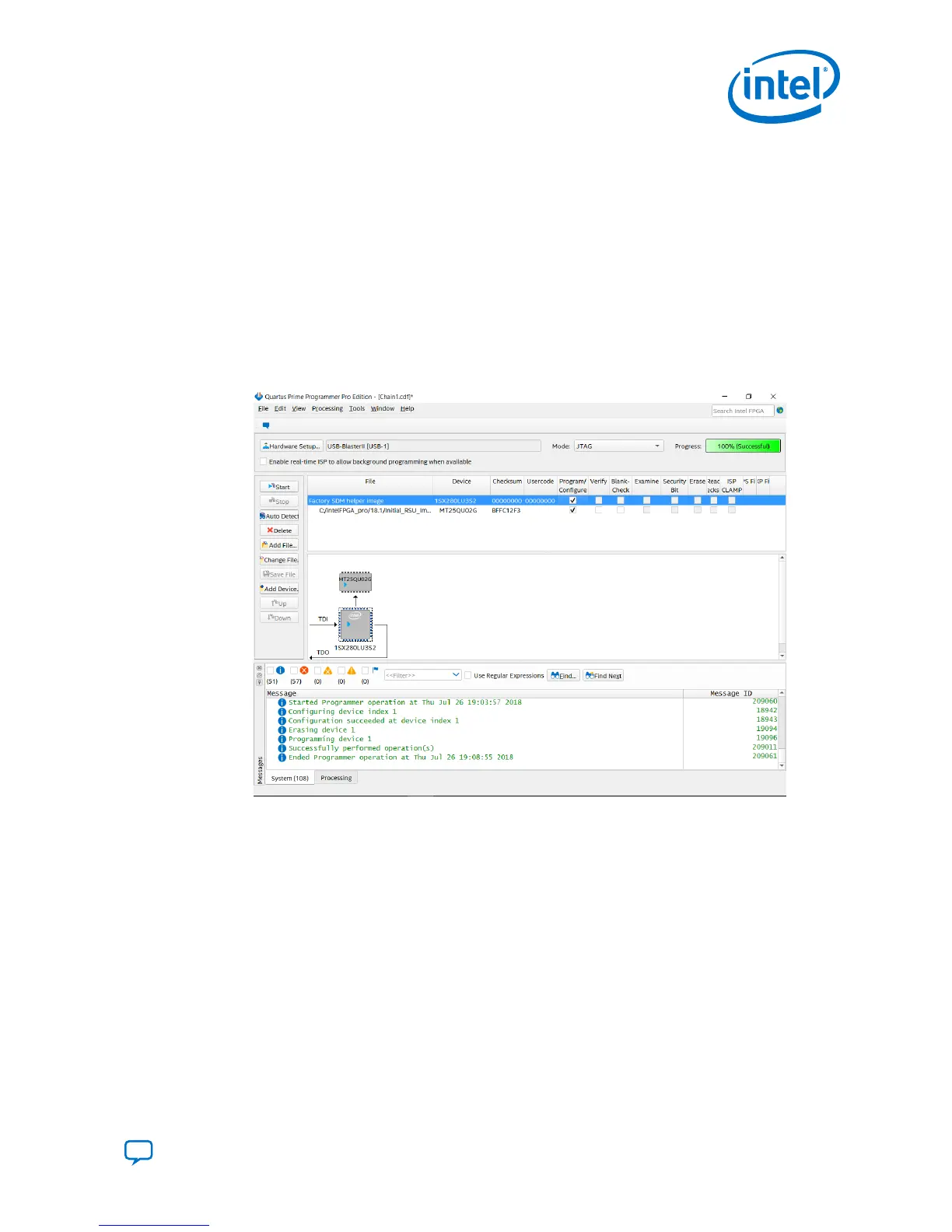

4. Configuration is complete when the progress bar reaches 100%. Power cycle the
board to automatically configure the Intel Stratix 10 device with the application
image using the AS x4 configuration scheme.
Note: This example does not assign the direct to factory pin. Consequently, the
programmer configures the device with the application image. The
Programming configures with the application image if the design does not
use the direct to factory pin.
5.
Use the RSU_STATUS command to determine which bitstream image the
programmer is using as shown in the following example:
5. Remote System Upgrade
UG-S10CONFIG | 2018.11.02
Send Feedback
Intel Stratix 10 Configuration User Guide
91
