2.7. Configuration and Programming Files
Intel Stratix 10 configuration and external flash programming involves multiple file
types and tools.

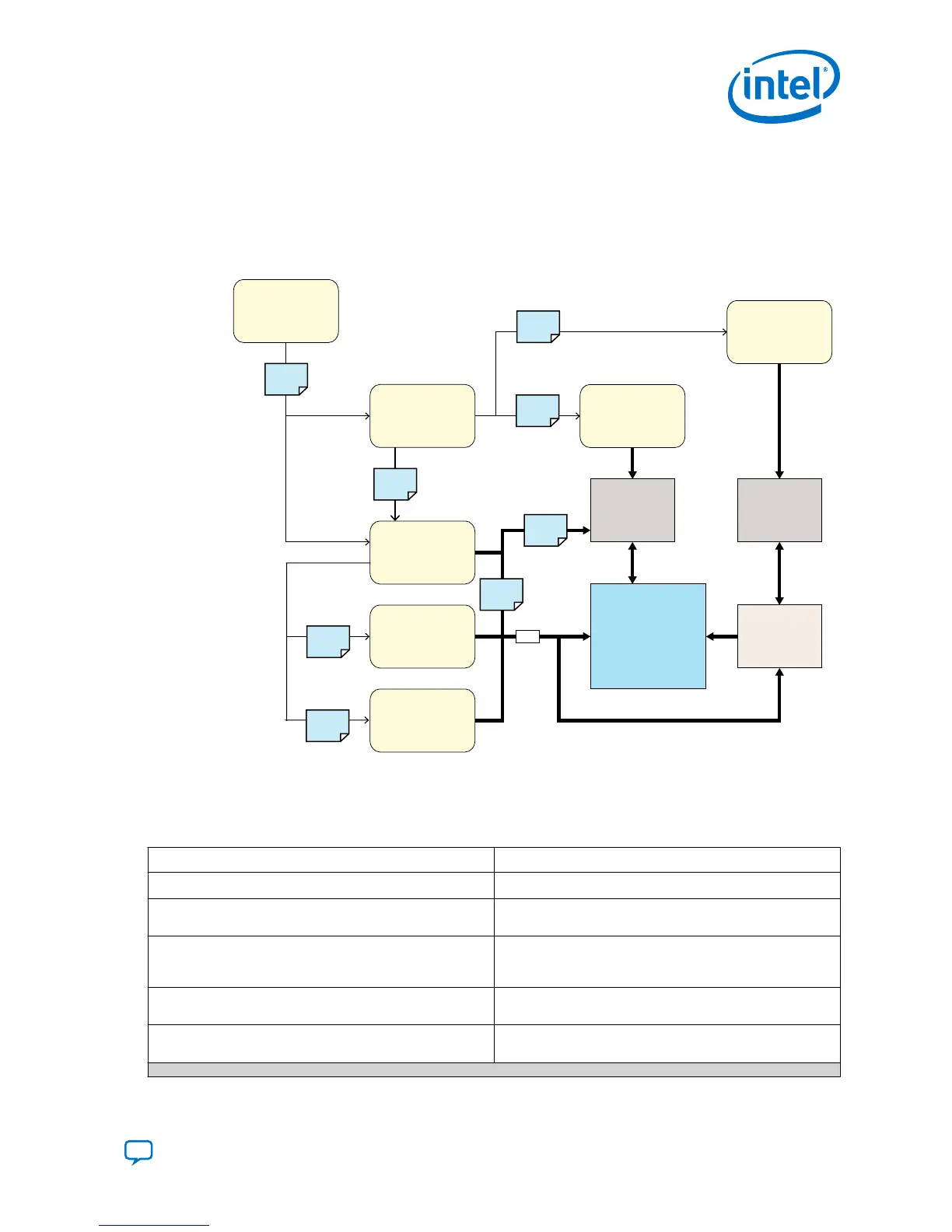

Figure 6. Overview of Intel Quartus Prime Supported Files and Tools for Configuration
and Programming
Quartus Prime
Compilation
Quartus Prime
Convert
Programming File
Quartus Prime
Programmer
3
rd
Party
Programmer
3
rd
Party
Programmer
JTAG Debugger or
3
rd
Party JTAG
Programmer
JAM Player or
3
rd
Party
JAM Player
JAM/
JBC
SOF
SVF
RBF
RPD
AS x4
JIC
Intel
Stratix 10
Flash
External
Host
Memory
JTAG
JIC
POF
Table 8. Supported Programming and Configuration File Format
File Format Description
SRAM Object File (.sof/SOF)
Configuration file for JTAG configuration
Raw Binary File (.rbf/RBF)
Configuration file for use with a third-party data source,
CvP, partial reconfiguration, or HPS data source
Programming Object File (.pof/POF)
Serial flash and external flash programming file for AS and
Avalon-ST configuration using Intel Quartus Prime
Programmer
JTAG Indirect Configuration File (.jic/JIC)
Serial flash programming file for AS configuration using
Intel Quartus Prime Programmer
Raw Programming Data File (.rpd/RPD)
Serial flash programming file for AS configuration using
third-party programmer
continued...
