Chapter 5. Installing ADU
5.1 Antenna Dimensions

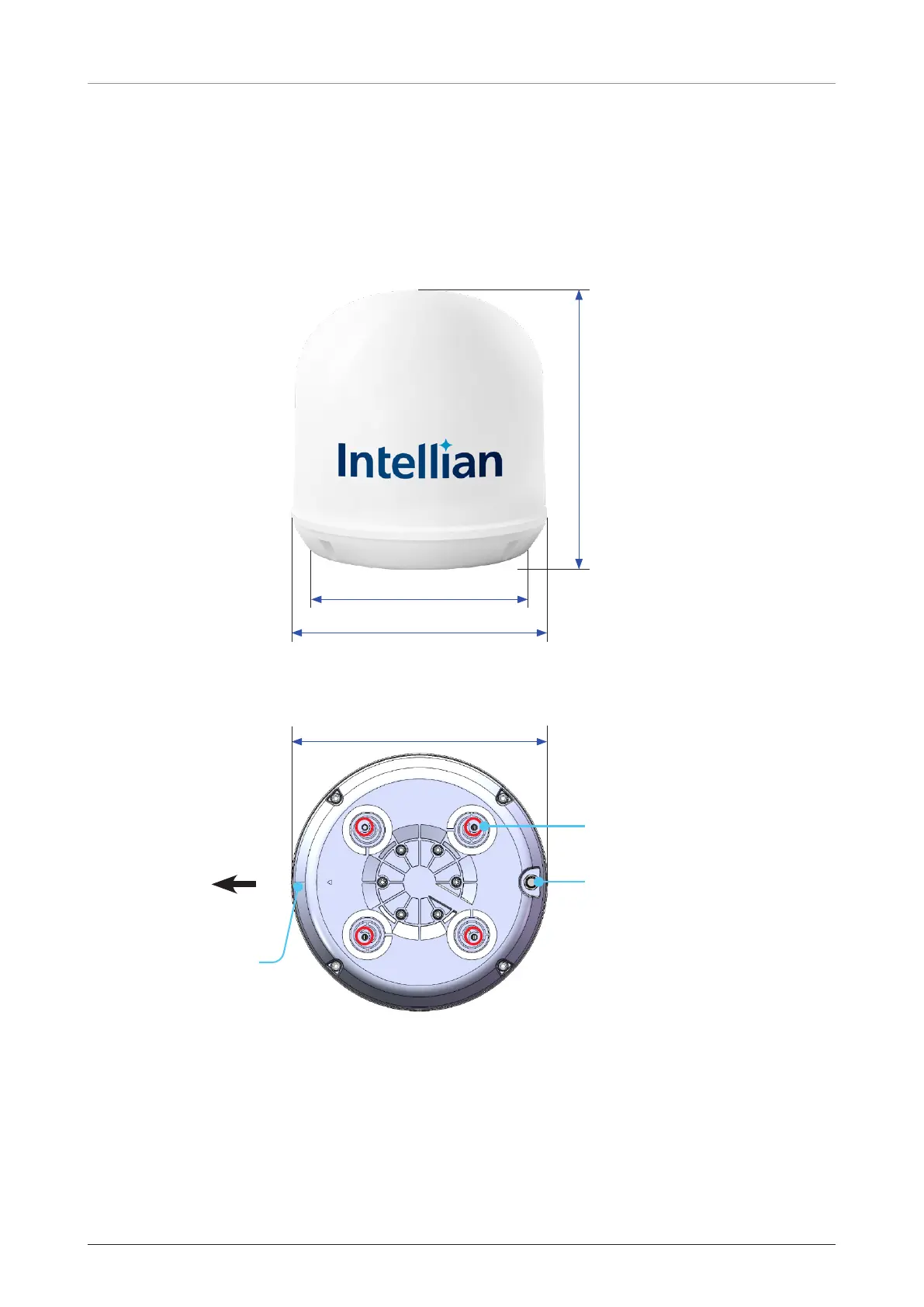

Confirm the height and diameter of the antenna unit shown in the following figure before installing it.
Unit: mm (inch)
295 (11.61)
Ø250 (9.84)
Ø291 (11.45)
Ø291 (11.45)
RF Port
BOW Mark
Mounting Holes (4 ea)
BOW
Figure 8: Antenna Dimensions
