Installing ADU
23
5.2 ADU Mounting Hole Pattern
Use the supplied mounting template when drilling mounting holes on the mast. The hole placement for the
antenna must match the mounting hole pattern on the template.
The lower radome has an industry-standard mounting hole with four mounting points. This hole pattern is
compatible with other companies’ mounting holes. Use the mounting holes to secure the antenna to the
desired mounting surface.
Intellian offers the Antenna Pole Mount Kit (separate purchase) that uses holes (with M6 Bolts) to mount the
antenna on a pole.
WARNING
When reusing an existing mast, check the condition of holes on the mast and make sure those are proper to
use compared to the hole locations and sizes printed on the mounting template.
Antenna Mounting Template
Doc. No. KF2006
NOTE: This is a real-size template. Make sure the hole
placement for the antenna is the same with the template
even though the mast has a different shape, and mount
the antenna on a flat surface of the mast.
Bow
175.4 mm (6.90")
124 mm (4.88”)
124 mm (4.88")
Drill Hole
Ф 8mm (0.31")
diameter in 4 positions
175.4 mm (6.90")

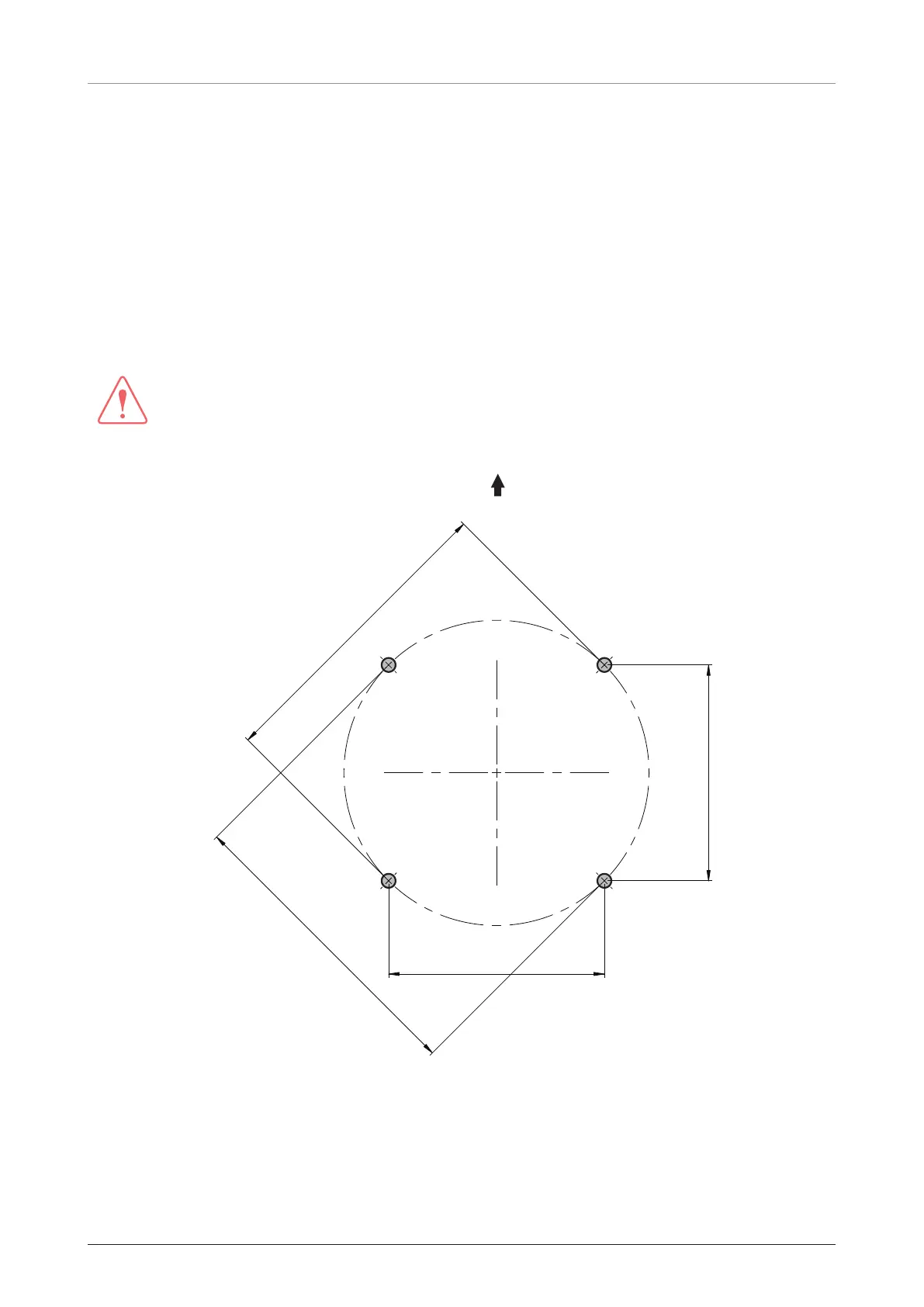

Figure 9: ADU Mounting Hole Pattern
To Next Page
