Installing ADU
27
Use a torque wrench.
x Three Times
M12 x 12 L
Socket Set Screw
40 A Pole Bushing
*Pole Tube
40 A Pole
BOW
A

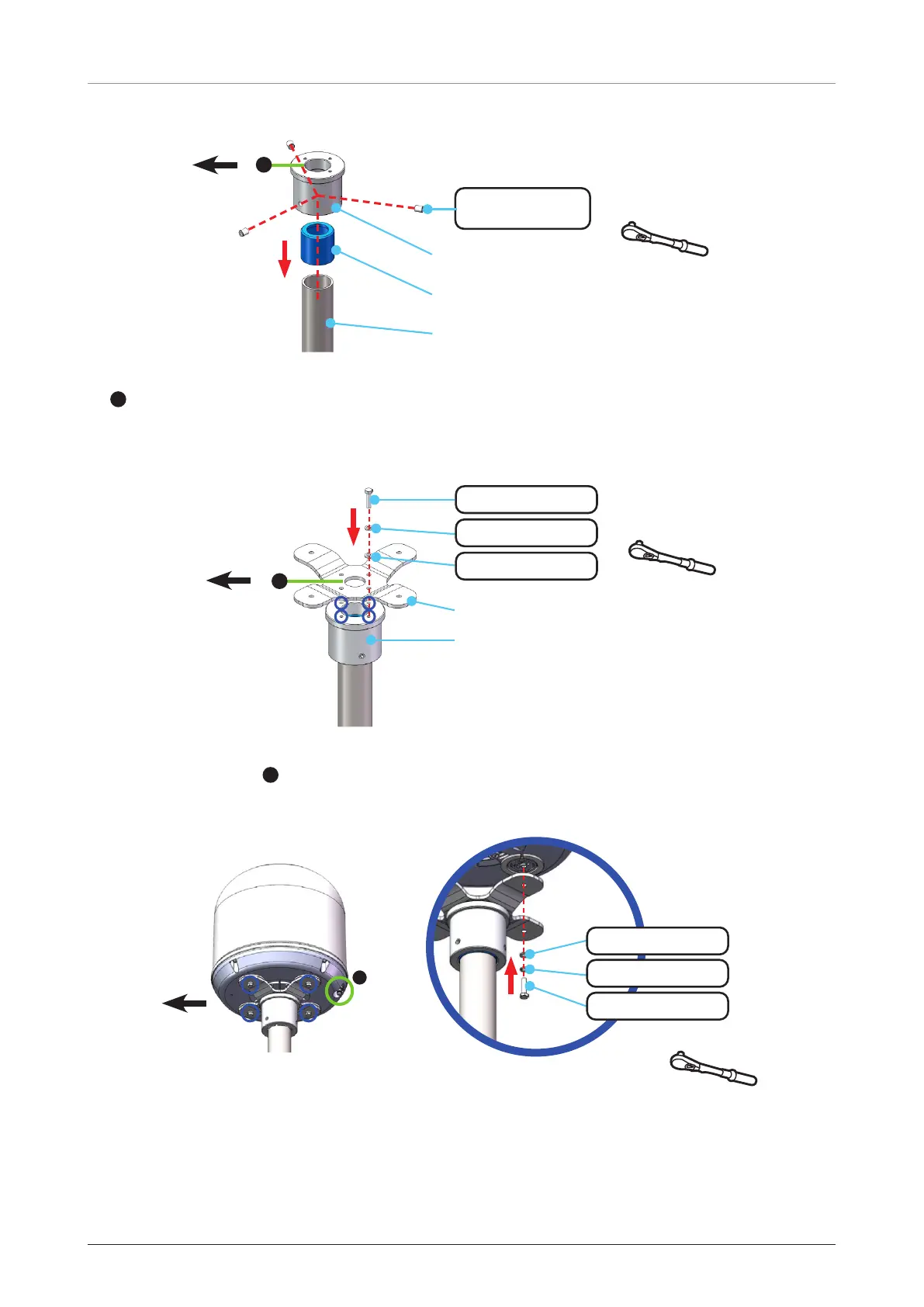

Figure 12: Installing 40 A Pole Bushing inside Pole Tube
2.
A
The position between the end of legs of the pole bracket must be aligned with the BOW direction.
Place the pole bracket onto the pole tube then tighten them using bolts. Before assembling bolts, apply
Loctite #263 to the bolt’s threads to ensure the bolts are fastened firmly.
x Four Times
Pole Bracket
Pole Tube
Use a torque wrench.
BOW
A
M6 x 20 L Hex. Bolt
M6 Spring Washer
M6 Flat Washer
Figure 13: Installing Pole Bracket
3. Check the position of
A
the antenna’s RF port and BOW direction. Place the antenna on the pole-
mounted bracket then tighten them using bolts. Before assembling bolts, apply Loctite #263 to the bolt’s
threads to ensure the bolts are fastened firmly.
BOW
x Four Times
Use a torque wrench.
A
M6 x 30 L Hex. Bolt
M6 Spring Washer
M6 Flat Washer
Figure 14: Mounting Antenna on Pole Mounted Bracket
To Next Page
