Installing ADU
25
Unit: mm (inch)
* NOTE: There is no need to install
gusset at the top end of the mast.
Mounting Plate Ø220 (8.66)
Bolt Hole Ø175.4 (6.9)
8 (0.31), 4 ea
45º
Plate Thickness
Min. 6 (0.23)
Max. 8 (0.31)
Support Pedestal,
125A Pipe (5 inches)
Min. 600 (24)
Max. 1200 (47)
BOW

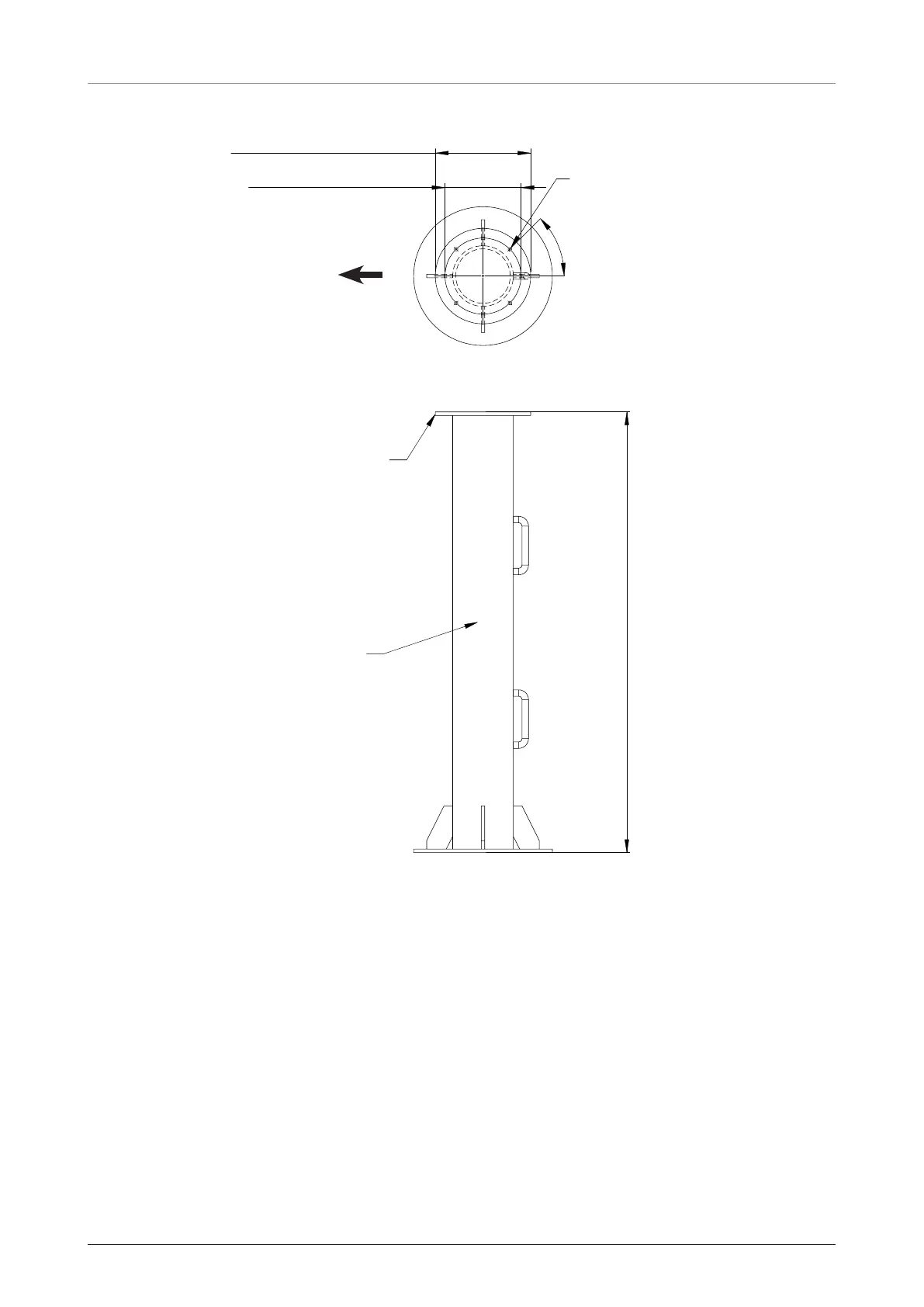

Figure 10: Recommended Mast Design
