FB250/Fleet One - Marine Satellite Communication System
42
6.6.4 Connecting BDU to ADU (Antenna)
Intellian provides the Antenna RF Cable (LMR200, 25 m) for connecting ADU and BDU. Connect the
Antenna RF Cable from the Antenna port on the back of the BDU to the RF port on the bottom of radome
(Antenna).
Above Decks
Below Decks
BDU
ADU (Antenna)
Antenna
Data, 48 V DC Power

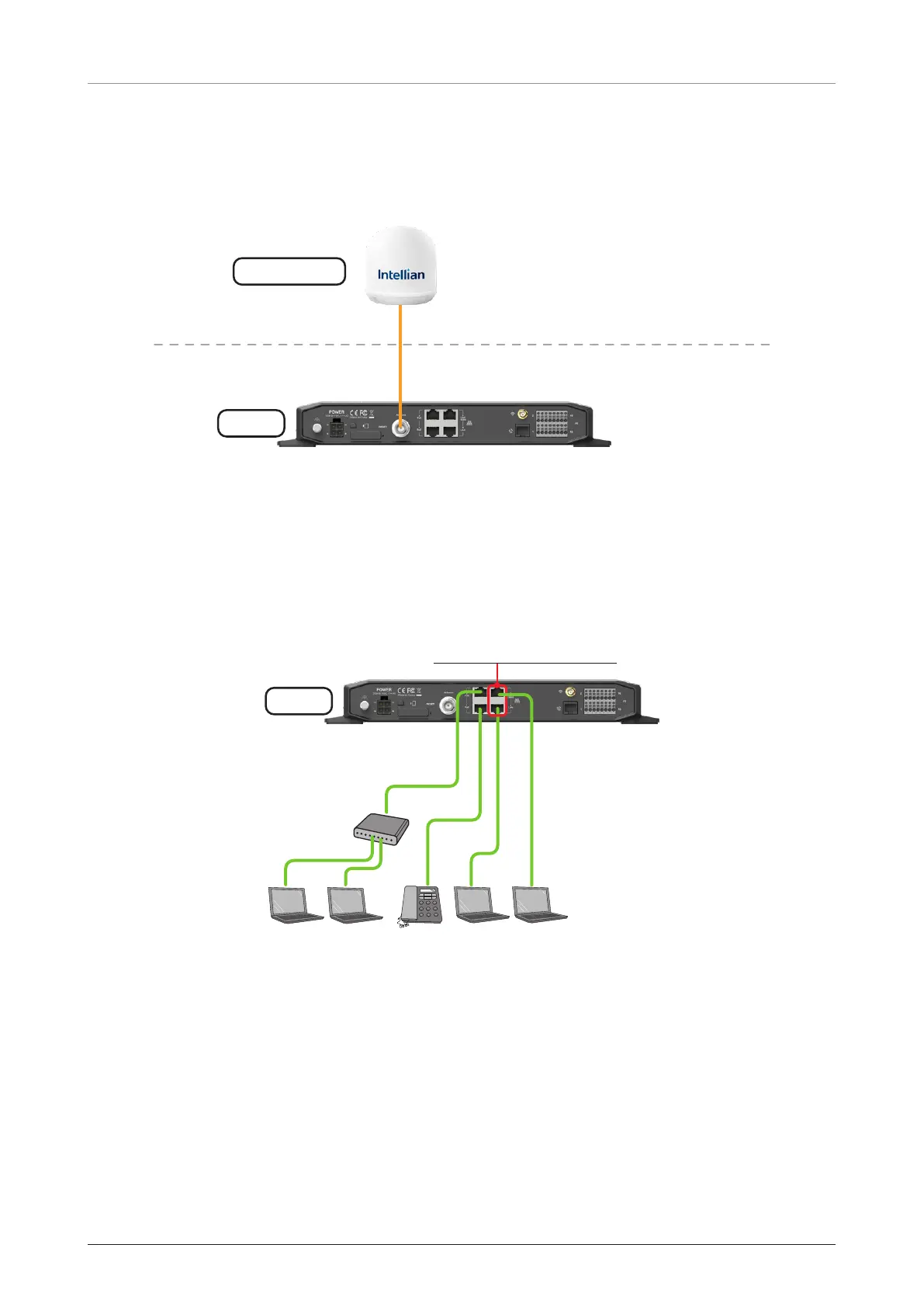

Figure 31: BDU to Antenna Cable Connection
6.6.5 Connecting BDU to Devices using LAN Port (RJ45)
Intellian provides the Ethernet Cable. Connect the Ethernet Cable from the Port 1, Port 2, Port 3, or Port
4 on the back of the BDU to the LAN port on the devices such as SIP Phone or Computer.
Only the Port 1 and Port 2 include Power over Ethernet (PoE).
* The LAN port 3 and LAN port 4 are not supported for Fleet One model.
Switch Router
LAN 2
(RJ45)
LAN 1
(RJ45)
LAN 3
(RJ45)
LAN 4
(RJ45)
BDU
SIP
Phone
PCPC
PC PC
* NOT supported for Fleet One.
Figure 32: BDU to Devices Cable Connection using LAN Port (RJ45)
