Using AptusLX
85

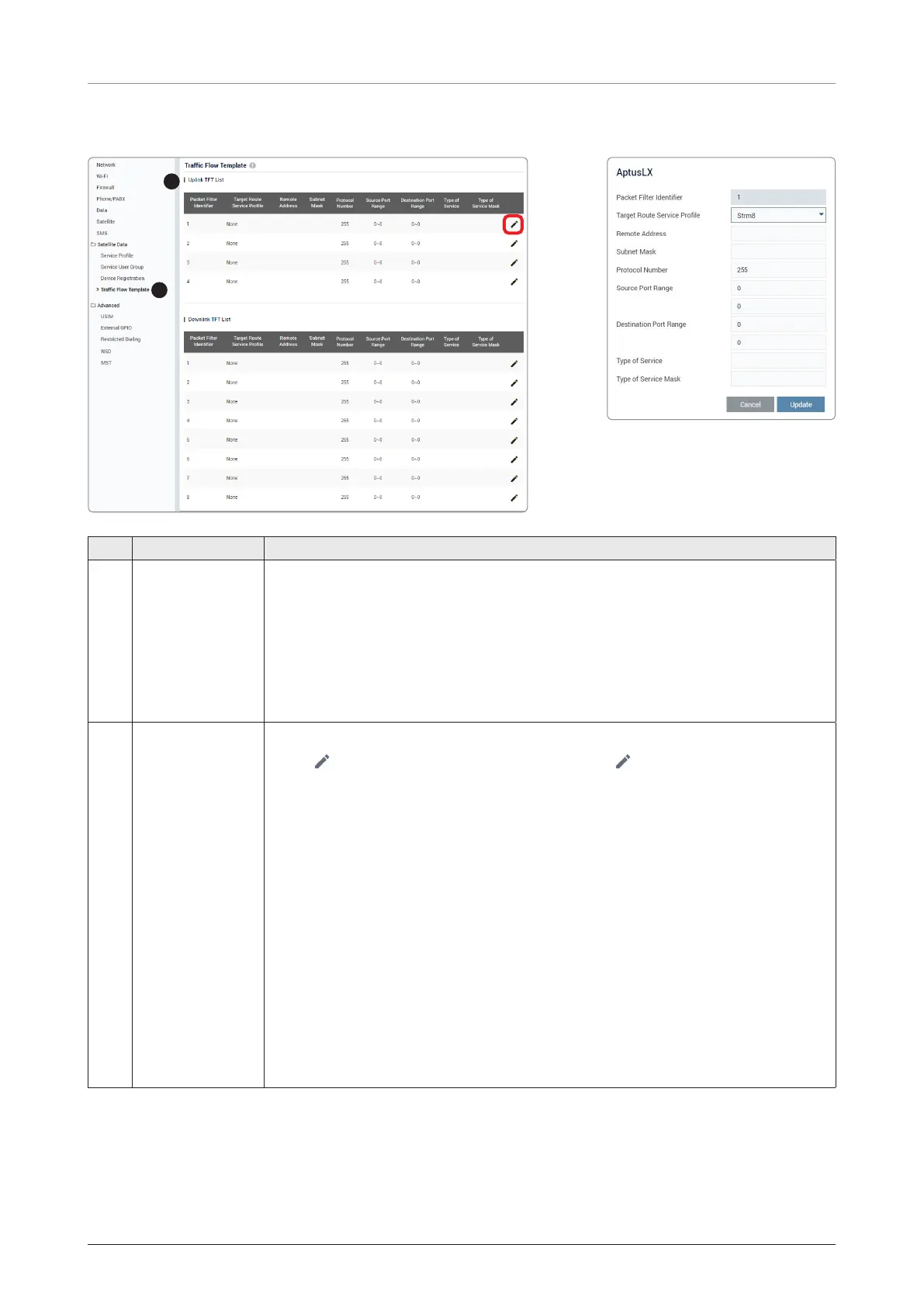

8.8.11 Traffic Flow Template (TFT)
1
2
No. Item Description
①
Traffic Flow
Template
By the Traffic Flow Template (TFT), set up each type of traffic differently for the
best performance.
When you need more than one type of traffic, use both primary and secondary
profiles. Use the traffic template to classify information received from an external
network as the service profile for the BGAN network and your terminal.
When using a secondary profile, assign specific addresses, protocols, and ports
for the system transmission and reception by traffic filtering.
②
Uplink/Downlink
TFT List
Displays Uplink/Downlink TFT list and information.
• Edit( ) button: To edit the profile, click the Edit( ) button. Then the pop-up
window is opened. Enter the details, then click the Update button.
- Packet Filter Identifier: Displays the filter ID.
- Target Route Service Profile: Select the target route service profile from the
drop-down list.
- Remote Address: Enter the remote address (IPv4 IP). Enter a source address
for Downlink TFT and a target address for Uplink TFT.
- Subnet Mask: Enter the subnet mask.
- Protocol Number: Enter an unique number to assign to the protocol used.
TCP is set to 6, and UDP is set to 17. The protocol number determines which
protocol is used by TFT.
- Source Port Range: Enter from and to ports of the range.
- Destination Port Range: Enter from and to ports of the range.
- Type of Service /Type of Service Mask: Set the value between 0 and 255.
Type of Service (TOS) is used to define Quality of Service with an associated
mask.
To Next Page
