jcb 19C-1E User Manual

Operation
Transporting the Machine

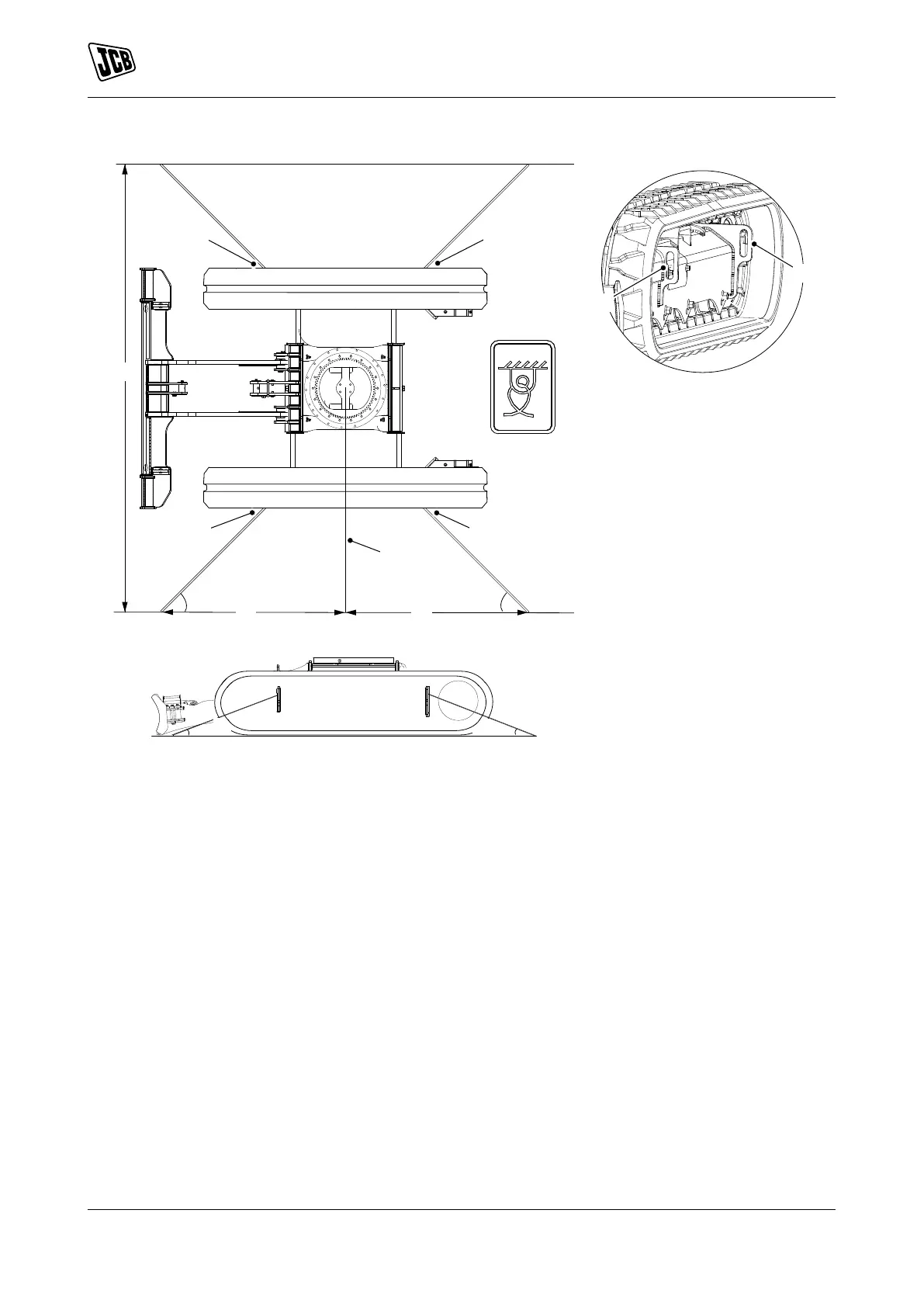

Figure 62. Method 1
A B
A
B
H
C
C
E
F
G
A
B
J
D
D
A Front undercarriage track leg tie-down points B Rear undercarriage track leg tie-down points
C Angle = 25° to 45° D Angle = 9° to 15°
E Length = 1,723mm to 1,027mm F Length = 1,726mm to 1,023mm
G Length = 2,500mm H Slew ring centre line
J Tie down decal
76 9831/8250-4 76
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
