jcb 19C-1E - Page 87

Operation
Transporting the Machine

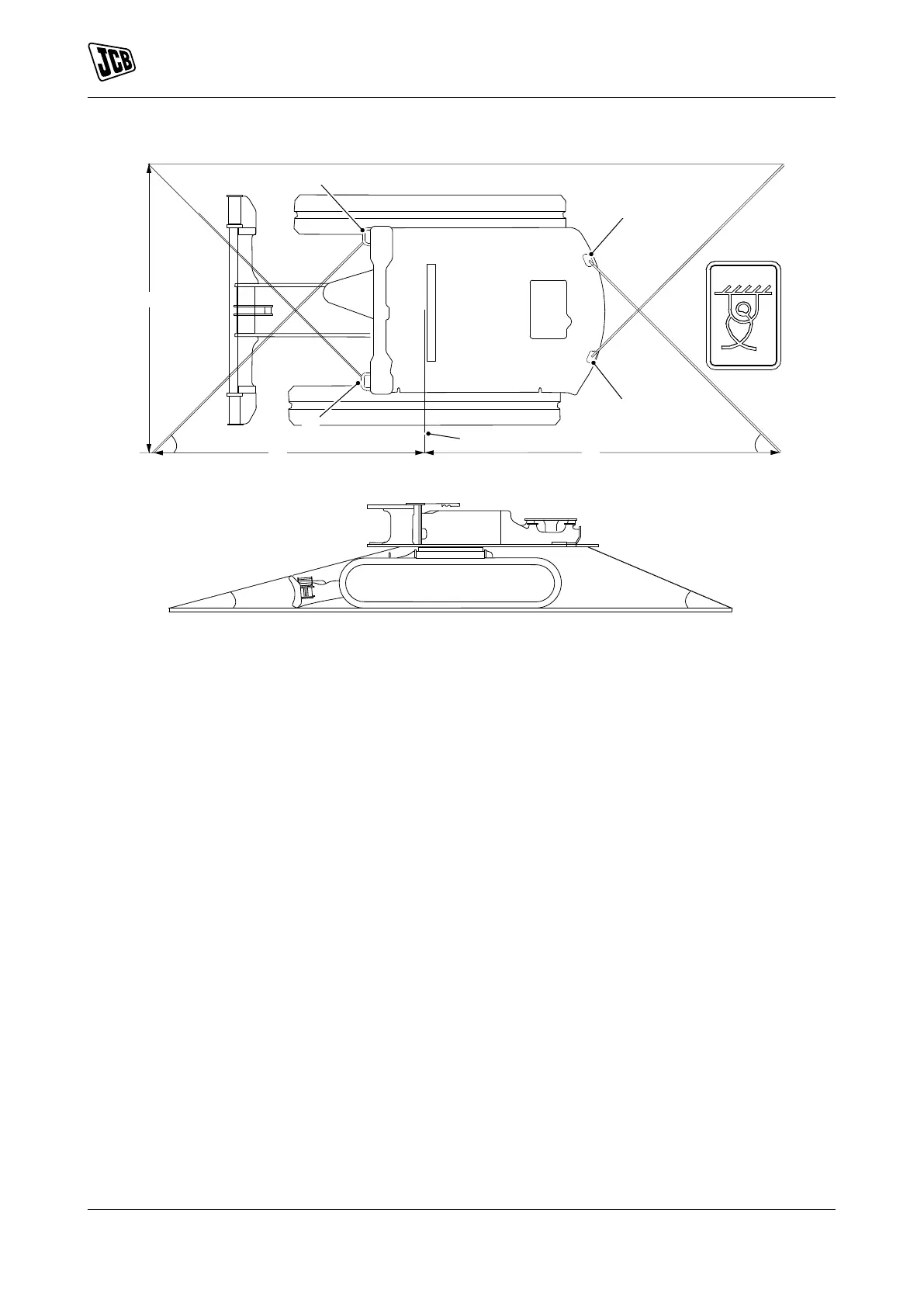

Figure 63. Method 2
F
G
H
E
E
C D
J
K
A
B
B
A
A Front slew spine tie-down points B Rear slew spine tie-down points
C Angle = 35° to 46° D Angle = 45° to 60°
E Angle = 9° to 15° F Length = 2,499mm to 1,846mm
G Length = 2,720mm to 1,943mm H Length = 2,500mm
J Slew ring centre line K Tie down decal
77 9831/8250-4 77
