JOHNSON CONTROLS
146
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y

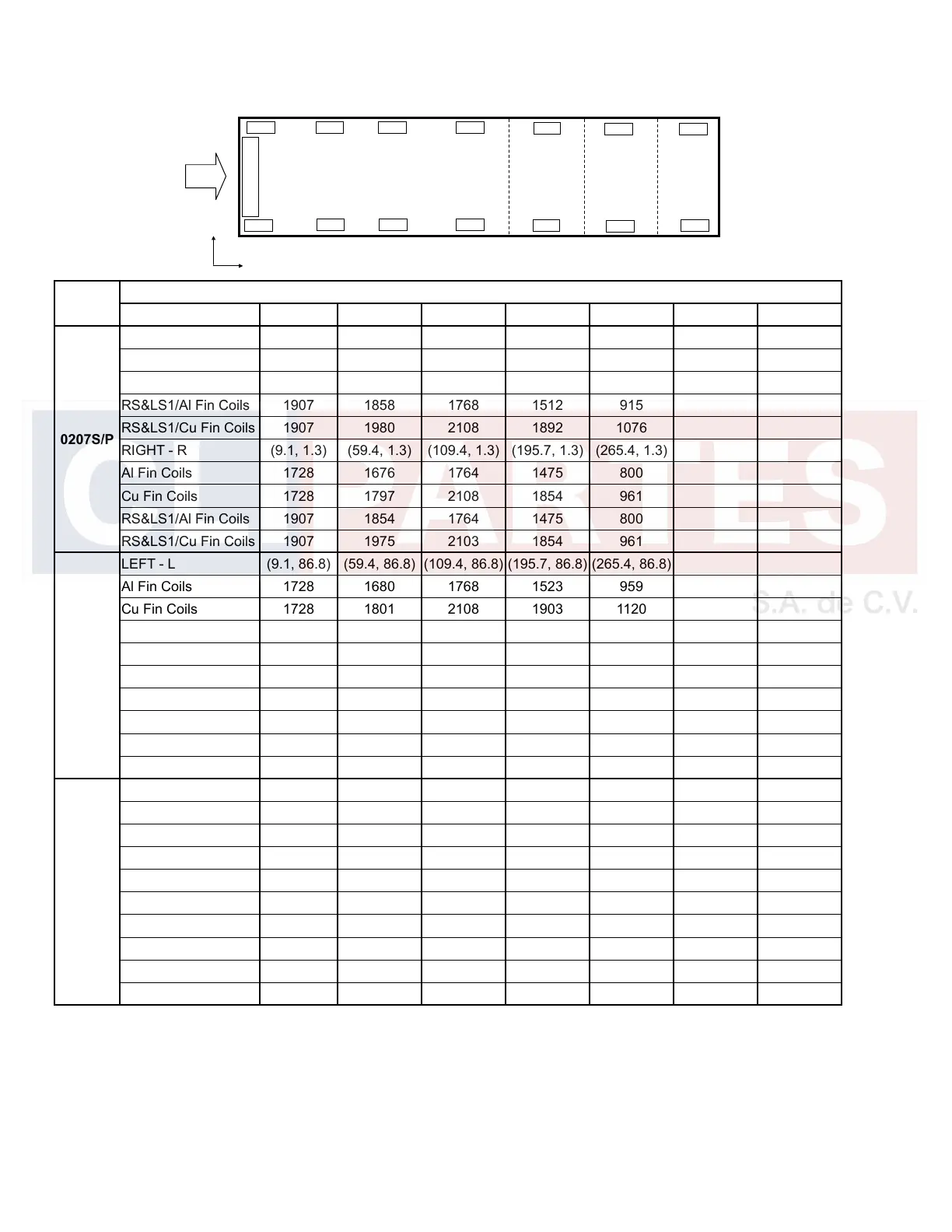

STANDARD EFFICIENCY, ENGLISH (CONT'D)
YCIV
ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0207S/P
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1728 1680 1768 1512 915
Cu Fin Coils 1728 1801 2108 1892 1076
RS&LS1/Al Fin Coils 1907 1858 1768 1512 915
RS&LS1/Cu Fin Coils 1907 1980 2108 1892 1076
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1728 1676 1764 1475 800
Cu Fin Coils 1728 1797 2108 1854 961
RS&LS1/Al Fin Coils 1907 1854 1764 1475 800
RS&LS1/Cu Fin Coils 1907 1975 2103 1854 961
0277S/P
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1728 1680 1768 1523 959
Cu Fin Coils 1728 1801 2108 1903 1120
RS&LS1/Al Fin Coils 1907 1858 1768 1523 959
RS&LS1/Cu Fin Coils 1907 1980 2108 1903 1120
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1728 1676 1764 1519 955
Cu Fin Coils 1728 1797 2103 1898 1116
RS&LS1/Al Fin Coils 1907 1854 1764 1519 955
RS&LS1/Cu Fin Coils 1907 1975 2103 1898 1116
0247S/P
LEFT - L (9.1, 86.8) (59.4, 86.8) (97.2, 86.8) (161.4, 86.8) (210.6, 86.8) (307.9, 86.8)
Al Fin Coils 1728 1638 1248 1160 1261 959
Cu Fin Coils 1728 1728 1488 1435 1609 1199
RS&LS1/Al Fin Coils 1907 1817 1248 1160 1261 959
RS&LS1/Cu Fin Coils 1907 1907 1488 1435 1609 1199
RIGHT - R (9.1, 1.3) (59.4, 1.3) (97.2, 1.3) (161.4, 1.3) (210.6, 1.3) (307.9, 1.3)
Al Fin Coils 1720 1625 1239 1153 1237 955
Cu Fin Coils 1720 1715 1479 1429 1585 1195
RS&LS1/Al Fin Coils 1898 1803 1239 1153 1237 955
RS&LS1/Cu Fin Coils 1898 1894 1479 1429 1590 1195
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
