STANDARD EFFICIENCY, ENGLISH (CONT'D)
YCIV

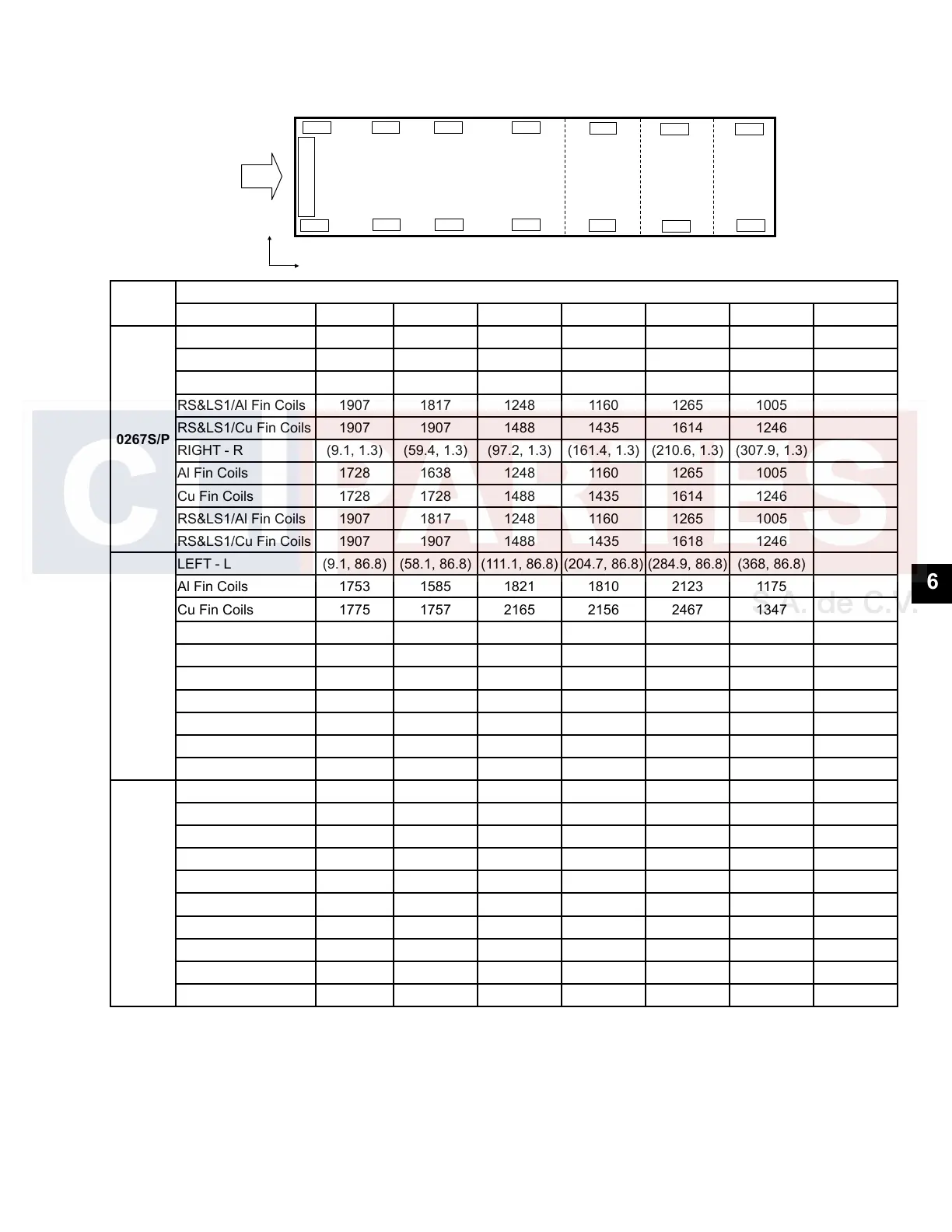

ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0267S/P
LEFT - L (9.1, 86.8) (59.4, 86.8) (97.2, 86.8) (161.4, 86.8) (210.6, 86.8) (307.9, 86.8)
Al Fin Coils 1728 1638 1248 1160 1265 1005
Cu Fin Coils 1728 1728 1488 1435 1614 1246
RS&LS1/Al Fin Coils 1907 1817 1248 1160 1265 1005
RS&LS1/Cu Fin Coils 1907 1907 1488 1435 1614 1246
RIGHT - R (9.1, 1.3) (59.4, 1.3) (97.2, 1.3) (161.4, 1.3) (210.6, 1.3) (307.9, 1.3)
Al Fin Coils 1728 1638 1248 1160 1265 1005
Cu Fin Coils 1728 1728 1488 1435 1614 1246
RS&LS1/Al Fin Coils 1907 1817 1248 1160 1265 1005
RS&LS1/Cu Fin Coils 1907 1907 1488 1435 1618 1246
0287S/P
LEFT - L (9.1, 86.8) (58.1, 86.8) (111.1, 86.8) (204.7, 86.8) (284.9, 86.8) (368, 86.8)
Al Fin Coils 1753 1585 1821 1810 2123 1175
Cu Fin Coils 1775 1757 2165 2156 2467 1347
RS&LS1/Al Fin Coils 1929 1761 1821 1810 2189 1462
RS&LS1/Cu Fin Coils 1885 1933 2165 2156 2533 1634
RIGHT - R (9.1, 1.3) (58.1, 1.3) (111.1, 1.3) (204.7, 1.3) (284.9, 1.3) (368, 1.3)
Al Fin Coils 1753 1596 2407 2414 2635 1179
Cu Fin Coils 1775 1768 2751 2760 2978 1351
RS&LS1/Al Fin Coils 1929 1773 2407 2414 2701 1466
RS&LS1/Cu Fin Coils 1951 1944 2751 2760 3045 1638
0307S/P
LEFT - L (9.1, 86.8) (58.1, 86.8) (111.1, 86.8) (204.7, 86.8) (284.9, 86.8) (368, 86.8)
Al Fin Coils 1753 1585 1953 1978 2304 1184
Cu Fin Coils 1775 1757 2297 2324 2648 1356
RS&LS1/Al Fin Coils 1929 1761 1953 1978 2370 1470
RS&LS1/Cu Fin Coils 1951 1933 2297 2324 2714 1642
RIGHT - R (9.1, 1.3) (58.1, 1.3) (111.1, 1.3) (204.7, 1.3) (284.9, 1.3) (368, 1.3)
Al Fin Coils 1753 1596 2540 2632 2897 1188
Cu Fin Coils 1775 1768 2884 2978 3241 1338
RS&LS1/Al Fin Coils 1929 1773 2540 2632 2963 1475
RS&LS1/Cu Fin Coils 1951 1944 2884 2978 3307 1647
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
