Johnson Controls York YCIV A Series User Manual

JOHNSON CONTROLS
149
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
HIGH EFFICIENCY, ENGLISH
YCIV

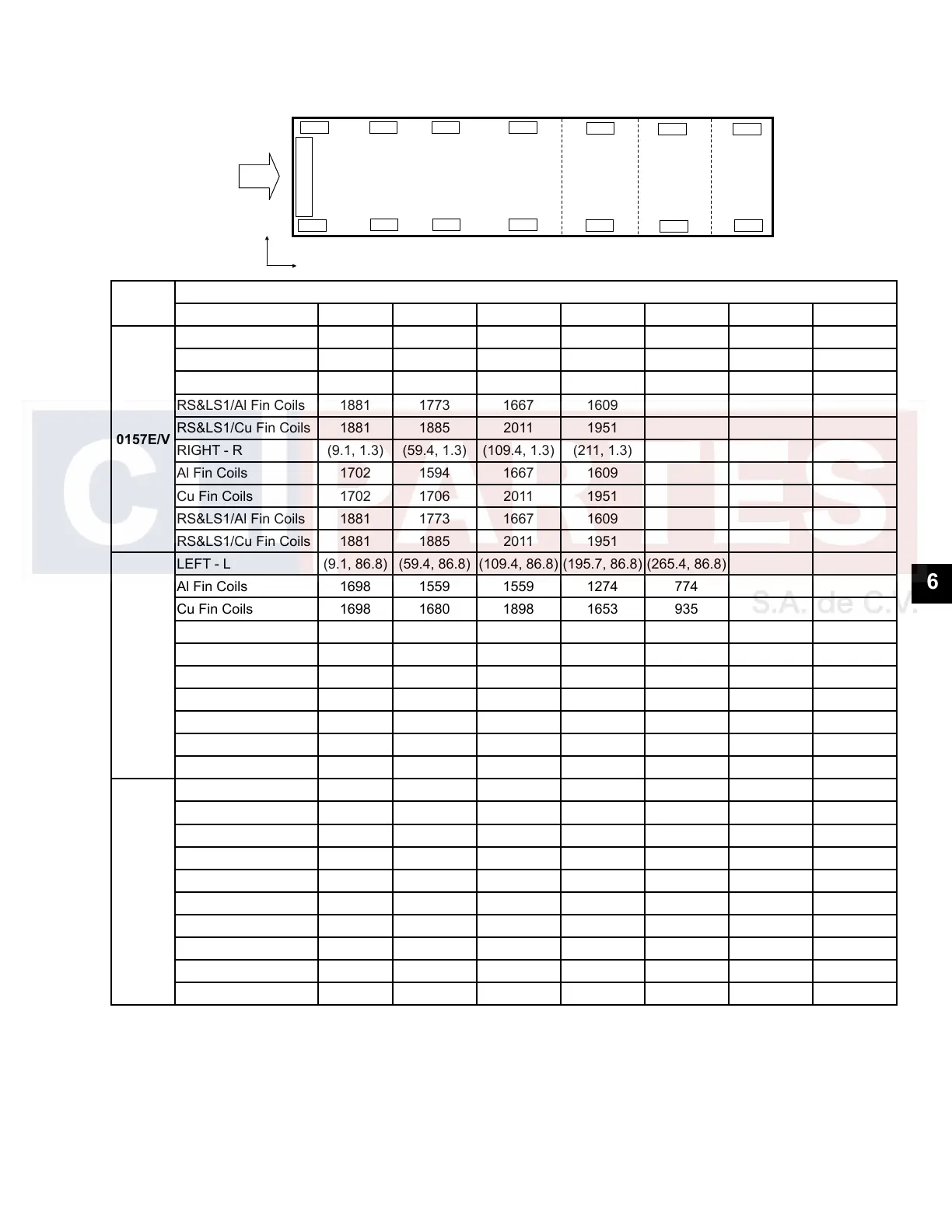

ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0157E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (211, 86.8)
Al Fin Coils 1702 1594 1667 1609
Cu Fin Coils 1702 1706 2011 1951
RS&LS1/Al Fin Coils 1881 1773 1667 1609
RS&LS1/Cu Fin Coils 1881 1885 2011 1951
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (211, 1.3)
Al Fin Coils 1702 1594 1667 1609
Cu Fin Coils 1702 1706 2011 1951
RS&LS1/Al Fin Coils 1881 1773 1667 1609
RS&LS1/Cu Fin Coils 1881 1885 2011 1951
0177E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1698 1559 1559 1274 774
Cu Fin Coils 1698 1680 1898 1653 935
RS&LS1/Al Fin Coils 1876 1737 1559 1274 774
RS&LS1/Cu Fin Coils 1876 1858 1898 1653 935
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1698 1559 1559 1241 664
Cu Fin Coils 1698 1680 1898 1620 825
RS&LS1/Al Fin Coils 1876 1737 1559 1241 664
RS&LS1/Cu Fin Coils 1876 1858 1898 1620 825
0187E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1715 1581 1676 1287 820
Cu Fin Coils 1715 1702 2015 1667 981
RS&LS1/Al Fin Coils 1894 1759 1676 1287 820
RS&LS1/Cu Fin Coils 1894 1881 2015 1667 981
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1698 1561 1561 1287 820
Cu Fin Coils 1698 1682 1900 1667 981
RS&LS1/Al Fin Coils 1876 1739 1561 1287 820
RS&LS1/Cu Fin Coils 1876 1861 1900 1667 981
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
