JOHNSON CONTROLS
150
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
YCIV

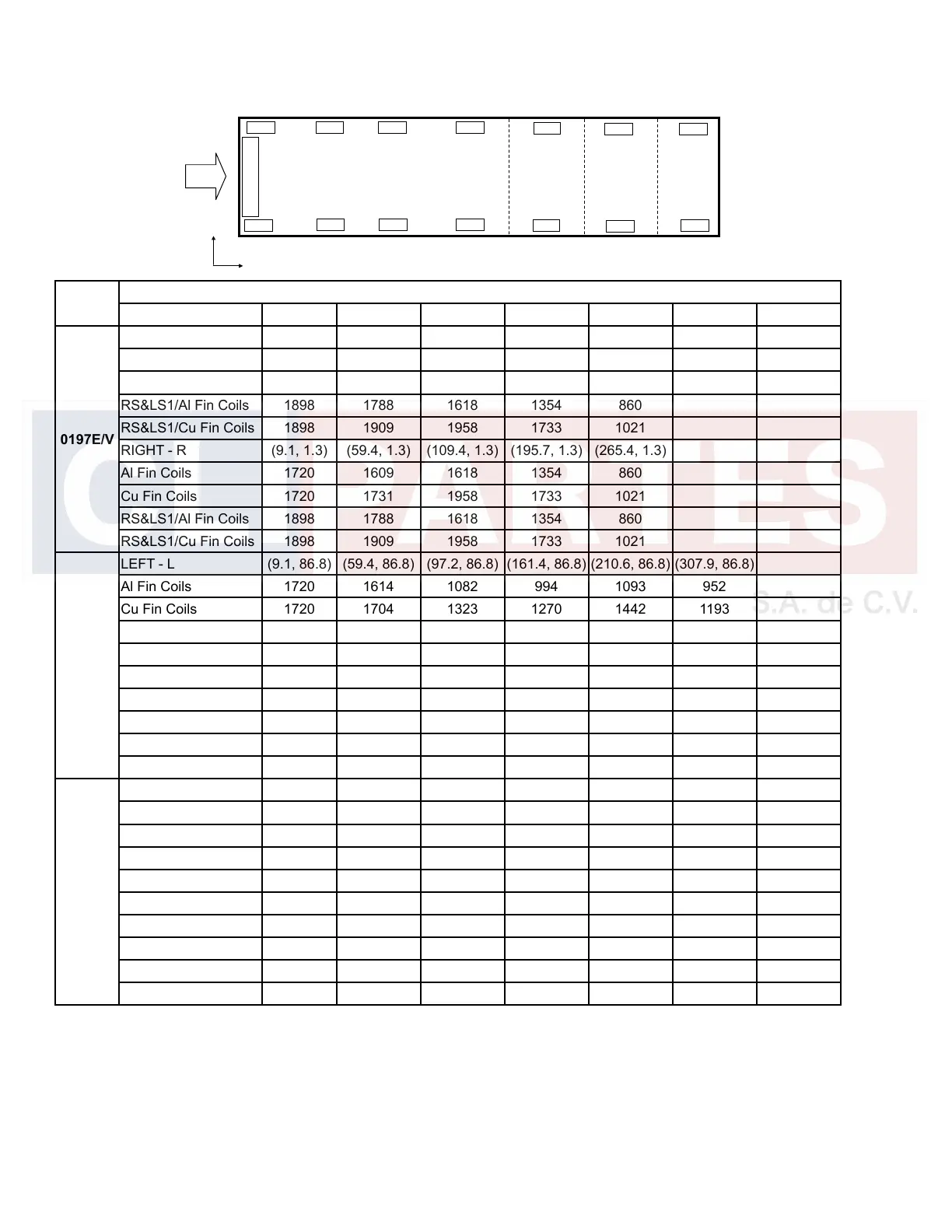

ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0197E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1720 1609 1618 1354 860
Cu Fin Coils 1720 1731 1958 1733 1021
RS&LS1/Al Fin Coils 1898 1788 1618 1354 860
RS&LS1/Cu Fin Coils 1898 1909 1958 1733 1021
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1720 1609 1618 1354 860
Cu Fin Coils 1720 1731 1958 1733 1021
RS&LS1/Al Fin Coils 1898 1788 1618 1354 860
RS&LS1/Cu Fin Coils 1898 1909 1958 1733 1021
0207E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (97.2, 86.8) (161.4, 86.8) (210.6, 86.8) (307.9, 86.8)
Al Fin Coils 1720 1614 1082 994 1093 952
Cu Fin Coils 1720 1704 1323 1270 1442 1193
RS&LS1/Al Fin Coils 1898 1792 1082 994 1093 952
RS&LS1/Cu Fin Coils 1898 1883 1323 1270 1442 1193
RIGHT - R (9.1, 1.3) (59.4, 1.3) (97.2, 1.3) (161.4, 1.3) (210.6, 1.3) (307.9, 1.3)
Al Fin Coils 1720 1614 1082 994 1078 955
Cu Fin Coils 1720 1704 1323 1270 1426 1195
RS&LS1/Al Fin Coils 1898 1792 1082 994 1078 955
RS&LS1/Cu Fin Coils 1898 1883 1323 1270 1431 1195
0227E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (97.2, 86.8) (161.4, 86.8) (210.6, 86.8) (307.9, 86.8)
Al Fin Coils 1720 1616 1085 999 1102 1003
Cu Fin Coils 1720 1706 1325 1274 1451 1243
RS&LS1/Al Fin Coils 1898 1795 1085 999 1102 1003
RS&LS1/Cu Fin Coils 1898 1885 1325 1274 1451 1243
RIGHT - R (9.1, 1.3) (59.4, 1.3) (97.2, 1.3) (161.4, 1.3) (210.6, 1.3) (307.9, 1.3)
Al Fin Coils 1720 1616 1085 999 1102 1003
Cu Fin Coils 1720 1706 1325 1274 1451 1243
RS&LS1/Al Fin Coils 1898 1795 1085 999 1102 1003
RS&LS1/Cu Fin Coils 1898 1885 1325 1274 1455 1243
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
HIGH EFFICIENCY, ENGLISH (CONT'D)
